Optical Systems Division


Marshall Electronics lenses are designed and manufactured with the utmost precision. Our lenses have improved image quality to maximize capability and performance for a variety of applications. Our lenses are compatible with most Marshall cameras. Our lenses are used in the automobile, industrial video, covert security, and surveillance markets. We carry 1.3 megapixel lenses, minature lenses for CCD/CMOS cameras, pinhole lenses and CCTV Lenses for all types of applications.

Print Page
140mm Fl.0 TELEPHOTO SUPER - LOW LIGHT LENS
Ultra-Low Light Lens icon
  140mm TELEPHOTO SUPER - LOW LIGHT LENS

Near IR 1,000nm transmittance

  • 140mm Focal Length
  • 230mm X 135mm X 90mm overall size
  • 2.0° HFOV x 1.5° VFOV on 1/3 sensor camera
  • 3.0° HFOV x 2.0° VFOV on 1/2 sensor camera
300mm F3.75 TELEPHOTO LENS
300mm F3.75 icon
  300mm F3.75

  • Unique Capabilities for law enforcement, military, security applications
120-1200mm ZOOM LENS
120-1200mm Zoom Lens
  V-ZL120-1200 120-1200mm Zoom Lens
5MP 1/2 sensor Visible / IR Corrected 5500 Series M12 / S-Mount / CS-Mount
2 MP VISIBLE - IR CORRECTED MINIATURE LENSES 5500 Series 1/2 sensor 5MP VISIBLE - IR CORRECTED
  • 3.9mm, 5.0mm, 7.6mm focal lengths
  • Visible - IR Corrected design
  • 5MP 1/2 sensor optical design
  • High performance Broadcast quality imaging
  • High performance MTF > 70% at center field; > 63% at full field
2.0 MEGAPIXEL VISIBLE / IR LENSES M12 / S-Mount
2 MP VISIBLE - IR CORRECTED MINIATURE LENSES
  4700 Series M12 2 MP / 3MP VISIBLE - IR CORRECTED MINIATURE LENSES

  • 2.85mm, to 6.0mm focal lengths
  • Visible - IR Corrected design models Available Now
  • 400 - 1,000nm corrected, Near UV / Visible / Near IR optical performance
  • Fixed lens focus throughout Near UV, Visible, Near IR 1,000nm; perfect miniature lens solution for covert Day/Night Camera apps
  • 2 MP / 3MP optical design performance, low distortion
CS MOUNT VARIFOCAL LENSES
CS Mount
  CS Mount Varifocal Lenses with DC Auto Iris

  • 1/2.8 MP CMOS Sensors
  • CS Lens Mount with 4Pin DC Auto-Iris Plug
  • Manual Focus Varifocal Lens
  • Maximum Relative Aperture: F1.4 ~ ∞
  • Angle of View determined by model #
1.3 MEGAPIXEL LENSES
4600 Series CS-Mount
  4600 Series CS-Mount 1.3 MegaPixel Lenses

  • Designed for full 1.3 MegaPixel sensor resolution
  • High-quality glass optics
  • Broad Band Anti-Reflective coating
  • In stock models with and without IR cut filter
MINIATURE LENSES FOR CCD/CMOS CAMERAS
MINIATURE LENSES 4400 Series
MINIATURE LENSES 4300 Series
Low Profile Miniature
Lensholders for Miniature Lenses
  4400 Series  High ResolutionMiniature Fixed Focal Lenses
  NEW HERE NOW 2MP 3.1mm, 3.3mm, 3.8mm short FL models with IR Cut 650nm
Glass Filter Element

  • Engineered for superior optical performance
  • High-quality glass lens elements
  • Aluminum housing M12 x 0.5 thread
  • Recommended for high resolution application requirements
  4300 Series Miniature Fixed Focal Lenses

  • High-quality glass lens elements
  • Metal barrel, M12 x 0.5 thread
  New Low Profile Miniature Lens & Lensholder

  • 6.3mm F2.0 Low Profile lens for OEM applications
  • 5MP CMOS 1/2.5" (MT9P031) optical design
  • Total Track Length <11.0mm
  • IR Cut Filter Coating for color sensors
  • Compatible Low Profile Lensholder
  Lensholders for Miniature Lenses

  • For generic sensors
  • We custom design for any OEM requirement
PINHOLE LENSES
PINHOLE LENSES hight tech
Pan Tilt Mechanism For Zoom Pinhole Lenses
Harsh Environment Zoom Pinhole Lenses
Harsh Environment Zoom Pinhole Lenses
V-PL High Temp Series
High Temperature Lens Extender
High Resolution, Low Light Pinhole Lenses
High Definition IR Corrected Pinhole Lens
Wide Angle and Long Focal Length Pinhole Lenses
  V-ZPL Series High Tech Zoom Pinhole Lenses
  V-ZPT2 Pan & Tilt Mechanism For Zoom Pinhole Lenses
  V-ZPT4
HIGH TEMPERATURE HARSH ENVIRONMENT FURNACE PINHOLE LENS PROCESS VIDEO CLIPS CLICK HERE
NEW 8um – 14um Long Wave Infrared High Temp Pinhole Lens
V-PL-HITEMP-IR-A
V-PL-HITEMP-IR-B

                                                       Infrared High Temp Pinhole Lens Molten Steel Video Clip
V-ZPL High Temp Series High Temperature Harsh Environment Zoom Pinhole Lenses
95mm, 323mm, 450mm, New 561mm OVERALL LENGTH MODELS
High Tempeture lens
NEW 1100mm LENGTH [43"], HIGH TEMPERATURE HARSH ENVIRONMENT PINHOLE LENS.
MOTOR DRIVE AND MANUAL IRIS MODELS.
  V-PL High Temp 600mm OL Series 600mm Overall Length. Various Direction of View Models

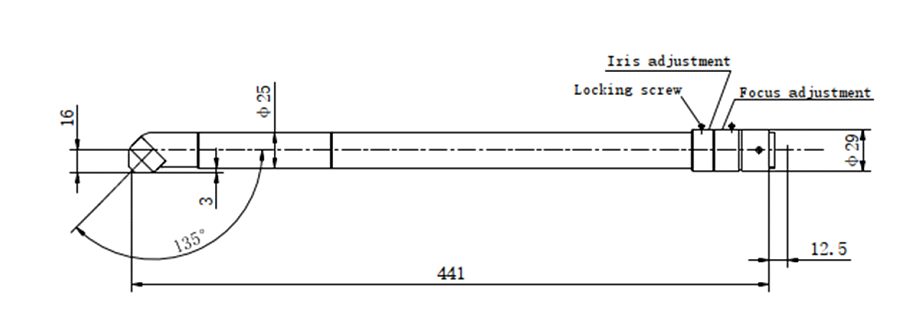

  V-PL High Temp Various Overall Length Direction of View Models 448, 450, 452, 463, 743, 820mm length models
  High Temp Accessories High Temperature Lens Extender
Hight Temperature CS-Mount to SLR Camera Lens Adaptor
    Hight Temperature CS-Mount to SLR Camera Lens Adaptor
  V-PL Series High Resolution, Low Light Pinhole Lenses
  V-PLHD VIS-IR Series High Definition IR Corrected Pinhole Lens
  V-PL-CS Series Wide Angle and Long Focal Length Pinhole Lenses
CCTV LENSES
Economy C-mount Lenses For Auto-Shutter Cameras
  V-45 Series C-mount Lenses For Auto-Shutter Cameras
