High Resolution, Low Light Pinhole Lenses
High Resolution, Low Light Pinhole Lenses

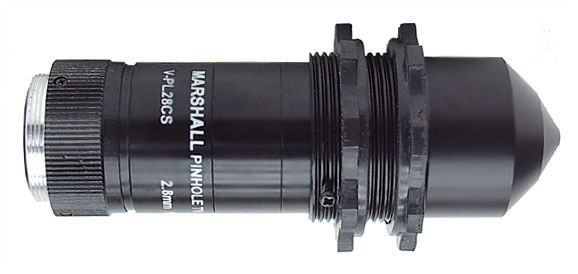

These manual iris pinhole lenses are designed to work with 1/3" format CCD cameras. The lenses use state of the art optical design which allows them to be used for color cameras in low light conditions. New features such as a push-on cap with a built-in mounting clamp allow convenient options for installation. The push-on cap also protects the optics from damage.

Part No.
V-PL28CS V-PL35C V-PL35CS V-PL45CS-1 V-PL60CS
Focal Length
2.8mm 3.5mm 3.5mm 4.5mm 6.0mm
Aperture
f1.0 f1.4 f1.4 f1.8 f1.8
Angular *(H)
82° 70° 70° 57° 44°
Field *(V)
66° 55° 55° 44° 34°
of View *(D)
117° 93° 93° 64° 55°
Dimensions
30 × 100mm 28 × 104mm 28 × 109mm 20 × 97mm 18 × 79mm
Mount
CS C CS CS CS
Pinhole Size
3mm 3mm 3mm 2.5mm 3mm
Cone Depth
13mm 13mm 13mm 9.5mm 11mm
Price
$579.00 $525.00 $525.00 $425.00 $399.00
*Angle of view reflects 1/3" chip. For 1/4" chip, multiply values by 0.75
