1.3 MegaPixel ½ inch CS-Mount Glass Lenses
MegaPixel resolution for security, robotics, imaging, machine vision, OEM applications

CS-Mount Glass Lenses

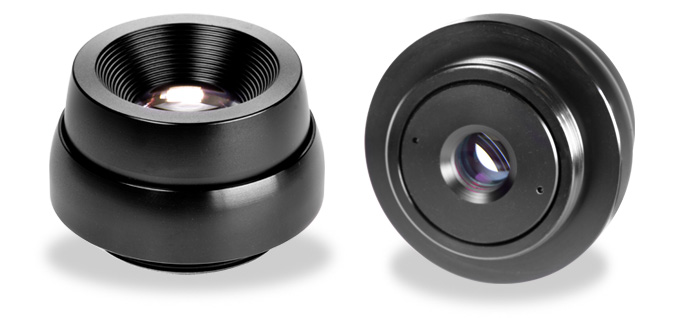

4600 Series CS-Mount 1.3 MegaPixel Lenses


The 4600 MegaPixel lens series are designed for full resolution when used with ½" MegaPixel sensors. High quality glass optics produces superior image quality. Standard in-stock models without filter for monochrome sensors and with 650nm IR cut filter for color sensors. All optical surfaces have Marshall Broad Band Anti-Reflective, (BBAR), coating. Custom design MegaPixel models available for OEM applications. Please contact our technical staff for OEM production pricing.

Click on item Part No. for technical data
Part No. 650nm IR Cut Filter Focal Length Relative Aperture Sensing Area Back Focal Length # of Elements Angular Field of View Min. Object Distance Weight Price
(H) (V) (D)
V-4604-CS No 4.0mm 2.0 1/2" MP 7.4mm 6 95.0° 71.6° 118.2° 40mm 34.0g $69.50
V-4604-CS-IRC Yes 4.0mm 2.0 1/2" MP 7.4mm 6 95.0° 71.6° 118.2° 40mm 34.0g $79.99
V-4606-CS No 6.0mm 2.0 1/2" MP 10.7mm 6 62.2° 47.2° 78.5° 40mm 41.5g $69.50
V-4606-CS-IRC Yes 6.0mm 2.0 1/2" MP 10.7mm 6 62.2° 47.2° 78.5° 40mm 41.5g $79.99
No 8.0mm 2.0 1/2" MP 8.6mm 6 44.8° 33.6° 56.0° 40mm 34.7g $69.50
Yes 8.0mm 2.0 1/2" MP 8.6mm 6 44.8° 33.6° 56.0° 40mm 34.7g $79.99
No 12.0mm 2.0 1/2" MP 10.97mm 6 30.7° 22.9° 39.1° 40mm 42.3g $69.50
Yes 12.0mm 2.0 1/2" MP 10.97mm 6 30.7° 22.9° 39.1° 40mm 42.3g $73.50
