High Resolution Miniature Glass Lenses
Improved resolution for robotics, imaging, machine vision, security, OEM applications

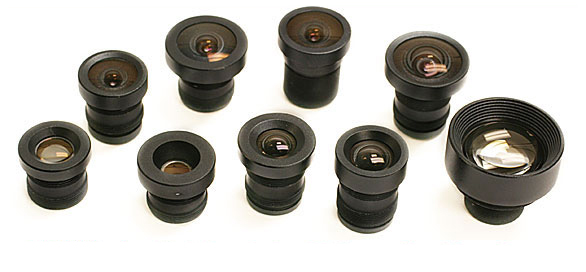

4400 Series High Resolution Miniature Fixed Focal Lenses


4400 Series High Resolution Miniature Fixed Focal Lenses

The NEW 4400 series series lenses have been designed and manufactured with the utmost precision. The 4400 series lenses have improved image quality to maximize the capability and performance for a variety of applications. This series have M12 x 0.5 barrel thread and are compatible with most Marshall cameras. The V-LH04 and V-LH08 lens holders can be used for OEM designs. Custom designed metal or plastic lens holders are available to meet any requirement for OEM applications. Please contact our technical staff regarding applications.





*BFL: Note lens element is recessed in barrel on some models

Click on item Part No. for technical data

Part No. Focal Length Relative Aperture Sensing Area Back Focal Length # of Elements Angular Field of View D1 (mm) D2 (mm) Min. Object Distance Weight Length (mm) L1 (mm) L2 (mm) L3 (mm) L4 (mm) L5 (mm) LT (mm) Price
1/3" CCD 1/4" CCD
(H) (V) (D) (H) (V) (D)
V-4402.1-2.5-HR 2.1mm 2.5 1/3" 4.251 6 132.3° 102.0° 165.7° - - - ø13.2 ø17.0 40cm-∞ 6.1g 18.3 (1.8) 3.8 12.7 - - - 22.3 $48.00
V-4402.3-2.5-HR 2.3mm 2.5 1/3" 5.2 6 125.8° 97.3° 158.3° 91.9° 69.1° 117.1° ø12.2 ø17.0 40cm-∞ 6.3g 16.3 1.2 4.0 (0.6) 4 2.5 3.0 (1.0) 21.2 $48.00
V-4402.5-2.5-HR 2.5mm 2.5 1/3" 5.04 6 113.4° 85.9° 142.7° 83.3° 62.3° 103.9° ø13.8 ø17.0 40cm-∞ 6.8g 20 (2.3) 3.7 5.5 3 2 3.5 24.6 $34.99
V-4402.75-2.0-HR 2.75mm 2.0 1/3" 6.07 5 113.7° 82.3° 153.0° 82.3° 61.9° 104.0° ø11.6 ø15.0 30cm-∞ 5.0g 18.1 (0.79) 3.4 3.5 10.4 - - 24 $39.00
V-4403.0-2.0-HR 3.0mm 2.0 1/3" 5.67 4 94.4° 69.5° 126.0° 69.9° 51.7° 88.2° ø9.8 ø14.0 30cm-∞ 5.9g 15.1 3.9 2.6 3.0 2.0 3.6 20.4 $39.99
V-4403.1-2.0-2MP-IRC [650nm IR Cut Filter] New 2MP 3.1mm 2.0 1/2.9" 5 5 109.6° on 1/2.9 57.7° 135.0° * * * ø8.0 ø14.0 30cm-∞ 6.3g 12.8 3.5 9.3 * * * 17.0 $39.99
V-4403.3-2.0-2MP-IRC [650nm IR Cut Filter] New 2MP 3.3mm 2.0 1/2.9" 6.4 5 103.6° on 1/2.9 61.1° 130.7° * * * ø8.5 ø14.0 30cm-∞ 6.2g 16.6 3.8 12.8 * * * 19.0 $39.99
V-4403.8-1.4-2MP-IRC [650nm IR Cut Filter] New 2MP 3.8mm 1.4 1/2.8" 6.76 6 85.9° on 1/2.8 51.9° 105.0° * * * ø12.2 ø17.0 30cm-∞ 6.3g 22.4 5.5 16.9 * * * 27.5 $39.99
V-4404.3-1.8-HR 4.3mm 1.8 1/3" 6.16 4 73.7° 47.3° 83.1° 49.2° 36.0° 61.1° ø7.6 ø15.0 30cm-∞ 4.0g 15.8 3.3 4.7 3 2.2 2.6 21.6 $39.99
V-4405.6-2.5-HR 5.6mm 2.5 1/3" 8.07 4 51.4° 36.9° 65.3° 38.8° 28.9° 48.5° ø8.4 ø14.0 40cm-∞ 4.0g 17.6 4.8 3.2 3.0 4.0 (1) 1.6 25.2 $39.99
V-4408.0-2.0-HR 8.0mm 2.0 1/3" 7.6 4 33.8° 25.7° 43.0° 24.8° 18.2° 31.35° ø9.0 ø15.0 40cm-∞ 6.0g 13.3 4.0 3.6 2.5 2.0 1.2 19.9 $37.00
V-4412.0-2.0-HR 12mm 2.0 1/3" 6.7 4 22.2° 16.3° 28.0° 17.1° 12.6° 21.2° ø7.4 ø14.0 80cm-∞ 4.5g 12.1 3.0 3.1 2.5 3.5 - 18.1 $39.99
V-4416.0-1.2-HR 16mm 1.2 1/3" 7.2 4 17.2° 13.0° 21.0° - - - ø16.0 ø22.0 30cm-∞ 15.0g 19.3 9.0 3.5 7.9 - - 24.3 $42.00
