Marshall Electronics Optical Division - 4700 Series M12 IR corrected miniature lenses for the security, robotics, imaging, machine vision, OEM applications, automobile, industrial video, covert security, and surveillance markets.

Print Page
2 MP VISIBLE - IR CORRECTED MINIATURE LENSES
2 MP VISIBLE IR CORRECTED MINIATURE LENSES
Price: $57.00 Price: $46.00

2.85mm, 2.9mm, 3.2mm, 3.6mm, 4.0mm, 5.0mm, 6.0mm F2.0 Visible - IR Corrected design

  • Fixed lens focus; 400nm UV, Visible, IR 1,000nm; perfect miniature lens solution for covert Day/Night Camera applications.
  • 2 MP / 3MP optical design performance, low distortion
  • 2 MP/ 3MP image quality in near zero light for covert security and process applications
  • 1/3" sensor size; OV2715 2MP 1/2.7",
    Sony IMX036 3.23MP 1/2.8" sensors
  • M12 Mount
  • Glass optics
  • Anodized aluminum housing
  • RoHS compliant
Click on item Part No. for technical data
Part No.
PN: V-4702.85-3MP-VIS-IR 2.85mm F2.0-3MP VIS-IR Correct Lens

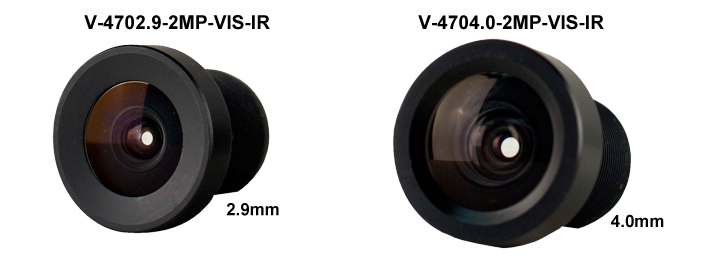

PN: V-4702.9-2MP-VIS-IR 2.9mm F2.0-2MP VIS-IR Correct Lens
PN: V-4703.2-3MP-VIS-IR 3.2mm F2.0-3MP VIS-IR Correct Lens
NEW PN: V-4703.6-2MP-VIS-IR 3.6mm F2.0-2MP VIS-IR Correct Lens
PN: V-4704.0-2MP-VIS-IR 4.0mm F2.0-2MP VIS-IR Correct Lens
PN: V-4705.0-2MP-VIS-IR 5.0mm F2.0-2MP VIS-IR Correct Lens
PN: V-4706.0-2MP-VIS-IR-1 6.0mm F2.0-2MP VIS-IR Correct Lens
