Zoom Pinhole Lenses
Zoom Pinhole Lenses

  • Available in 4-20mm Zoom or 10-50mm Zoom
  • Manual or Motorized Control
  • Used for Many Industrial and Security Applications
  • High Quality Glass Elements
  • For 1/3" CCD with "CS" Mount
  • Can operate from 7-12VDC
  • Removable push-on cap also acts as mounting support

These lenses are ideal for those tough situations where the camera must be hidden and provide any angle of view between 4-20mm or 10-50mm. Although designed for the new 1/3" electronic iris cameras, these lenses can also be used on ½" cameras where they can provide up to a 120 degree horizontal field of view at 4mm. The tip of the pinhole is built-in to a removable push-on cap that also acts as a mounting support and protects the main optical system from damage. The motorized MZ series operate with 7-12VDC to power their zoom motors. Recommended voltage is 9VDC.

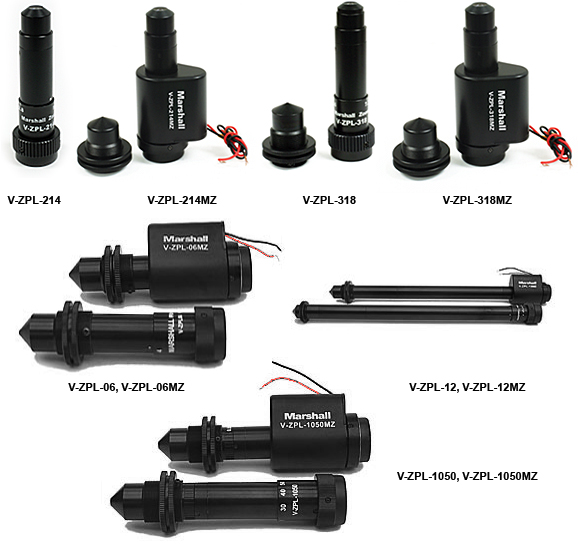

Part No. Range Control F-Stop O.D. × l Price
V-ZPL-214 2.8-14mm Manual f2.5@4mm* 0.79" x 3.56" CALL
V-ZPL-214MZ 2.8-14mm Motorized f2.5@4mm* 0.79" x 3.56" CALL
V-ZPL-318 3.6-18mm Manual f2.5@4mm* 0.79" x 3.76" CALL
V-ZPL-318MZ 3.6-18mm Motorized f2.5@4mm* 0.79" x 3.76" CALL
V-ZPL-06 4-20mm Manual f2.5@4mm* 0.787" × 4" $499.00
V-ZPL-06MZ 4-20mm Motorized f2.5@4mm* 0.787" × 4" $769.00
V-ZPL-12 4-20mm Manual f2.5@4mm* 0.787" × 13" $869.00
V-ZPL-12MZ 4-20mm Motorized f2.5@4mm* 0.787" × 13" $1075.00
V-ZPL-1050 10-50mm Manual f2.5@10mm* 0.787" × 4.5" $579.00
V-ZPL-1050MZ 10-50mm Motorized f2.5@10mm* 0.787" × 4.5" $769.00
*f-stop=focal length/1.6

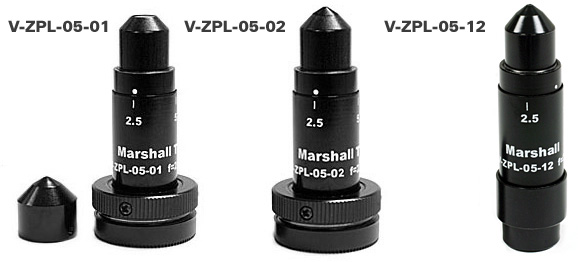

High Tech Zoom Pinhole Lenses
High Tech Zoom Pinhole Lenses

Part No. Focal
Length
Sensor Format
Mount Diagonal
FOV
Dimensions Price
V-ZPL-05-01 2.5mm - 10.0mm 1/4" CS 2w = 84° ~ 25° 19 x 52mm $379.00
V-ZPL-05-02 2.5mm - 10.0mm 1/4" CS 2w = 84° ~ 25° 19 x 52mm $279.00
V-ZPL-05-12 2.5mm - 10.0mm 1/4" M12 2w = 84° ~ 25° 19 x 52mm CALL
*f-stop=focal length/1.6
