HERE, NOW!
1100mm LENGTH [43"], MOTOR DRIVE IRIS AND MANUAL IRIS MODELS HIGH TEMPERATURE HARSH ENVIRONMENT PINHOLE LENS


V-PL-HITEMP-1100-MDI Thermostable Lens [camera not included]

V-PL-HITEMP-1100-MDI Thermostable Lens


V-PL-HITEMP-1100 Thermostable Lens [camera not included]

V-PL-HITEMP-1100 Thermostable Lens

Shown with Marshall CV365-CGB, Compact HD Genlock 3G/HD-SDI/HDI/Audio CameraShown with Marshall CV365-CGB, Compact HD Genlock 3G/HD-SDI/HDI/Audio Camera
* 2.5 Megapixel 1/3-inch CMOS Sensor
* 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel



Parameters:

1. Focal length: ƒ = 3.3mm
2. Image plane format: 1/3"
3. Diagonal visual field angle:2ω = 85°
4. Relative aperture: F3.5 ~ C
5. Minimum Object Distance: 0.3m — ∞
6. Lens front temperature range: -30 ~ +200° C
[Lens only; camera must have cooling capability as needed.]
7. Lens Mount: CS
8. V-PL-HITEMP-1100-MDI Dimensions: nominal φ32 x 1100mm
    * Iris: DC motor, driving voltage: VDC 3 - 6V
8. V-PL-HITEMP-1100 Dimensions: nominal φ32 x 1100mm
    * Iris: Manual

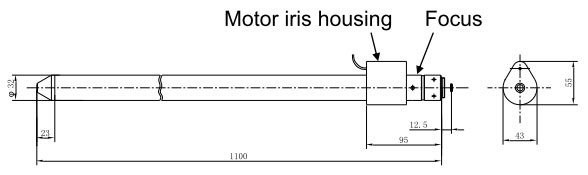

V-PL-HITEMP-1100-MDI Line Drawing: mm

High tem harsh environment pinhole lens diagram High temp lens V-PL-HITEMP-1100-MDI Thermostable Lens

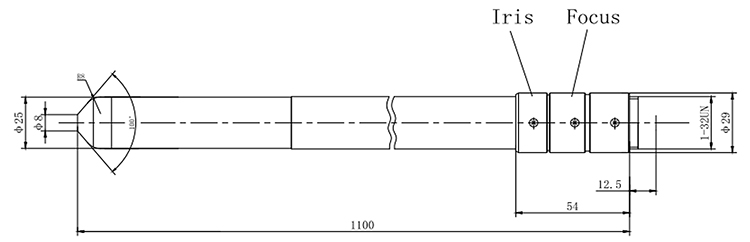

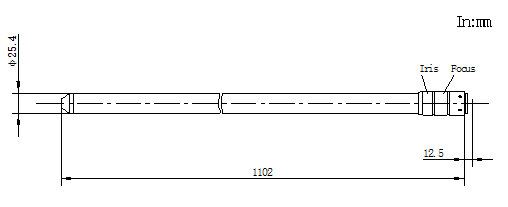

V-PL-HITEMP-1100 Line Drawing: mm

High tem harsh environment pinhole lens diagram High temp lens V-PL-HITEMP-1100 Thermostable Lens
