Wide Angle and Long Focal Length Pinhole Lenses
wide angle and long focal length pinhole lenses

These lenses are the latest generation of pinhole TV lens technology. They provide high resolution and high fidelity images with very little distortion to picture quality. They can see an entire room through a hole less than 0.15 inch. These lenses are designed to work with 1/3", 1/4" and 1/5" format CCD cameras. Most of these pinhole lenses work with either 12mm or C/CS mounts to accommodate miniature and standard size CCTV applications. Focal lengths range from 2.5mm to 70mm ensuring that any covert surveillance application can be met.


s
Optical Pinhole Lenses

Part No.
Focal Length
Aperture
Angular *(H)
Field *(V)
of View *(D)
Dimensions
Mount
Price
V-PL26CS-R
2.6mm
f 2.8
85°
69°
98°
101mm x 38.7mm
CS
$362.00
*Angle of view reflects 1/3" chip. For 1/4" chip, multiply values by 0.75

SPECIFICATIONS

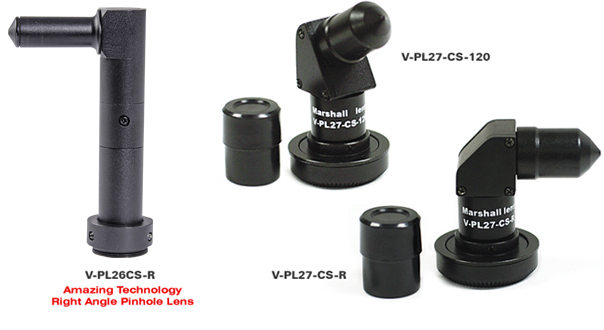

V-PL27-CS-R
2.7mm CS 1/4"
V-PL27-CS-120
2.7mm CS 1/4"
Focal Length
2.7mm
Focal Length
2.7mm
Angular (H)
67
Angular (H)
67
Field (V)
54
Field (V)
54
of View (D)
79
of View (D)
79
Dimensions
43.3mm x 36.8mm
Dimensions
33.8mm x 47.2mm
Mount
CS
Mount
CS or 12 mm

Pinhole Size
.04"

Cone Depth
.25"


vpl60cs vpl100cs vpl100cs
6.0mm
V-PL60CS-12
10mm
V-PL100CS-12
15mm
V-PL150CS-12


vpl300cs vpl450cs vpl700cs
30mm
V-PL300CS-12
45mm
V-PL450CS-22
70mm
V-PL700CS-22

Part No. V-PL60CS-12 V-PL100CS-12 V-PL150CS-12 V-PL300CS-12 V-PL450CS-22 V-PL700CS-22
Focal Length 6.0mm 10mm 15mm 30mm 45mm 70mm
Aperture f 2.8 f 2.8 f 11 f 11 f 8.0 f 12
Angular *(H) 44° 27° 18°
Field *(V) 33° 20° 14°
of View *(D) 53° 33° 22° 11° 7.6°
Dimensions 12 × 18.5mm 12 × 21.5mm 12 × 25.5mm 12 × 38.5mm 22 × 56mm 22 × 78.5mm
Mount CS or 12mm CS or 12mm CS or 12mm CS or 12mm CS only CS only
Price $50.00 $50.00 $50.00 $50.00 $72.00 $72.00
*Angle of view reflects 1/3" chip. For 1/4" chip, multiply values by 0.75
