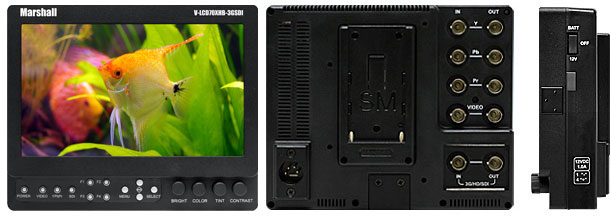

The V-LCD70XHB-3GSDI is a 7.0" high-definition widescreen LCD monitor featuring our completely digital TFT-MegaPixel active matrix LCD platform. With built-in focus assist and false color filters, this monitor is ideal as a light-weight high resolution viewfinder or focus-assist monitor. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4X over-sampling and 5-line super-adaptive 2D comb filtering of composite signals.


V-LCD70XHB-3GSDI

7" High Brightness Field / Camera-Top LCD Monitor with 3G-SDI Loop-Through

Owner's Manual (PDF) Spec Sheet (PDF)

  • High resolution 800 x 480 LCD panel
  • Manual Gamma Adjustment
  • Adjustable Backlight
  • Image Flip
  • 1/4"-20 mounts on all sides
    (requires V-LCD70TMB-02 for side mount)
  • Robust Power switch
  • Rugged front panel
  • Variety of Markers, including user-adjustable
  • False Color On/Off
  • Peaking Filter On/Off
  • RGB Check Field / Field Detect
  • 15:9, 16:9, 4:3, Pixel-to-Pixel modes
  • 4 user-configurable function buttons
  • Scratch Resistant Protective Screen
  • RGB gain and bias control
  • Variety of User-Replaceable
    Battery Adapters available

The V-LCD70XHB-3GSDI is a portable monitor that is a perfect solution for video professionals shooting outdoors or in bright lighting conditions. Don't be fooled by higher screen resolution or larger-sized monitors. Our picture performance, feature set, customer service, and experience is why the industry's leading videographers and camera operators prefer Marshall over the competition. Our product is designed, engineered, and assembled in the USA.

The V-LCD70XHB-3GSDI has been upgraded with even more features and versatility, but without additional cost. Major features include cast metal front panel, adjustable backlight and markers, manual gamma adjustment, Image Flip, 1/4"-20 mounting on all sides, and a robust power switch.

This 7" monitor offers standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control, 4-pin XLR power jack, and optical grade polycarbonate screen protection. Two other major features include Marshall's industry leading FALSE COLOR and PEAKING Filters. These units also offer the ability to adapt up to nine different battery configurations for providing mobile operation in the field. This option provides flexibility when using different cameras or configurations. Our large selection of battery adapters can be interchanged (or "swapped" out) by the end-user.

Available V-LCD70XHB-3GSDI monitor configurations
V-LCD70XHB-3GSDI 7" on Camera High Brightness Monitor with Composite,
Component, 3GHD/SDI Inputs and No Battery Mount
V-LCD70XHB-3GSDI-AB 7" on Camera High Brightness Monitor with Composite,
Component, 3GHD/SDI Inputs and Anton Bauer Battery Mount
V-LCD70XHB-3GSDI-CM 7" on Camera High Brightness Monitor with Composite,
Component, 3GHD/SDI Inputs and Canon Battery Mount
V-LCD70XHB-3GSDI-JM 7" on Camera High Brightness Monitor with Composite,
Component, 3GHD/SDI Inputs and JVC Battery Mount
V-LCD70XHB-3GSDI-PM 7" on Camera High Brightness Monitor with Composite,
Component, 3GHD/SDI Inputs and Panasonic Battery Mount
V-LCD70XHB-3GSDI-PV 7" HDSDI on Camera High Brightness Monitor with Composite,
Component, 3GSDI/SDI Inputs with PV Battery Mount
V-LCD70XHB-3GSDI-SB 7" on Camera High Brightness Monitor with Composite,
Component, 3GHD/SDI Inputs and Sony B Battery Mount
V-LCD70XHB-3GSDI-SL 7" on Camera High Brightness Monitor with Composite,
Component, 3GHD/SDI Inputs and Sony L Battery Mount
V-LCD70XHB-3GSDI-SM 7" on Camera High Brightness Monitor with Composite,
Component, 3GHD/SDI Inputs and Sony M Battery Mount
V-LCD70XHB-3GSDI-VM 7" on Camera High Brightness Monitor with Composite,
Component, 3GHD/SDI Inputs and V-Clip Battery Mount

Guy Cochran of DVCreators.net demonstrates Monitor Calibration and Marshall features

DSLR RATIO ADJUSTMENT

Marshall's new DSLR RATIO ADJUSTMENT feature allows users to scale video that does not completely fill the monitor's screen when connected via HDMI in "Record" mode on certain Canon DSLRs. This new feature allows the user to scale their DSLR video output, fill the screen, and eliminate black pillar bars with a variety of options to choose from. The user has the option of choosing between NORMAL, 3:2, 16:9, and FULL SCREEN. The DSLR RATIO ADJUSTMENT feature can be programmed to one of the front panel's four-button presets for quick and easy access.

Ratio Screen Samples

False Color Filter

Color filter scale

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people).


Filter display samples
OVEREXPOSED
Overexposed objects will display as RED
UNDEREXPOSED
Underexposed objects show as
DEEP-BLUE to DARK-BLUE
PROPERLY EXPOSED
Properly exposed objects will display elements of GREEN and PINK

Peaking Filter

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, all color will be removed from the display and a black-and-white image will remain. The internal processor will display RED color on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have RED colored edges. This indicates that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has RED colored edges. Please note that this feature is most effective when the subject is properly exposed and contains enough contrast to be processed.

Focus filter samples

Battery Compatibility Chart


Arm Mounts
Articulating arms provide a flexible way to mount a monitor onto your camera V-NF1108-CA
(1/4”-20 / 1/4”-20)
$167.00*
V-DG1108-CA
(1/4”-20 / 1/4”-20)
$184.00*
V-MG6145-CA*
(1/4”-20 / 3/8")
$212.00*
Articulating arms provide a flexible way to mount a monitor onto your camera. Supports monitors up to 10". Click Here for more mounting accessories.
*May require additional accessories.
M-SM02Camera Hot Shoe Mount

Camera 1/4" Hot Shoe Mount

V-H700Hood for the V-LCD56MD

Sun Hood for 7" Monitor

V-LCD-HI Camera Indicator

Camera Horizon Indicator. An optional adapter that allows the user to accurately position their equipment for stable and level shooting.
Click here for more info >

V-LCD-TBCamera Tally box

This camera-top tally box is an optional adapter that provides both Front and Rear tally functionality to Marshall's portable field monitors.
Click here for more info >


V-LCD70XHB-3GSDI specifications
Panel Number of Panels 1
Panel Size 7.0” Diagonal
Resolution 800 x 480
Aspect Ratio 15:9
Active Area 152.4 x 91.44 mm
Type LCD Panel
Brightness 800 cd/m²
Contrast 600:1
Color Gamut YUV, RGB
Viewing Angles (CR>=10) 170° x 170°
Backlight type LED
Adjustable Backlight Yes
Features Video Formats 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
H/V Delay Yes
Display Flip Yes
Under scan Yes
False Color Yes
Peaking Filter Yes
HDMI CSC Auto No
HDMI Ratio Auto No
Pixel to Pixel Yes
Pre-set Gamma points Yes
Self-Sensing Yes
Modular Input Slot No
Re-clocked/Re-Shaped Yes

Input Connectors
CVBS Yes
YPbPr Yes
SD-SDI Yes
HD-SDI Yes
3G-SDI Yes
HDMI No
DVI-I No
Output Connectors CVBS Yes
YpbPr Yes
SD-SDI Yes
HD-SDI Yes
3G-SDI Yes
HDMI No
Input Status Display Yes
Control Inputs Tally / GPI No
RS-485/422 w/ Loop Through No
Ethernet No
Controls on front Panel Yes
User-Defined Function Buttons Yes
RotoMenu™ Control No
Handles No
Power Voltage 12V DC (7.5V DC-18V DC)
Consumption 1.20 Amp @ 12VDC (14W Max)
Power Switch Yes
Connector 4-Pin Male XLR
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 32° F to 95° F
Storage Temperature (C°) -14° F to140° F
Unit dimensions 7.03” x 5.67” x 2.17”
Weight (Main Body) 1.60 lbs
Mounting ΒΌ”-20 Mounting Bracket
Protective screen Yes
Available Battery Adapter Configurations User-Replaceable Battery Adapters
"CM" - (Canon), "JM" - (JVC), "PM" - (Panasonic), "PV" - (Panasonic), "SB" - (Sony B series), "SL" - (Sony L series), "SM" - (Sony M series), "AB" - (Anton/Bauer), "VM" - (V-Mount)

* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
