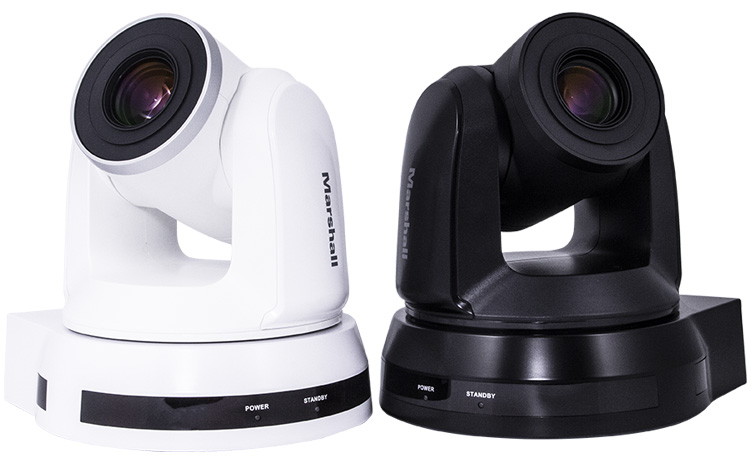

Full HD Broadcast PTZ Conference Camera with multiple outputs: HDSDI (3G), HDMI, DVI, Composite Outputs

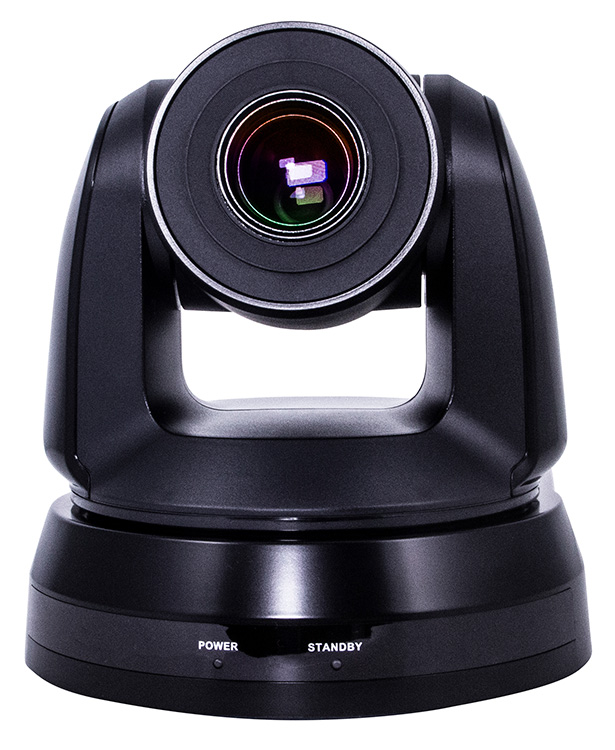

CV620-IP (Black)

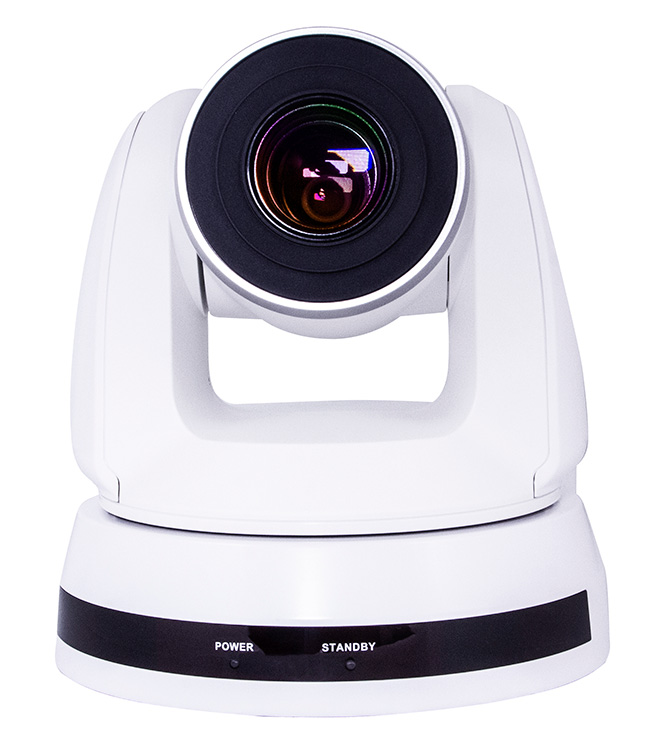

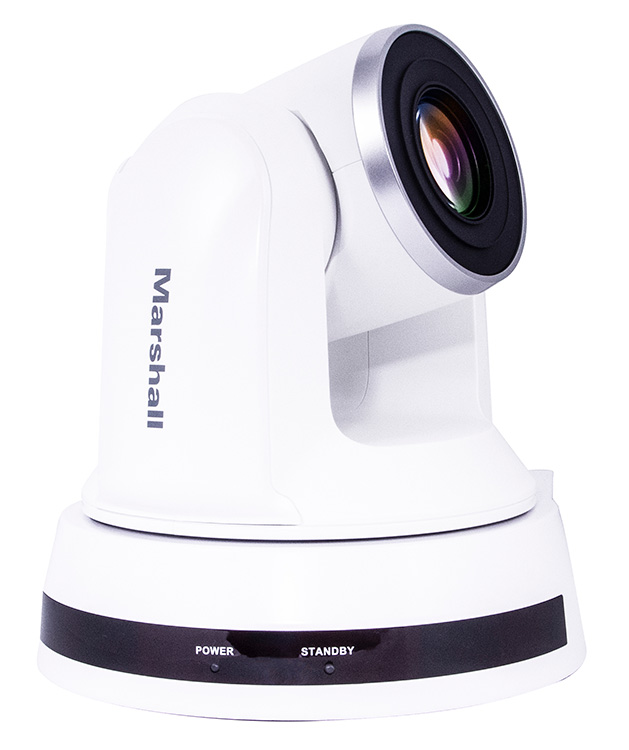

CV620-IPW (White)

HD PTZ Camera with IP,
3G/HD-SDI, HDMI

Quick Installation GuideDownload ManualCut SheetQuick Setup of VS-PTC-200 controller with CV620 PTZ camera RS232 to CAT Cable ConnectorsRS-232/422 Wire DiagramsRS232 Command ListWall Mount InstallationCrestron Control ModulesExtron Control Drivers Download Latest Firmware VHB110 Download Latest Firmware Video Management SoftwareNDI HX Upgrade InstructionsDownload Images
Full HD PTZ Conference IP Camera Rear view
  • 2 Megapixel 1/2.8-inch Sensor
  • Full-HD: 1920x1080i, 1920x1080p, 1280x720p
  • High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
  • 20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
  • Wide Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt
  • Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor allows for quality transitions
  • TRS Audio Line/Mic level select (2.5V to mic)
  • IP (H.264), 3G/HD-SDI and HDMI simultaneous outputs
  • RS422/RS232 Remote Control Interface at High Comm Speeds
  • Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
  • Compatible with integrated video conferencing systems
  • IP (H.264) Ethernet connection allows for compressed Video, PoE (48V) and Control over one cable

REAR OUTPUTS:

  • 1. USB port for FW updates
  • 2. 12V Power input
  • 3. IP NETWORK Ethernet (PoE/H.264/Control)
  • 4. HDMI Type-A Output
  • 5. 3G/HD-SDI Output
  • 6. OUTPUT Selection Switch
  • 7. IR SELECT
  • 8. TRS Audio In
  • 9. RS-232 loop-through OUT
  • 10. RS-232 INPUT port
  • 11. RS-422 port

VS-PTC-IP Preferred Controller for Marshall PTZ Cameras

VS-PTC-IP

Preferred Controller
for Marshall PTZ Cameras



Marshall Electronics Broadcast ProAV PTZ Camera is built around a professional grade 2 Megapixel 1/2.8-inch sensor with a smooth 20x Optical Zoom (4.7~94mm) block. Versatile outputs such as 3G/HD-SDI, HDMI Type-A, and IP (H.264) which allows for one Ethernet cable to contain compressed H.264 Video, PoE (48V) and IP Control. Remote operation and control via VMS (Video Management Software), Web Browser GUI, or RS232/RS422 using common protocols make it compatible with most integrated control systems. Broadcast adjustable settings such as White Balance, Exposure, Iris, Gamma, Gain, Black Level and other operational adjustments create tremendous flexibility of use. Applications served would include Remote Confidence Monitoring, Corporate, Broadcast, Education, Worship, Healthcare, Medical, Government, Courtroom, Entertainment, Music and a variety of Broadcast ProAV studio workflows using IP, 3G/HD-SDI, or HDMI.


CV620-IP Applications:

ProAV • Corporate Boardrooms • Remote Learning • House of Worship • Courtroom • Healthcare • Government • Concerts • Presentations • Broadcast Multimedia
CV620-IP specifications
Sensor 1/2.8" 2MP CMOS
Video Output
1920 x 1080p @ 60, 59.94, 50, 30, 29.97, 25fps
1920 x 1080i @ 60, 59.94, 50fps
1280 x 720p @ 60, 59.94, 50fps
Optical Zoom 20x
Panning Angle -170° ~ +170°
Tilting Angle -30° ~ +90°
Preset Positions 128
Video Output (HD) Interface HDMI, 3G-SDI, Ethernet
Network Interface ONVIF / RTSP Streaming / RTMP Streaming
PoE+ 802.3at
Camera Control Interface/Protocol RS-232 / RS-422 / Ethernet
Video S/N Ratio > 50dB
Shutter Speed 1/1 ~ 1/10,000 sec
Focal Length f = 4.7 ~ 94 mm
3DNR Yes
Horizontal Viewing Angle 63°
Aperture F1.6 ~ F3.5
Minimum Illumination 1.0 lux (F1.6, 50IRE, 30fps)
Minimum Object Distance 300mm (Wide) ~ 1500mm (Tele)
Gain Control Auto, Manual
White Balance Auto, Indoor, Outdoor, One-Push, Manual
Exposure Control Auto, Manual
Focus System Auto, Manual
Image Flip Yes
Video Compression MJPEG, H.264 / SVC
Weight 2 kg (4.4 lbs)
PTZ IP Camera Controller

VS-PTC-200

PTZ IP Camera Controller
Compatible Controller for all CV620 series, CV612 series, and CV610 series cameras.
Read more
PTZ Keyboard Controller Preferred Controller for CV620 PTZ Cameras

VS-PTC-200

PTZ Keyboard Controller.
Preferred Controller for CV620 PTZ Cameras.
Read more
Wall mount with wire conceal

CV6XX-WM (Black)
CV6XX-WMW (White)

Wall mount with wire conceal.
Quick Wall Mount Installation Guide
26-port POE Switch for IP Cameras, Encoders and Decoders

VS-SW-100

24 port 10/100/1000Mbps PSE with
2 port Gigabit SFP Switch
Read more

CV620-CABLE-07 Extender Connection

RS232 to CAT5 Cable Connectors

CV620-CABLE-06 Extender Connection

RS232 to CAT5 Cable Extender Connection
* The CV620-CABLE-06 cannot be connected with a Computer and a VS-PTC-200 Controller at the same time
