Marshall CV574 Miniature UHD Camera NDI HX3 and HDMI

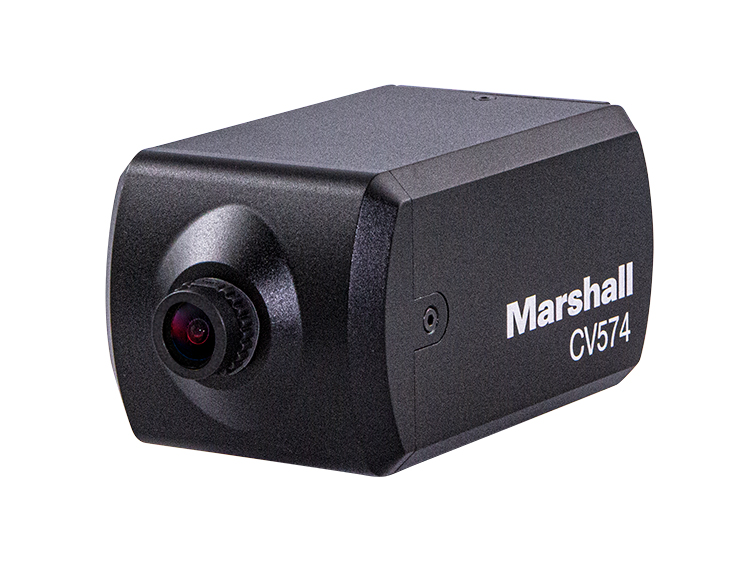

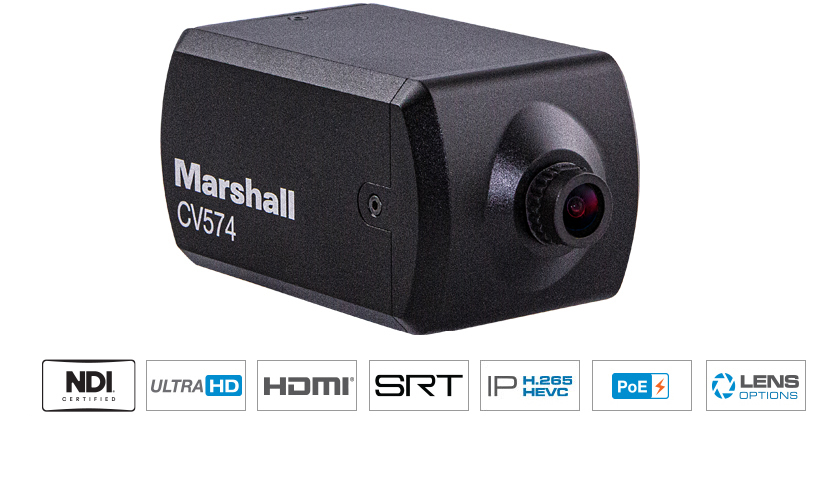

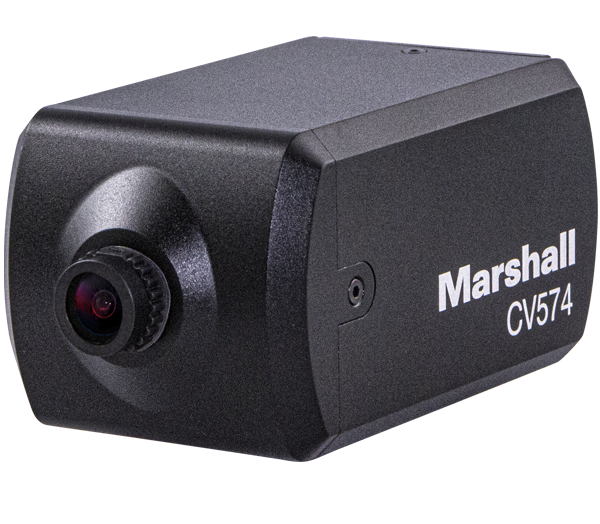

The Marshall CV574 network streaming POV camera is built around a Sony UHD sensor with over 8.46 million pixels. The miniature CV574 delivers exceptional 4K (Ultra-HD) video performance via HDMI and ethernet IP interface supporting the ultra-efficient NDI HX3, SRT, HEVC codecs from a durable aluminum alloy build with rear I/O protection wings. The Ultra-HD Sony sensor offers crystal clear and rich color accurate video with improved low light sensitivity, refined remote adjust capability and flexible interchangeable lenses. * All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

OVERVIEW
SPECIFICATIONS
LENS OPTIONS
OPTIONAL ACCESSORIES
HOW TO VIDEOS

NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec

Featuring the extremely efficient NDI HX3 codecs gives the miniature CV574 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more.

Interchangeable M12 Lenses

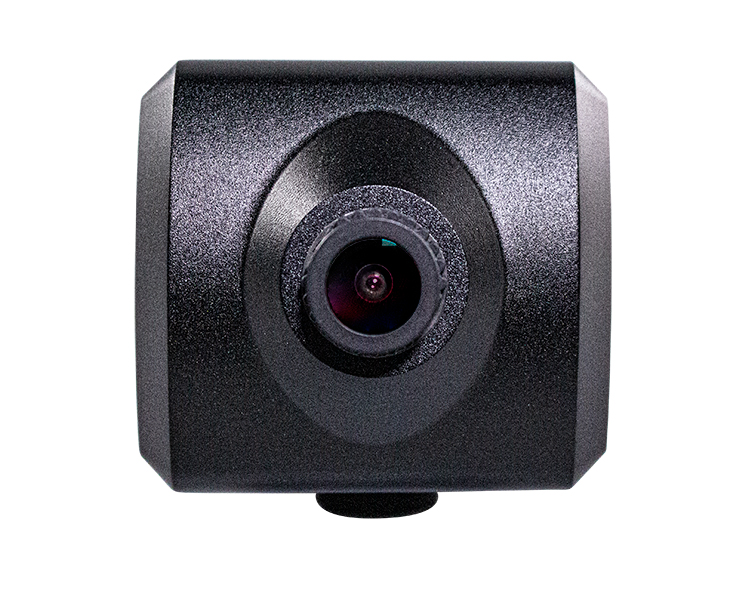

Marshall CV574 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.

Durable, Flexible, Powerful

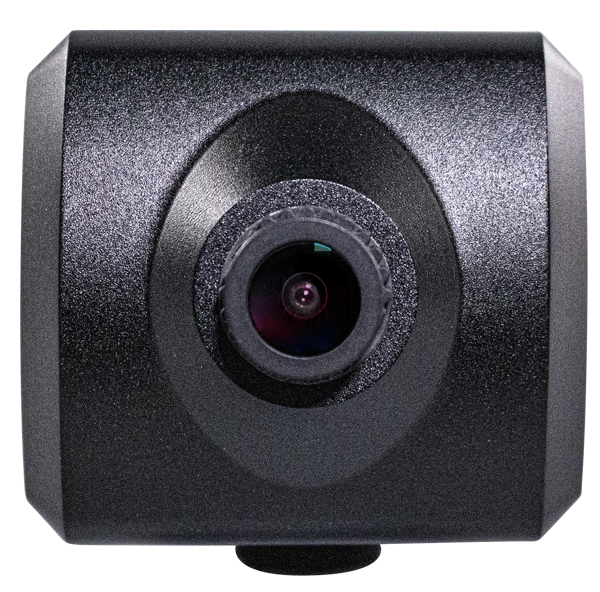

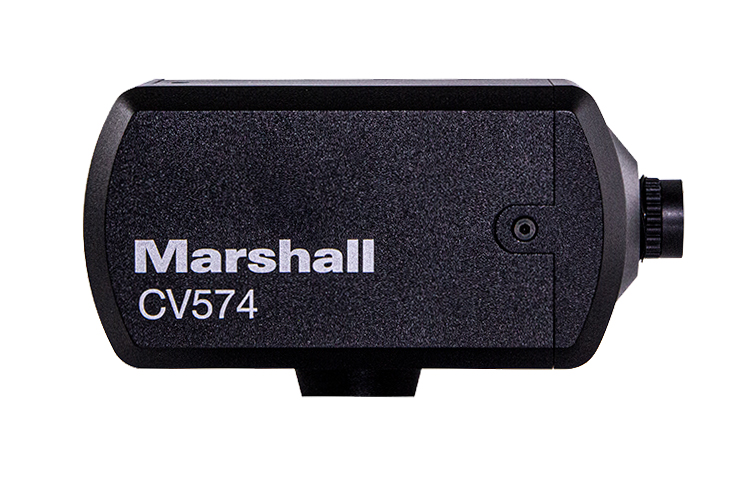

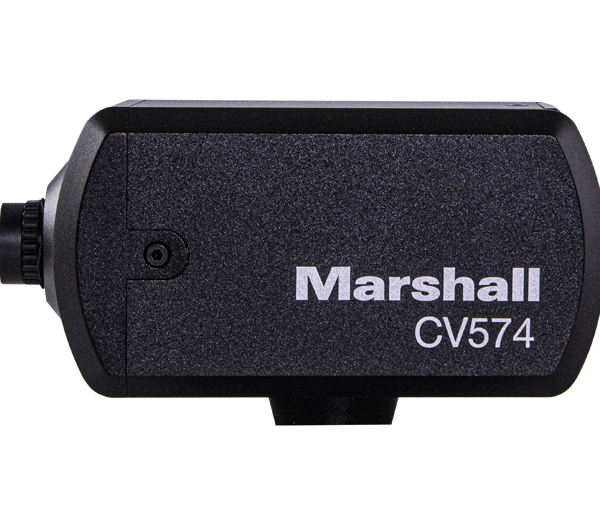

The miniature CV574 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet miniature size with rear I/O protection. CV574 operates with exceptional low-light sensitivity, ensuring a clear Ultra-HD picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows.

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

8.46 Megapixel 1/2.8" Sony solid-state image sensor
Interchangeable M12 lens mount comes with 4.0mm – 85° H.AOV lens
3840x2160p, 1920x1080p, 1920x1080i & 1280x720p resolutions available
Framerates: 60, 59.94, 50, 30, 29.97, 25fps
HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs
One-cable to camera option for power (PoE), video, audio, and remote setting control
Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current
Remote adjust & match via Visca over IP, NDI|Tools, and camera control webpage
PoE over Cat cable or 12V power with included power supply

Applications:

The Miniature CV574 is suitable for use in AV over IP or HDMI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.

CV574 Specifications
Sensor	Image Sensor	1/2.8” Progressive CMOS (Approx. 8.46 mega)
	Scanning System	16:9 Progressive
	Sync. System	Internal
	Effective Pixel	3840(H) x 2160(V)
	Min. Illumination	0.5Lux (Day), 0.01Lux (Night)
Optics	Lens	M12 4.0mm
Functions	Back Light Compensation	WDR, BLC
	Exposure	Auto / Manual
	White Balance	AUTO / Manual / Indoor / Outdoor / One Push / AUTO Tracking(ATW)
	Day & Night System	Day / Night:TDN(ICR)
	Electronic Shutter	1/30~1/10000
	Functions	Image Mirror/Flip, 2D+3DNR, Anti Flicker
Ethernet	IP Protocols	NDI\|HX2, NDI\|HX3, SRT, RTMP, RTSP
Ethernet	Video encode format	H.264 / H.265 (Note: RTMP supports only H.264)

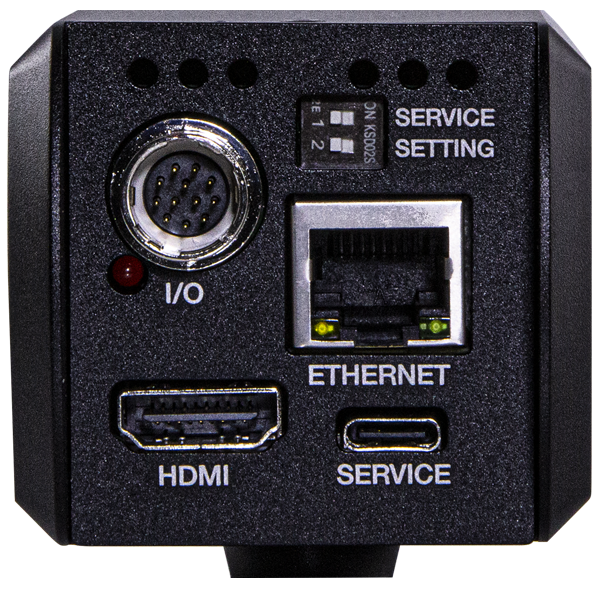

Video Output	Interfaces	HDMI, Ethernet
Output resolutions	HDMI	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080i50/59.94/60, 720p25/29.97/30/50/59.94/60
	IP	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60
	NDI\|HX2	2160p25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 720p25/29.97/30/50/59.94/60
	NDI\|HX3	1080p50/60
Audio Input	Line level	16kHz, 32kHz, 48kHz sample rates
Control	Network	Web GUI / VISCA over IP
General	Operation Temperature	0℃ ~ 50℃
	Power Input	12VDC (10V to 13.5VDC)
	Power consumption	12VDC power: 5.625W, POE power: 6.7W
	Dimensions	94.53mm(L) x 53mm(W) x 55mm(H) (without lens)
	Weight	0.7 lbs

Compatible HD Prime Lens Options (M12):

Part Number	Description & Horizontal AOV
CV-4702.3-3MP	2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
CV-4702.8-3MP-IR	2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4704.0-3MP	4.0mm, F2.6 3MP M12 lens; Horizontal AOV = 85° (1/2.7)
CV-4804.4-12MP	4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8")
CV-4706-3MP-IR	6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP	8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP	12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP	16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°

Compatible 8MP Prime Lens Options (M12):

Part Number	Description & Horizontal AOV
CV4804-8MP	4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3")
CV4808-8MP	8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3")
CV4812-8MP	12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3")

Compatible 5MP Prime Lens Options (M12):

Part Number	Description & Horizontal AOV
V-555.0-5MP-VIS-IR M12	5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
V-557.6-5MP-VIS-IR M12	7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")

Compatible HD Varifocal Lens Options (M12):

Part Number	Description & Horizontal AOV
CV-2812-3MP	2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 32° ~ 100° (1/2.7")
CV-0622-5MP	6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°
