The Marshall CV348 offers full HD resolution in 1080p, 1080i, 720p at up to 60 fps in a sturdy, durable form factor, and straightforward design. The CV348 is suitable for use in full HD broadcast and pro AV workflows environments including live broadcast productions, sportscast, newscast, reality television, concerts, corporate, government, courtroom, house of worship, church production and many more.


CV348

Compact POV Camera (3G/HD-SDI)

Owner's Manual Camera Tips and Tricks Download Firmware Upload Tool Download Latest Firmware Visca Command List Download Camera Control Software Hirose 12-pin Connector Pinout Download Images

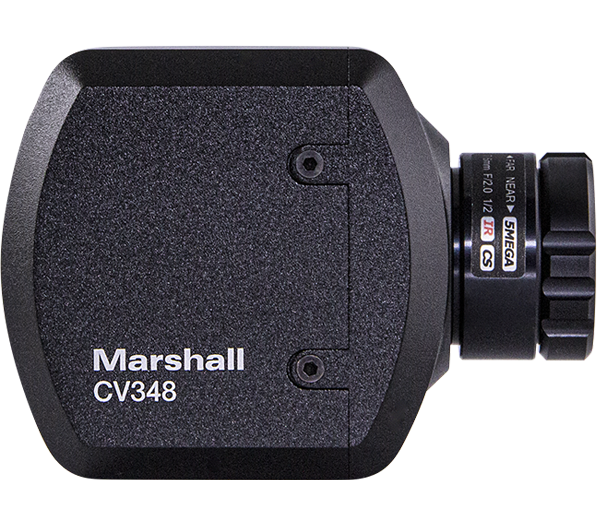

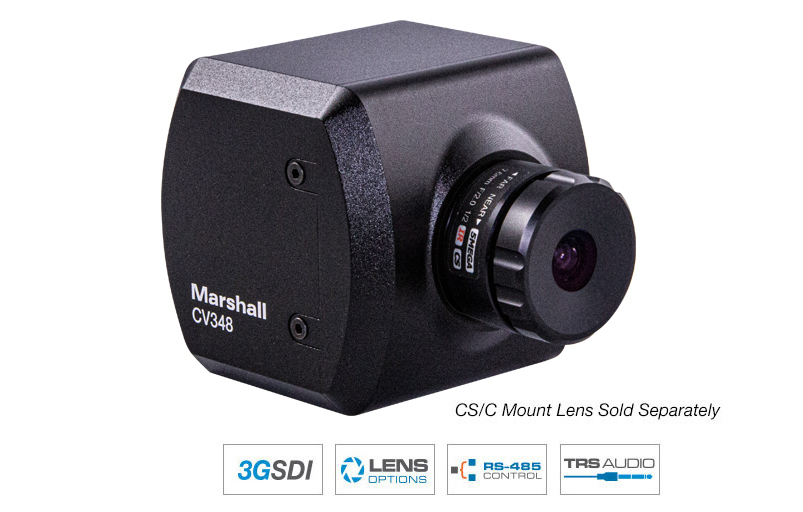

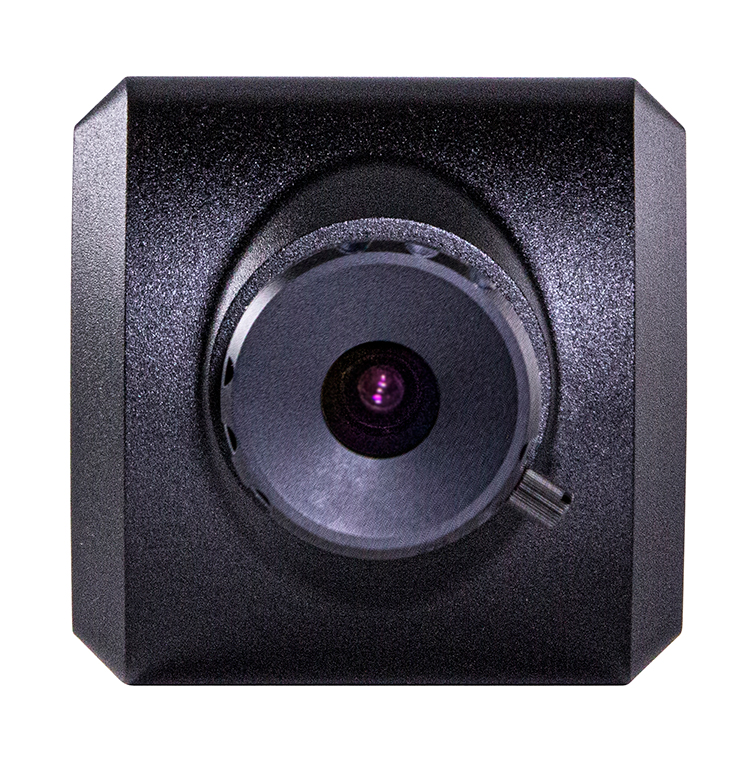

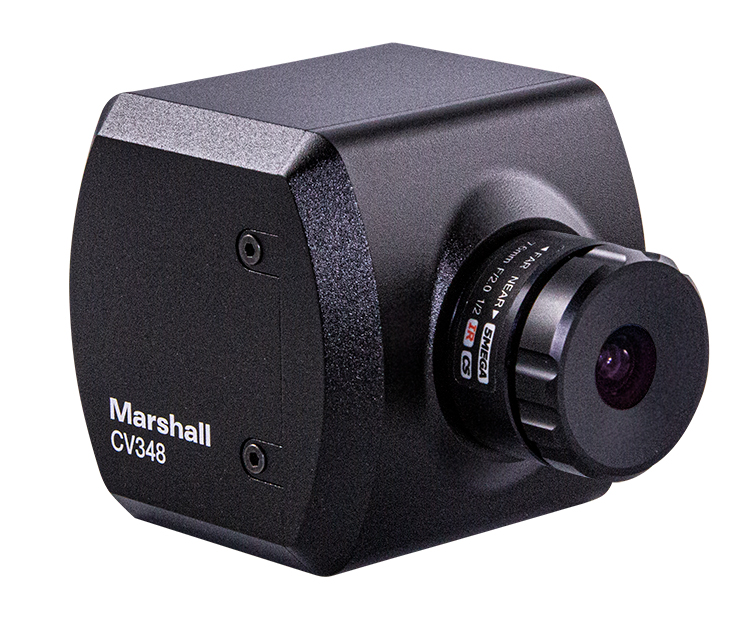

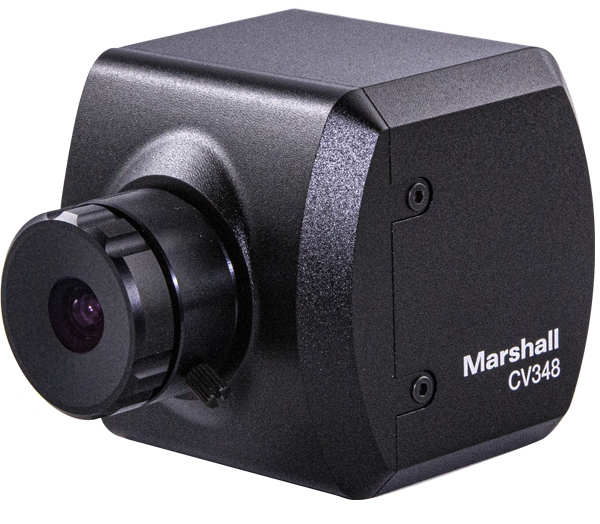

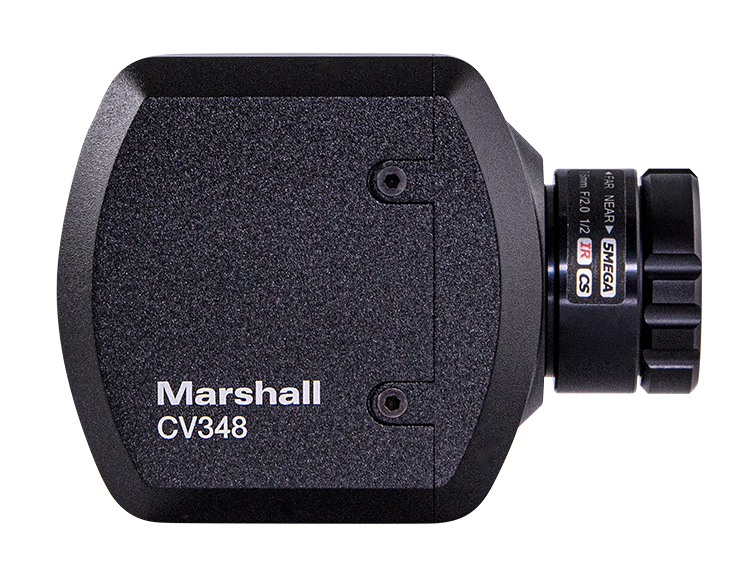

The Marshall CV348 POV Camera is built around a next generation Sony sensor with over 2.2 million pixels, larger pixel size and square pixel array. CV348 delivers exceptional 10 bit 4:2:2 color video performance (BT.709) from a durable aluminum alloy body, flexible CS lens mount and rear connection protection wings. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability. Choose full HD resolutions up to 1080p (progressive), 720p (progressive) and 1080i (interlaced) with a wide selection of framerates available in 23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps serving a variety of Broadcast and proAV applications worldwide. * All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.


CV348 New Sony 1/3 inch Solid State Sensors with Square Pixel Arra

New Sony 1/2.8" Solid State Sensors with Square Pixel Array

The next generation Sony sensors provide clear HD (4.2.2) images with accurate color from larger pixels even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured. Advanced ITU-R BT.709 improves color depth and video performance across the board.

CV348 can Expand Remote Adjust and Match with Color Matrix

Expanded Remote Adjust & Match with Color Matrix

Marshall has expanded remote adjust and match refinement features on these new Sony sensor models with Color Matrix and more refinement steps of exposure and a suite of Visca over RS485 commands. Remote adjust and match the CV348 from a Marshall Touchscreen RCP, free downloadable Camera Control Software, or 3rd party control decks like Cyanview, Skaarhoj and more.

CV348 is Durable, Flexible, Powerful for any remote production

Durable, Flexible, Powerful

The durable CV348 body is chiseled from one block of aluminum alloy with rear panel connector protection. CV348 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, eSports, indoor or outdoor sporting events, church production and other dynamic lighting environments.

CV348 is a broadcast performance ready camera

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

  • 2.2 Megapixel (1/2.8") 16:9 HD color performance
  • Durable Body with CS/C lens mount (lens sold separately)
  • 3GSDI (BT.709, 4.2.2, 10bit) output
  • Interlaced/Progressive Resolutions: 1920x1080p, 1920x1080i and 1280x720p
  • Framerates Supported in all formats: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
  • Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party
  • Micro-USB port for firmware upgrades in the field (downloadable from website)
  • Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current

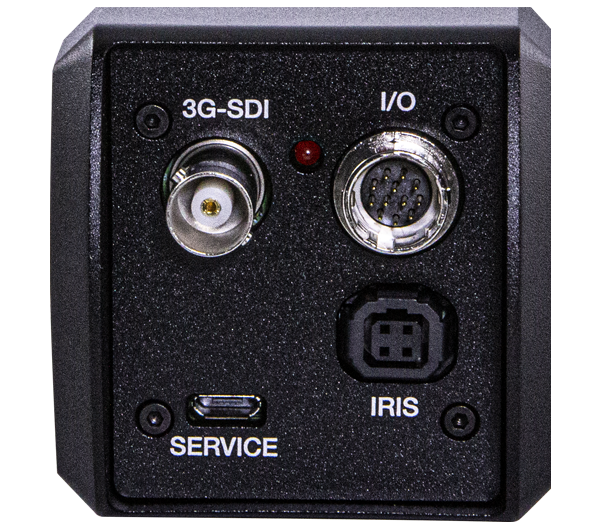

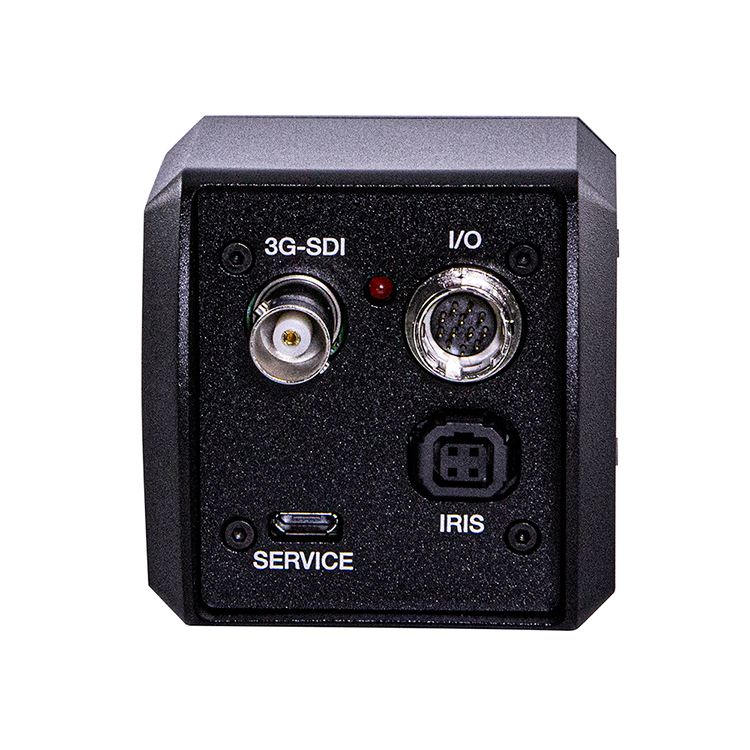

  • Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
  • Power Draw: 3.8W (12V) with wide 7~15V range for alternative power sources


Applications:

The 348 is suitable for use in 3GSDI workflows where image quality and versatility are of utmost concern, including live broadcast productions, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, concerts, house of worship and many more.

Lens Options

CS mount Varifocal Manual Focus Lens options for CV344, CV348, CV346, CV366, CV368
  Part No. Mount Type Megapixel Rating Focal Length Horizontal AOV Iris F-Stop M.O.D.
CS1150-8MP 8MP CS mount focal length Iris F-stop focus range CS1150-8MP CS Mount 8MP 11~50mm 45°~10°approx DC Auto (4 pin) F1.4~close 0.8m
CS-3816-8MP CS-3816-8MP CS 8MP 3.8~16mm 113°~30° DC Auto Iris F1.4 0.2m~∞
CS3610-8MP CS3610-8MP CS Mount 8MP 3.6~10mm 107°~45.6° (1/8") DC Auto
(4 pin)
F1.5 0.3m~∞
CS2810MP 10MP CS mount focal length Iris F-stop focus range CS2810MP CS Mount 10MP 2.8mm 105.6° Manual F1.6 0.3m
C1670-8MP 8MP CS mount focal length Iris F-stop focus range C1670-8MP C Mount 8MP 16~70mm 30°~7°approx DC Auto (4 pin) F1.4~close 0.8m
CS-3.2-12MP CS-3.2-12MP CS 12MP 3.2mm 131° Fixed F2.0 0.3m~∞


Fixed Prime (CS mount) Lens options for CV344, CV343, CV346, CV345, CV365, CV366, CV368
  Part No. Megapixel Rating Focal Length Horizontal AOV F-Stop M.O.D.
Fixed Prime CS mount lens V-555.0-5MP-VIS-IR 1/2 5MP 5.0mm 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7") F2.0 0.8m - ∞
Fixed Prime CS mount lens V-557.6-5MP-VIS-IR 1/2 5MP 7.6mm 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7") F2.0 1.5m - ∞
