Miniature Camera Size
The Marshall CV228 can be positioned in very discreet locations with the ability to withstand dirty, dusty, and wet environments. Despite its compact form factor, the CV228 produces reliable crystal clear video over full-size 3G/HD-SDI (BNC) in Progressive or Interlaced resolutions up to 1920x1080. As shown with the optional
CVM-6 accessory mount.
Improved Sensors and Design
The Marshall CV228 utilizes the latest Sony sensor and processor technology with a step-up in video performance and very low signal noise threshold, even in low-light conditions. Additionally, the CV228 contains a more durable and flexible RG6 coaxial breakout cable to withstand heavy use and bend rotation.
Versatile Placement & Mounting

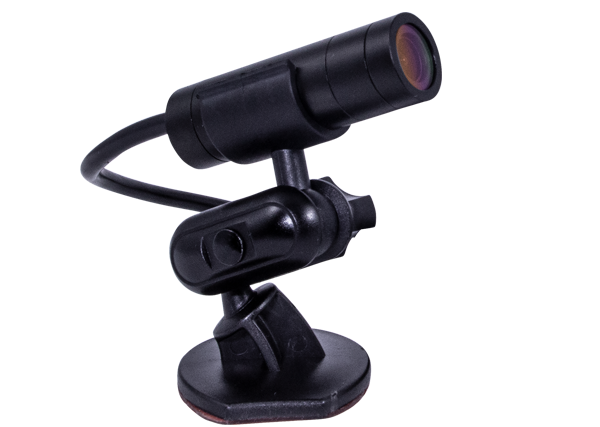

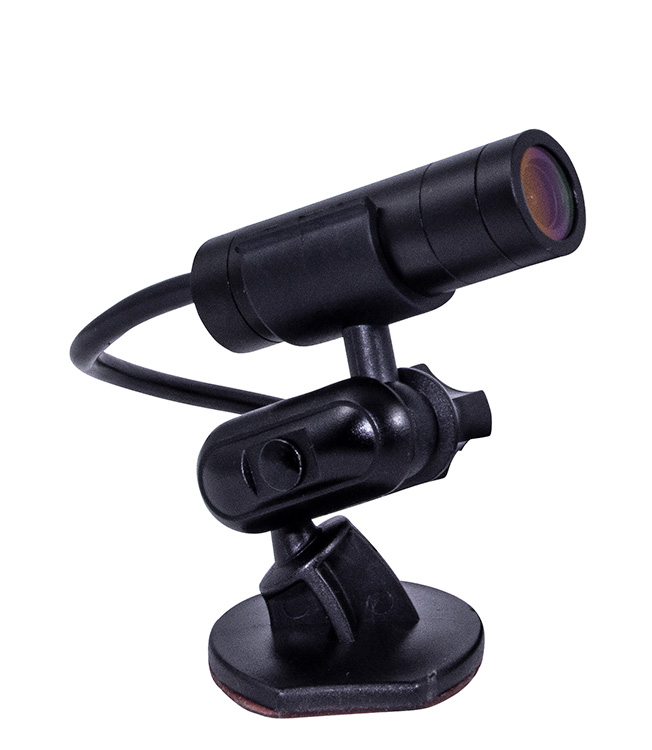

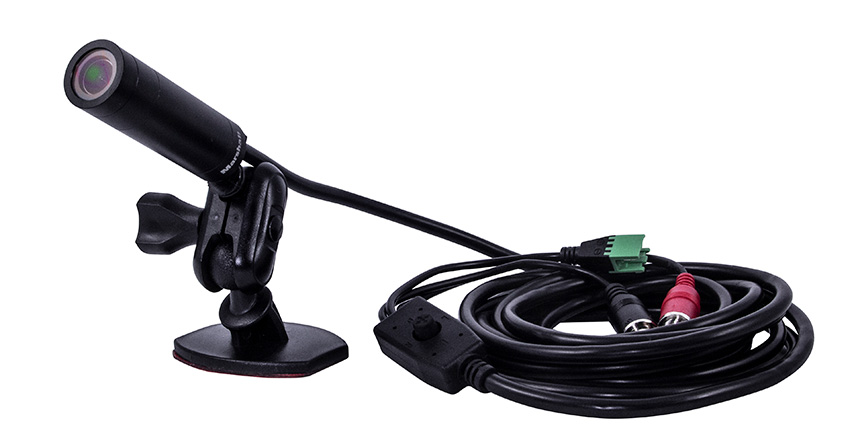

The Marshall CV228 includes a standard 1/4"-20 mount socket for use with tripods, gooseneck, and other camera mounting hardware. For enhanced flexibility, combine with the Marshall
CVM-6 Adhesive Camera Mount Kit with lipstick clip option.
Flexible Control & Framerate Options
Easily select between 60, 59.94, 50, 30, 29.97, 25 frame-rates at 1920x1080p, 1920x1080i, and 1280x720p resolutions. For remote adjust and match, the CV226 supports RS485 Visca control, allowing precision picture adjustments to be performed from control rooms, OB vans, and or broadcast trucks.
- Full-sized 3G/HDSDI (BNC) video output
- 2.5 Megapixel (1/2.8") sensor (4:2:2 color)
- Interchangeable 4.0mm lens with 85° Horizontal AOV

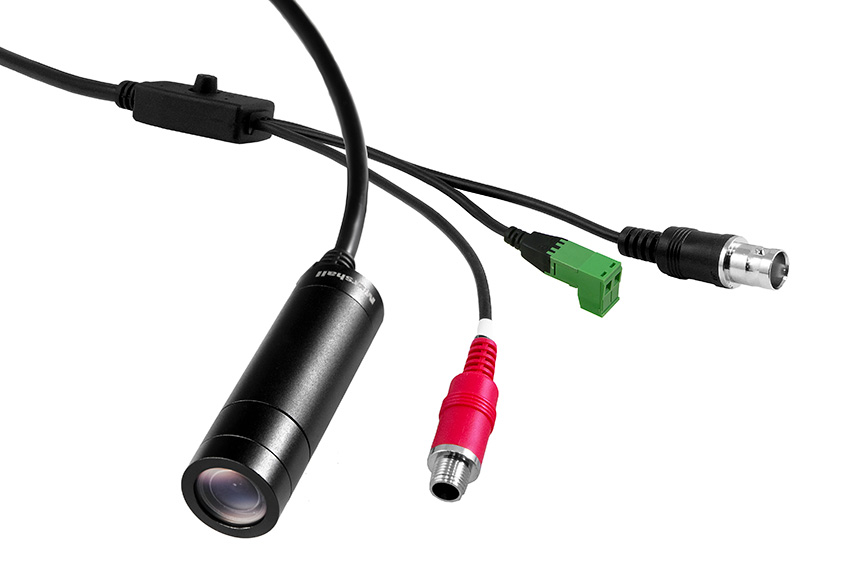

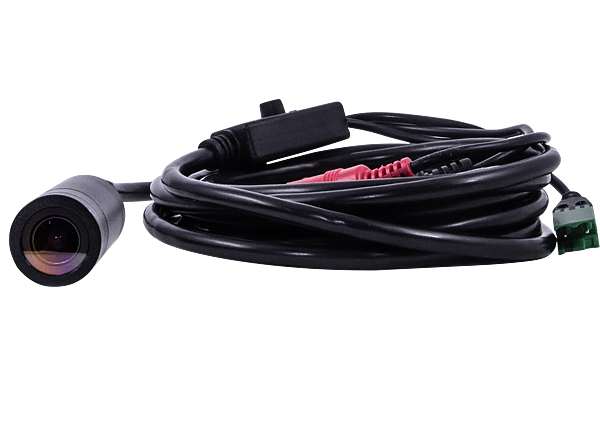

- 10-foot (3 meter) breakout cable with BNC (3GSDI), RS485, and locking 12V power
- Interchangeable M12 lens with IP67 cap includes stock 4mm lens (85°H. AOV)

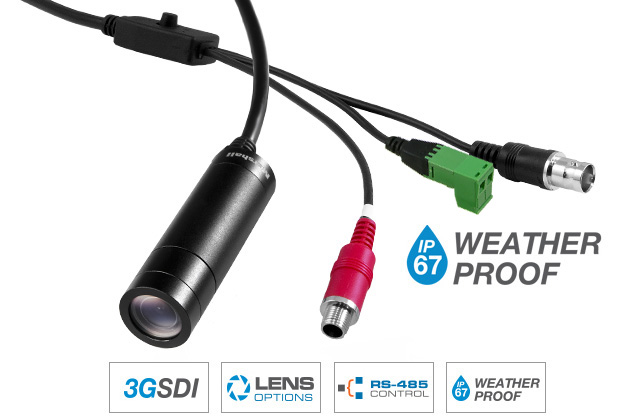

- IP67-rated weatherproof housing; submerge in water up to 10-feet for several hours
- Full-HD resolutions: 1920x1080p, 1920x1080i and 1280x720p
- Frame rates: 60, 59.94, 50, 30, 29.97, 25 fps
- Remote adjustable through RS485 (Visca) or OSD menu joystick
- CV-RCP-V2 Touchscreen RCP compatible and free Camera Control Software option
- Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
Applications:
The CV228 (3GSDI) is suitable for use in indoor and outdoor applications including live broadcast production, sportscast, newscast, concerts, reality television, corporate, government, courtroom, house of worship, education, and more.
Compatible HD Prime Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| CV-4702.3-3MP |
2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126° |
| CV-4702.8-3MP-IR |
2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100° |
| CV-4704.0-3MP |
4.0mm, F2.6 3MP M12 lens; Horizontal AOV = 85° (1/2.7) |
| CV-4804.4-12MP |
4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8") |
| CV-4706-3MP-IR |
6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48° |
| CV-4708.0-3MP |
8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40° |
| CV-4712.0-3MP |
12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33° |
| CV-4716.0-2MP |
16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25° |
Compatible 8MP Prime Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| CV4804-8MP |
4.0mm F1.8 8MP M12 Lens - 90° (1/2.5"), 85° (1/2.7"), 80° (1/3") |
| CV4808-8MP |
8.0mm F1.8 8MP M12 Lens - 70° (1/2.5"), 62° (1/2.7"), 50° (1/3") |
| CV4812-8MP |
12.0mm F1.8 8MP M12 Lens - 50° (1/2.5"), 42° (1/2.7"), 33° (1/3") |
Compatible 5MP Prime Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| V-555.0-5MP-VIS-IR M12 |
5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7") |
| V-557.6-5MP-VIS-IR M12 |
7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7") |
Actual viewing angle may vary depends on image sensor specs and camera design.
*Horizontal Angle-of-View (AOV) in
degrees are approximate and vary according to exact sensor size and design.
**If camera model contains
IP67 weatherproof cap, there may be some limitation as to which lenses will allow cap to fit back on camera.
