V-1217-PCB-3.7
420 TV Line CCD DSP B/W Camera

V-1217-PCB-3.7 420 TV Line CCD DSP B/W Camera
  • 1/3" CCD BLACK & WHITE
  • 420 TV LINES
  • AUTO GAIN CONTROL
  • $179.00


    V-1217-PCB-3.7 is a special 1/3 CCD sensor single board B&W camera designed for a variety of OEM, industrial process, test and measurement, law enforcement, military, medical, scientific and security applications, RoHS compliant.

    420 TV Line DSP CCD sensor, low light 0.5 lux @ F2.0 performance provides amazing Near IR performance in near zero lighting to 1,000nm when used with Marshall V-4700 Series miniature Visible / IR Corrected miniature lensing
    https://marshall-usa.com/optical/lenses/IR-corrected/VIS-IR.php

    The V-1217-PCB-3.7 comes with 3.7mm F2.0 92° HFOV miniature M12 lens. Camera is compatible with Marshall V-4300 CCTV Series, V-4400 HiRes Series, V-4700 Visible / IR Corrected to 1,000nm miniature lensing. C/CS lens mount version model V-1217-C/CS also available.

    Featuring compact 32mm X 32mm board size, Auto Gain Control, Electronic Shutter, low 12 VDC 1.2W power input, light 17g weight enables one off to tens of thousands OEM product and application potential.

    SPECIFICATIONS
    PART NO. V-1217-PCB-3.7
    TV SYSTEM EIA
    IMAGE SENSOR DEVICE 1/3" interline transfer CCD
    IMAGE SENSOR AREA 4.8mm x 3.6mm
    HORIZONTAL FREQUENCY 15.734KHz
    VERTICAL FREQUENCY 59.9Hz
    TOTAL PIXELS 542(H) x 492(V)
    SCANNING SYSTEM 525 lines, 60 fields/sec EIA
    RESOLUTION 420 TV lines horizontal
    MINIMUM ILLUMINATION 0.5 lux at F2.0
    ELECTRONIC SHUTTER Auto electronic shutter
    1/60 to 1/100000 sec. continuous
    S/N RATIO > 48 dB
    VIDEO SIGNAL OUTPUT 1.0Vp-p composite video signal at 75 ohm load
    GAMMA CORRECTION 0.45
    GAIN CONTROL Auto Gain Control
    POWER SUPPLY 12V DC ±10% 1.2W
    LENS & VIEW ANGLE 3.7 mm F2.0 / 92°
    OPERATING TEMPERATURE -20° TO +50° C
    OPERATIONAL HUMIDITY Within 85%RH
    DIMENSIONS / WEIGHT 32(W) x 32(H) x 30(D) mm / 17g

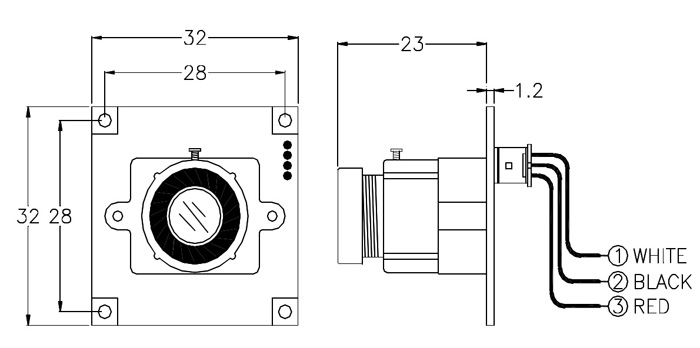

    Dimension (Unit : mm ±0.3mm)

    V-1217-PCB-3.7 diagram



    PIN Assignment
    [1] White Video out
    [2] Black Ground
    [3] Red DC+12V
