The Marshall V-LCD173HR is a 17.3-inch production monitor with a number of adjustable video settings including peaking, false color, exposure, histogram, safety markers, and more. The V-LCD173HR has HDMI/HDSDI inputs and outputs and can monitor audio as well.


V-LCD173HR

17.3" Professional LCD Rack Mount / Desktop Monitor

Owner's Manual Spec Sheet Monitor Power Supply Chart Download Images
* Pricing does not reflect freight costs and applicable taxes and duties.
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

V-LCD173HR-DT - Desktop Version Available

$1111.99
  • Rec 709 compliant
  • LED Tally lights
  • HDMI/HDSDI inputs and outputs with conversion ability
  • Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more
  • Rack ears or VESA mount options
  • BNC connectors
  • Two-channel audio monitoring
  • Image flip ability
  • Headphone jack

Optical Desktop Stand V-ST15
Optional Desktop Stand
The Marshall V-LCD173HR 17.3-inch native resolution (1920 x 1080) production monitor comes with a range of professional adjustment settings and convenient HDMI/HDSDI inputs and outputs. The Marshall V-LCD173HR comes with built-in histogram, peaking, false color, exposure, adjustable safety markers, and more, and can monitor up to two audio channels as well.

The V-LCD173HR offers unprecedented value for the price and has a versatile 6RU frame that can be rack mounted or used on a desktop. The V-LCD173HR can also convert between HDMI and SDI signals.

V-LCD173HR Applications:

Broadcast, live streaming, production, cinema, film, control rooms, field monitors

Model Name V-LCD173HR

Role of Usage

17.3” LCD Monitor

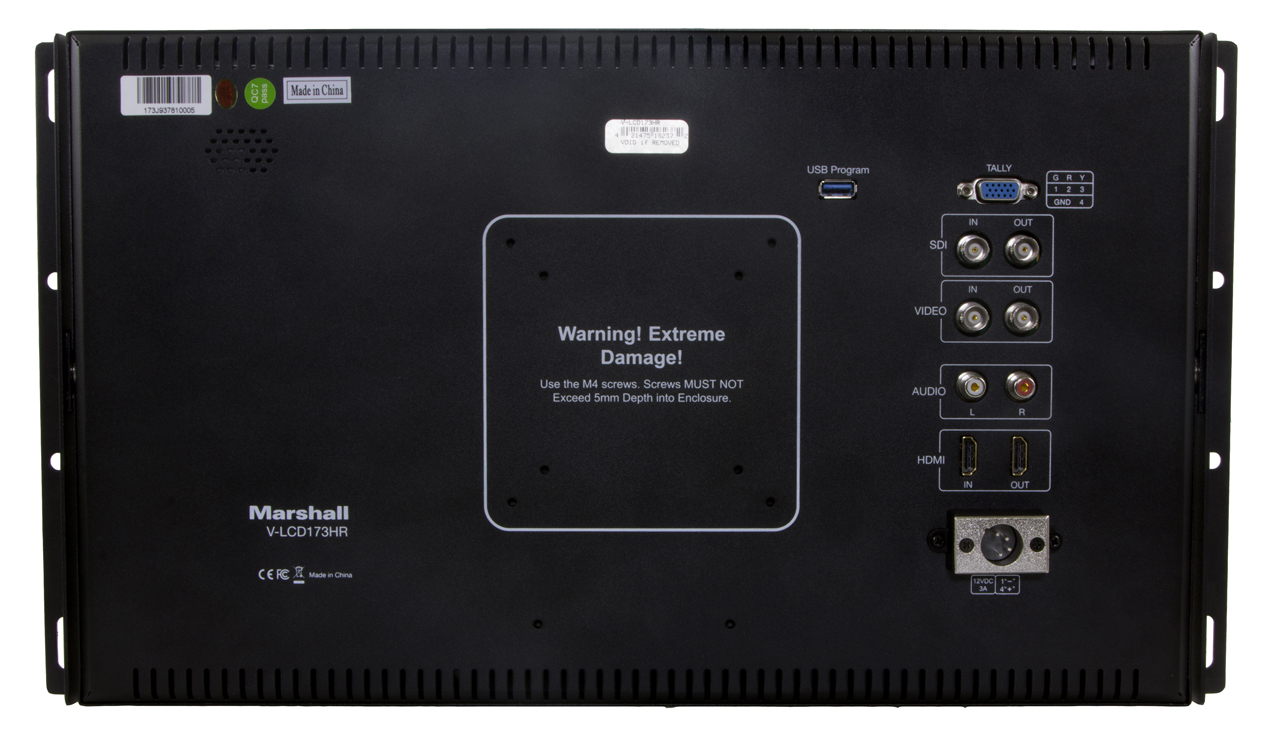

Connectors

Inputs

  • SDI BNC x 1 with Loop Out
  • HDMI x 1 with Loop Out
  • Composite BNC x 1 with Loop Out
  • Audio L/R RCA x 2 Line Level
  • Tally HD-15 Pin compatible with GPI open collector or contact closure to ground/earth
  • USB 3.0 USB-A x 1 (Firmware Updates)
  • XLR-12V 4 pin x 1

Outputs

  • 3.5 mm Front Panel Stereo Headphone Jack


Hardware


  • Included Rack Ears x 2 (6RU height) for standard 19” rack mount
  • Back Panel Supports VESA 100x100mm and 75x75mm mounting systems
  • Optional Desktop Stand Model V-ST15 Available
  • Weight 7.9 lbs. (3.6 Kg)
  • Product Dimension: 1.29” x 17.75” x 10.5” / 3.28cm x 45cm x 26.7cm (D x L x W)
Panel Information
  • Native Resolution:1920 x 1080 pixels
  • Contrast Ratio: 700:1
  • Luminance: 300 nits
  • Display colors: 16 million colors
  • Viewing Angle: 178-degrees H & V
Supported Formats / Frame Rates

Composite Input

  • NTSC
  • PAL

SD-SDI Input

  • 480i 59.94Hz
  • 576i 50Hz

HD-SDI

  • 720p 25, 29.97, 30, 50, 59.94, 60 Hz
  • 1080i 50, 59.94, 60 Hz
  • 1080psf 23.98, 24.00 Hz
  • 1080p 23.98, 24, 25, 29.97, 30 Hz

3G-SDI
Level A

  • 1080p 50, 59.94, 60 Hz
  • 10800i 50, 59, 60 Hz
  • 1080psf 23, 24, 25, 29.97, 30 Hz
  • 1080p 23.98, 24, 25, 29.97, 30 Hz

SD - HDMI

  • 480i 59.94, 60 Hz
  • 576i 50 Hz
  • 480p 59.94, 60 Hz
  • 576p 50Hz

HD - HDMI

  • 720p 25, 29.97, 30, 50, 59.94, 60 Hz
  • 1080i 50, 59.94, 60 Hz
  • 1080psf 23.98, 24 Hz
  • 1080p 23.98, 24, 25, 29.97, 30 Hz
