Tajimi Connectors

Manufactured exclusively in Japan, Our Tajimi patch jack is equipped with function for jack, looping plug and termination plug.


Patch Jacks

This is a dual video jack with switch system installed. This patch jack is equipped with function for jack, looping plug and termination plug. The outer diameter of the contact of this patch jack fits the Western Electric (W.E.) specification 2.29mm ().090 inch).

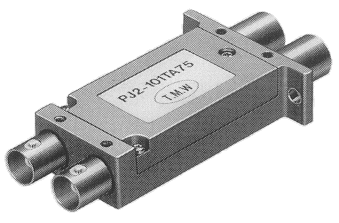

PJ2-101TA75

PJ2-101TA75

Specifications
Characteristic Impedance: 75W
Frequency Range: DC-600MHz
Contact Resistance: 120mW max. (DC100mA)
Insulation Resistance: DC500V 1000MW min
Withstanding Voltage: DC1000V (rms)
V.S.W.R.: 1.2 max (10MHz~600MHz)
Termination Resistor: 75W 1/2 watt
Crosstalk: 200MHz max. -50dB min
                 600MHz max. -40dB min

Materials

Parts Materials Plating
Body Aluminum alloy Nickel
Connector Shell Brass Nickel
Contacts Copper alloy Gold
Insulation Teflon

Part No. Resistor Fig. No.
PJ2-101TA75 75W A
PJ2-104A - B
PJ2-102TA75 75W C
PJ2-103A - D

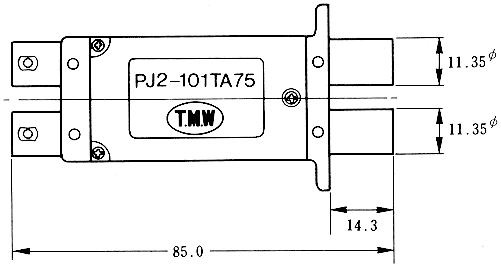

Dimensions



Mounting Hole Dimensions

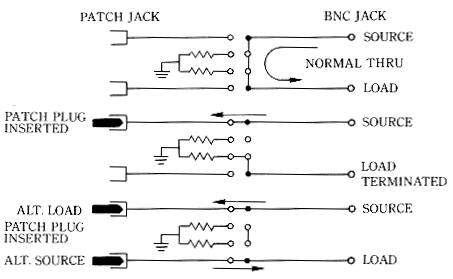

Fig. A

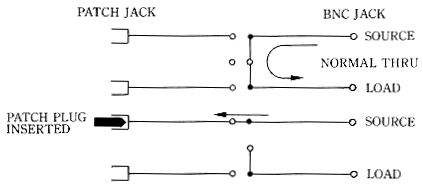

Fig. B

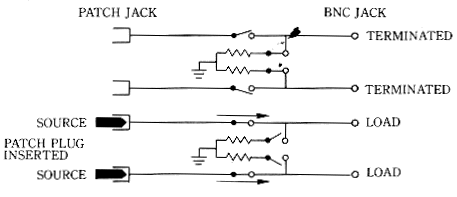

Fig. C

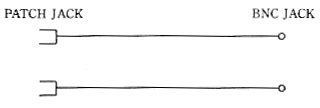

Fig. D
