The V-R842DP-AFHD is a dual screen HD LCD monitor. 8.4-inch panels with 2.4 million pixels each, the V-R842DP-AFHD provides the highest pixel density available while occupying only 4RU. 10-bit A/D conversion of all analog signals, with 4X over-sampling and 5-line super-adaptive 2D comb filtering of composite signals.Multi-format compatibility accommodates virtually all video formats including NTSC/PAL, 480i/p, 720p, and 1080i/p standards. VGA and DVI inputs accept VESA standards allowing the display to be used as a computer monitor. Advanced features: aspect ratio settings, a variety of screen markers, underscan mode, blue-only mode, monochrome mode, H/V delay, and Pixel-to-Pixel mode.

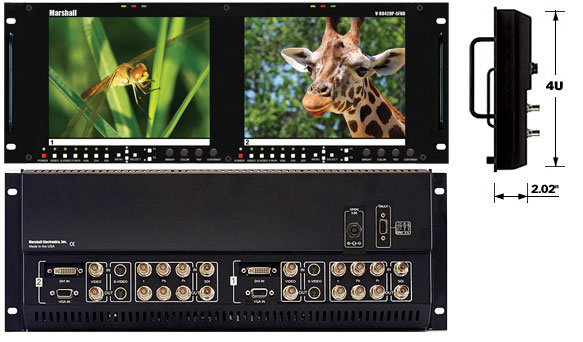

V-R842DP-AFHD

Dual Screen 8.4" 2.4 MegaPixel HD/SD monitor set

Owner's Manual (PDF)
  • High Definition 2.4 MegaPixel screens with 1024 x 768 resolution
  • 100% digital processing
  • Analog signals converted to digital
  • High resolution scaling of all images
  • CRT style viewing radius -- 170 degrees in all directions provides superior visibility when the viewer is not directly in front of the screen
  • 400 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
  • 400:1 ratio of contrast between black and white luminance values
  • 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
  • Works with all SMPTE/ITU serial digital production
    formats and frame rates
  • Blue Gun for color adjustment
  • Ready to mount in 19" rack out-of-the-box
  • Three-color self-powered tally system provided for each panel
  • Built-in Color Bar Generator
  • Zoom function
  • Built-in Color Bars
  • 6 Frame Marker Overlays with Center Mark
  • Easy-to-see three color tally indicators
  • Adjustment Settings Memory
  • Calibrated Color Temperature and Gamma


Standard Multi-format inputs:

  • HDSDI (all formats)
  • SDI (ITU-R BT601 format)
  • Composite Video PAL/NTSC
  • Y/C (S-Video)
  • Component Video YPbPr
  • VGA to XGA
  • DVI-I
  • Loop-through of all input signals


Occupying only 4 rack units of a standard 19" EIA equipment rack, the V-R842DP-AFHD represents leading edge technology in LCD imaging for broadcast and professional video applications. Two high resolution 2.4 MegaPixel TFT screens with completely digital signal processing provide image reproduction that exceeds all CRT displays available in a similar form factor. All SMPTE/ITU video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10-bit process on each signal path with 4x oversampling and adaptive 5-line comb filter with exacting color space conversion. All video formats are scaled to fit onscreen in the highest resolution using a state-of-the-art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Additional features include setup memory, Zoom function, 6 Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions.

V-R842DP-AFHD specifications
Number of Screens (2) with Anti-glare surface treatment
Display (Viewing Area) 8.4-Inch diagonal (6.14"W x 3.27"H) (170.469mm W x 127.872mm H)
Resolution (RGB Dots) 1024 H x RGB x 768 V (2.4 million RGB pixels) (16.7 Million colors)
Viewing Angles 170° H x 170° V
Dot Pitch 0.0555mm (H) x 0.1665mm (V)
Contrast Ratio 400:1
Brightness (in cd/m²) 400
Dimensions 18.92" W x 7" H x 2.61" D
Weight 6.7 lbs
System NTSC/PAL auto recognition for standard definition signals
Power Consumption 3.5A @ 12VDC (42 W)
Appiications
  • Studio Monitor Wall
  • Remote/OB Van
  • EFP/ENG
  • Fly Packs
  • Camera Shading
