The V-R185-IMD-3GTE-DT is a full resolution 18.5" LCD monitor with an HD-SDI input and In-Monitor Display functionality - a cost-effective "all-in-one" solution for post-production houses, broadcasters, and mobile units. This fully integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, Audio Presence Indicator, and a new RotoMenu™ feature that allows fast, direct, and easy menu navigation.

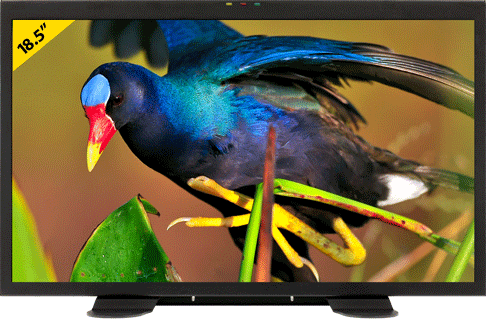

V-R185-IMD-3GTE-DT

18.5" 1366 x 768 Desktop Monitor with HD-SDI, 3G/HD/SDI inputs and In-Monitor Display features

Owner's Manual (PDF) Spec Sheet (PDF)
In monitor display

Ultra-wide Viewing Angle Icon

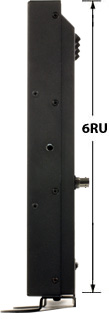

side panel view Desktop Monitor with HD-SDI input and In-Monitor Display features HD-SDI input and In-Monitor Display features
  • No need for external Under Monitor Display --
    "all-in-one" In-Monitor Display solution without added depth
  • Supports the following protocols: Image Video / NVISION / TSL / MEI
  • 1366 x 768 LED-backlit panel with wide viewing angles
  • Unique RotoMenu™ feature for fast, direct, and easy menu navigation
  • High resolution scaling / high quality deinterlacing
  • Three-color on-screen "soft" tally indicators (Red / Green / Amber)
  • Three LED color tally indicators (Red / Green / Amber)
  • On-Screen Audio Presence Indicator
  • On-Screen Video Time Code
  • RS-422 / 485 connection with loop-through for control communication / IMD functionality
  • Field upgradeable firmware capability via RS-422 / 485 port
  • Direct access for adjustments of brightness, contrast, and color
  • Multiple Frame Marker Overlays with Center Mark
  • Pixel-to-Pixel mode
  • Blue Gun for color adjustment
  • Adjustment Settings Memory

The V-R185-IMD-3GTE-DT 18.5" monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall fl at panel monitor, while saving precious space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator.

Marshall IMD displays also offer a RotoMenu feature which allows fast, direct, and easy menu navigation. Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI (Marshall Electronics) protocols. This unit ships as a desktop monitor, but can be wall or ceiling mounted with an optional VESA adapter. It can also be rack mounted.


V-R185-IMD-3GTE-DT specifications
Panel Number of Panels 1
Panel Size 18.5” Diagonal
Resolution 1366 x RGB x 768
Aspect Ratio 16:09
Active Area 409.8 x 230.4 mm
Type LCD Panel
Brightness 300 cd/m²
Contrast 1000:1
Color Gamut YUV, RGB
Viewing Angles 178° x 178°
Backlight type LED
Adjustable Backlight No
Features Video Formats 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
IMD Functions Yes
Tally Yes
False Color No
Peaking Filter No
Pixel to Pixel Yes
Closed Caption Yes
Pre-set Gamma points Yes
Self-Sensing Yes
Audio Bars Yes
Embedded Audio with SDI Yes
Video
Input Connectors
CVBS No
YPbPr No
SD-SDI Yes
HD-SDI Yes
3G-SDI Yes
HDMI No
DVI-I No
Optical No
Video Output Connectors CVBS No
YpbPr No
SD-SDI Yes
HD-SDI Yes
3G-SDI Yes
HDMI No
Control Inputs Tally / GPI Yes
RS-485/422 w/ Loop Through Yes
Ethernet No
Controls on Top Yes
User-Defined Function Buttons Yes
RotoMenu™ Control Yes
Handles/Rack Ears Yes
Power Voltage 24 VDC
Consumption 5.0A @ 24VDC (60 W)
Power Switch Yes
Connector 4-Pin XLR Connector
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 32°F to 104°F
Storage Temperature (C°) -4°F to120°F
Dimensions Rack Unit dimensions 18.9" W x 10.45" H x 1.69" D
Weight (Main Body) 5.10 lbs
Vesa Mount Pattern 75mm
