The V-R151P-4A is a rack-mounted monitor with a 15", 4:3 aspect ratio active matrix LCD/TFT module. Mounting can also be achieved via a VESA 75 reinforced mount point on the rear of the unit or with the included rack ears. The display will produce a high-resolution 1280W x 1024H SXGA image from a computer with Analog RGBHV outputs plus DVI-Digital or display scaled video images. Component, Composite Video or Y/C (S-video) images are displayed via a proprietary internal scaling LSI The unit is designed to fit into an EIA standard 19" rack and occupies 6RU of space. For ease of operation the V-R171P-4A includes front mounted selector buttons for menu operations with On Screen Menu Display (OSD) and "ON AIR" tally. A U.L. Class 2 power supply is included and the unit is factory ready for rack mount installation.


V-R151P-4A

15" Rack Mountable LCD Monitor with Built-in Quad Splitter and
Sequential Switcher

Owner's Manual (PDF)
15 inch Rack Mountable LCD Monitor with Built-in Quad Splitter and Sequential Switcher

  • High Resolution 1024 × 768 pixels, 786,432 total
  • Bright 250 candle luminance
  • Ultra-compact design fits in EIA standard rack 6U high
  • Built-in Quad Splitter/Sequential Switcher
  • Unique 180 degree tilt adjustment while mounted in rack
  • Available in NTSC or PAL format

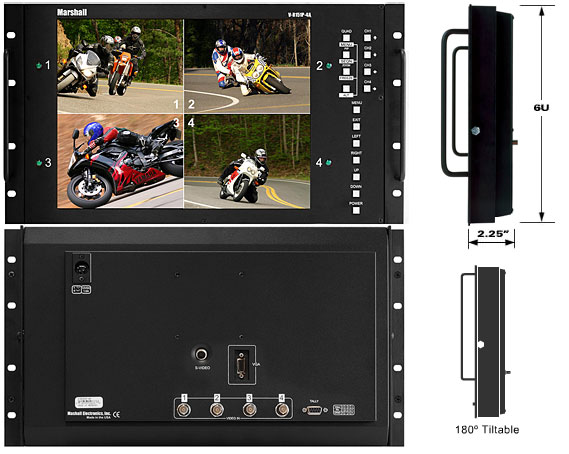

The V-R151P-4A is a 15" LCD rack mounted unit 6U high that includes Quad Splitter and Sequential Switcher. This panel has 1024 x 768 pixels producing a true high resolution image. The Quad Splitter allows all of the four channels to appear on the monitor simultaneously either using full screen or picture-in-picture mode. For added flexibility, this unit can accommodate composite video, S-Video or VGA for computer monitoring (S-Video and VGA inputs are only available in full screen mode). Unit includes power supply and owners manual.



SPECIFICATIONS
Display (Viewing Area)
15.1" (11.69" × 9.12")
Resolution (Pixels)
1024 H × 768 V
Dot Pitch
0.297mm × 0.302mm
Brightness (in cd/m²)
250
System
NTSC - V-R151P-4A
PAL - V-R151P-4A-PAL
Inputs
1 S-Video, 4 Composite, 1VGA
Dimensions
19.12"W × 10.5"H × 2.25"D
Approx. Weight
24 lbs
Power Consumption
12 VDC, 1.0 Amps
