Weatherproof Full-HD (3G/HD-SDI) 2.5MP Mini Broadcast Camera
with 3.7mm Lens

Owner's Manual Download Images
Weatherproof IP67 rated miniature pov broadcast camera


  • Models
    CV502-WPMB:1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps
    CV502-WPM: 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25fps
  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • Weatherproof IP67 rated Housing for outdoor applications
  • IP67: water protection submerged up to 1m (3.2') - total protection against dust, dirt, sand
  • 3.7mm HD M12 Lens comes standard - 2.8mm (CV4702.8-3MP-IR) & 6.0mm (CV4706-3MP-IR) also available
  • 3G/HDSDI (BNC) & CVBS (BNC) connections at end of 10' breakout cable
  • RS-485 (connector) & 12V Power (connector) at end of 10' breakout cable
  • Captures sharp & vivid color HD images at 0.2Lux (low light sensitive)
  • New WDR function supports high speed & high sensitivity to multiple light sources
  • Stepped (Red/Blue) Gain Control, Gamma, Brightness, and Shutter adjust via RS485 (Visca/Pelco)
  • OSD Menu Joystick, RS-485 connectable (Pelco/Visca)
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Includes 12V power supply in box

Marshall Electronics incorporated everything the CV502-MB/M camera delivers and built a weatherproof IP67 rated housing around it - CV502-WPMB/WPM. Perfect for applications where weather becomes a factor; outdoor sporting events, nature observation, weather coverage, news coverage, reality TV, mobile broadcast, or any outdoor application where mother nature has an influence. Utilizing new state of the art 1/3-inch high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25 fps. New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux. Industry leading low power consumption draws very low power in full 1920x1080p60/59.94/50fps modes. New weatherproof CV502-WPMB/WPM Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. New RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols.

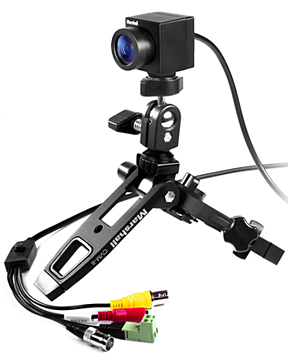

IP67 rated weatherproof mini camera on heavy duty Marshall stand
CV502-WPMB Weatherproof Camera on
Heavy Duty Pro Stand-Clamp

CV502-WPMB/WPM Applications:

• Broadcast Television • Professional Sports • College Sports • OB Vans/Trucks • Concert & Studio Music Video • Reality TV • Performing Arts • Culinary Shows • Car TV Shows • Hidden Camera Shows • International Racing Circuits • Off-road Racing • Horse Racing • House of Worship • POV Video Shots



Camera Control Software

POV Camera Control Software

Compatible HD Prime Lenses using stock LENS CAP

Part Number Description & Horizontal AOV in degrees
CV-4702.8-3MP-IR 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4704.0-3MP 4.0mm, F2.6 3MP M12 lens; Horizontal AOV = 85° (1/2.7)


Compatible HD Prime Lenses that require longer
LENS CAP (part# CV502WP-CAPS-LG) sold seperately:

Part Number Description & Horizontal AOV in degrees
CV-4804.4-12MP 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8")
CV-4706-3MP-IR 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°
*Horizontal Angle-of-View (AOV) in degrees are approximates.
CV502-WPMB/WPM specifications
Sensor Image Sensor 1/3" Progressive CMOS (Approx. 2.1 mega)
Scanning System 16:9 Progressive
Sync. System Internal
Effective Pixel 1920(H) x 1080(V)
Min. Illumination 0.2 Lux (Color), 0.1 Lux (Black/White), 0.005 Lux(DSS on)
Horizontal Resolution 1000TVL
Optics Lens CV502 comes with 3.7mm (M12 mount) - interchangeable
Functions Back Light Compensation WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)
Exposure Auto / Manual
White Balance Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual
Day & Night System AGC (Automatic Gain Control) / True Day/Night auto switch based on light environment (auto/manual) (ICR)
Electronic Shutter NTSC: 1/30~1/30000,
PAL:
1/25~1/30000, DSS( ~X64)
Functions Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
Video Outputs 3G-SDI
HD-SDI
SMPTE 424M(2.97Gbps):
1920x1080p @ 59.94fps (-MB/-CSB) or
1920x1080p @ 50/60fps (-M/-CS)
SMPTE 292M(1.485Gbps):
1920x1080p @ 29.97 (-MB/-CSB) or 25/30 (-M/-CS)
1920x1080i @ 59.94 (-MB/-CSB) or 50/60fps (-M/-CS)
1280x720p @ 59.94/29.97fps (-MB/CSB) or 50/60 (-M/-CS)
CVBS (BNC) Composite-CVBS (BNC): 700TVL NTSC/PAL
Control Interface RS-485 PELCO-P/D, SONY-VISCA protocol
8 bits data, 1 stop bit, no parity, 2400~115200bps
General Operation Temperature -10°C ~ 50°C
Power Input 12VDC (7V to 15VDC)
Power consumption Max 6W
Dimensions 37(W) X 37(H) X 35(D)mm
Weight (Net) Approx. 140g

Touchscreen RCP Camera Control

CV-RCP-V2

Touchscreen RCP Camera Control
Remote adjust & match cameras via RS485

Read more
Mini Camera Stands and Mounts accessories

1/4"-20 Mounts

1/4"-20 Compact Camera Stands & Mounts,
Clamps, Articulating arms and more...

Read more
Touchscreen RCP Camera Control

CV-USB-RS485

USB to RS485/422 Adapter for use with Marshall Windows Camera Control Software.

Call for Price


CV502/505-series Live from Las Vegas, Nevada

CV502/505-series Live from Las Vegas, Nevada

CV502/500 mounted on Hockey Helmet

CV502 capture wide-shot at College Basketball game

CV502/500 mounted on Basketball Backboard

CV502/500 mounted on Volleyball Net


Weatherproof Full-HD 3G/HD-SDI 2.5MP Mini Broadcast Camera

Camera Control Application

  1. Download Camera Control Software HERE
  2. Use USB to RS485/RS422 Converter (CV-USB-RS485)
  3. Use cat5 or 24AWG twisted-pair wire (sold separately)
  4. Connect cable from RS485(+) terminal on Camera to T/R (+) on USB/RS485 converter
  5. Connect cable from RS485(-) terminal on Camera to T/R (-) on USB/RS485 converter
  6. Plug USB cable from USB/RS485 converter into USB port on Laptop or Computer (note ComPort#)
  7. Open up CamControl Program and match Serial Port to corresponding ComPort# used
  8. Select Baudrate in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > BAUDRATE
  9. Select Camera Address in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > CAM ID
  10. Select Open in CamControl Program
  11. Test connection by pushing MENU in lower right of CamControl Program - OSD Menu should come up on video signal
  12. Commands can also be sent without using OSD Menu


* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
