3rd Generation POV compact camera CV343-CSB with improved video performance. New state of the art 1/3-inch high speed sensor with 2.5 Megapixels of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25 fps. RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols. Low light sensitive


Marshall
CV343-CSB
(59.94/29.97 fps)

Full-HD (3G-SDI) Compact Broadcast POV Camera (CS mount)

Quick Reference Manual Owner's Manual Specsheet Download Download Images

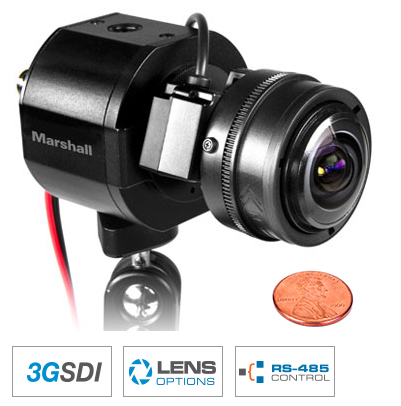

Full-HD 3G-SDI Compact Broadcast POV Camera with CS mount and VS-M226-A Fujinon CS Varifocal Lens



CV343-CSB camera with VS-M226-A Fujinon CS Vari-Focal Lens. MORE LENS OPTIONS
Full-HD 3G-SDI POV Camera rear view with SDI and CVBS inputs
CV343-CSB camera rear view
  • Models:
    CV343-CSB: 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps
  • 2.5 Megapixel 1/3-inch CMOS Sensor
  • CS/C Mount with DC-Auto Iris (lens sold separately)
  • 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel
  • Captures sharp & vivid color images as 0.2 lux (low light sensitive)
  • New WDR function supports high speed & high sensitivity to various light sources
  • OSD Menu Joystick & RS-485 connectable (Pelco/Visca Protocols)
  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2
  • Includes 12V power supply in box


Marshall Electronics 3rd Generation CV343-CSB improves on all aspects of video performance. Utilizing a new state of the art 1/3-inch high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25 fps. New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux. Industry leading low power consumption draws very low power in full 1920x1080p60/59.94/50fps modes. New CV343-CSB Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable CS/C mount Varifocal lenses and convenience of HD-SDI outputs maintaining a broadcast standard for POV camera applications. New RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols.

Camera Control Software

POV Camera Control Software

CV343-CSB applications:

• Broadcast Television • Professional Sports • College Sports • OB Vans/Trucks • Concert & Studio Music Video • Reality TV • Performing Arts • Culinary Shows • Car TV Shows • Hidden Camera Shows • International Racing Circuits • Off-road Racing • Horse Racing • House of Worship • POV Video Shots

CV502/CV343 specifications
Sensor Image Sensor 1/3" Progressive CMOS (Approx. 2.1 mega)
Scanning System 16:9 Progressive
Sync. System Internal
Effective Pixel 1920(H) x 1080(V)
Min. Illumination 0.2 Lux (Color), 0.1 Lux (Black/White), 0.005 Lux(DSS on)
Horizontal Resolution 1000TVL
Optics Lens CV502 comes with 3.7mm (M12 mount) - interchangeable
CV343 (CS/C mount w/ DC-Auto Iris) - variable lens options
Functions Back Light Compensation WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)
Exposure Auto / Manual
White Balance Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual
Day & Night System AGC (Automatic Gain Control) / True Day/Night auto switch based on light environment (auto/manual) (ICR)
Electronic Shutter NTSC: 1/30~1/30000,
PAL:
1/25~1/30000, DSS( ~X64)
Functions Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
Video Outputs 3G-SDI
HD-SDI
SMPTE 424M(2.97Gbps):
1920x1080p @ 59.94fps (-MB/-CSB) or
1920x1080p @ 50/60fps (-M/-CS)
SMPTE 292M(1.485Gbps):
1920x1080p @ 29.97 (-MB/-CSB) or 25/30 (-M/-CS)
1920x1080i @ 59.94 (-MB/-CSB) or 50/60fps (-M/-CS)
1280x720p @ 59.94/29.97fps (-MB/CSB) or 50/60 (-M/-CS)
CVBS (BNC) Composite-CVBS (BNC): 700TVL NTSC/PAL
Control Interface RS-485 PELCO-P/D, SONY-VISCA protocol
8 bits data, 1 stop bit, no parity, 2400~115200bps
General Operation Temperature -10°C ~ 50°C
Power Input 12VDC (7V to 15VDC)
Power consumption Max 6W
Dimensions CV343: 60(W) x 57(H) X 45(D) mm
CV502: 37(W) X 37(H) X 35(D)mm
Weight (Net) CV343: Approx. 160g
CV502: Approx. 140g
Touchscreen RCP Camera Control

CV-RCP-V2

Touchscreen RCP Camera Control
Remote adjust & match cameras via RS485

Read more
Mini Camera Stands and Mounts accessories

1/4"-20 Mounts

1/4"-20 Compact Camera Stands & Mounts,
Clamps, Articulating arms and more...

Read more
Compact Weatherproof Camera Housing with Fan and Heater

CV-H20-HF

Compact Weatherproof Camera Housing with Fan & Heater

Read more
Touchscreen RCP Camera Control

CV-USB-RS485

USB to RS485/422 Adapter for use with Marshall Windows Camera Control Software.

Call for Price


Click Here For Additional Accessories

Lens Options for CV343, CV345, CV365 cameras

CS mount Varifocal Manual Focus Lens options for CV343, CV345, CV365, CV380, CV420
  Part No. Megapixel Rating Focal Length Horizontal AOV Iris F-Stop Focus Range from Front of Lens
CS mount 3MP Varifocal Manual Focus Lens from FUJINON VS-M226-A 3MP 2.2~6mm 129°~50° DC Auto
(4 pin)
F1.3 ∞ - 0.3m
CS mount 3MP Varifocal Manual Focus Lens from FUJINON
VS-M226-M-IRIS 3MP 2.2~6mm 129°~50° Manual Control F1.3~close ∞ - 0.3m
CS mount 3MP Varifocal Manual Focus Lens from FUJINON
VS-M288-M-IRIS 3MP 2.8~8mm 110°~30° Manual Control F1.2~close ∞ - 0.3m
 VS-M2812-2 Varifocal CS Mount Lens VS-M2812-2 3MP 2.8~12mm 98°~25° DC Auto
(4 pin)
F1.4 ∞ - 0.3m
VS-M419-6MP 6MP Varifocal CS Mount Lens VS-M419-6MP 6MP 4.1~9mm 72°~33° (1/3"),
97°~44° (1/2")
DC Auto
(4 pin)
F1.6 - T360 ∞ - 0.3m
VS-M550-4, 5-50mm CS-Mount F1.6 IR-Corrected DC Auto-Iris Varifocal Lens VS-M550-4 3MP 5~50mm 56°~6° DC Auto
(4 pin)
F1.4 ∞ - 0.3m
CS mount 3MP Varifocal Manual Focus Lens from FUJINON VS-M1550-A 3MP 15~50mm 20°~6° DC Auto
(4 pin)
F1.5 ∞ - 0.8m
CS mount 3MP Varifocal Manual Focus Lens from FUJINON VS-M880-A 3MP 8~80mm 38°~3° (1/3")
50°~5° (1/2")
DC Auto
(4 pin)
F1.4 ∞ - 1.5m


Fixed Prime (CS mount) Lens options for CV344, CV343, CV346, CV345, CV365, CV366
  Part No. Megapixel Rating Focal Length Horizontal AOV Iris F-Stop
Fixed Prime CS mount lens V-555.0-5MP-VIS-IR 1/2 5MP 5.0mm 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7") F2.0 0.8m - ∞
Fixed Prime CS mount lens V-557.6-5MP-VIS-IR 1/2 5MP 7.6mm 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7") F2.0 1.5m - ∞


Full-HD  mini 3G-SDI  Compact Broadcast POV Camera with CS mount

Camera Control Application

  1. Download Camera Control Software HERE
  2. Use USB to RS485/RS422 Converter (CV-USB-RS485)
  3. Use cat5 or 24AWG twisted-pair wire (sold separately)
  4. Connect cable from RS485(+) terminal on Camera to T/R (+) on USB/RS485 converter
  5. Connect cable from RS485(-) terminal on Camera to T/R (-) on USB/RS485 converter
  6. Plug USB cable from USB/RS485 converter into USB port on Laptop or Computer (note ComPort#)
  7. Open up CamControl Program and match Serial Port to corresponding ComPort# used
  8. Select Baudrate in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > BAUDRATE
  9. Select Camera Address in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > CAM ID
  10. Select Open in CamControl Program
  11. Test connection by pushing MENU in lower right of CamControl Program - OSD Menu should come up on video signal
  12. Commands can also be sent without using OSD Menu
