The ORCHID® OR-841-HDSDI is a single 8.4" fully featured camera-top and field monitor system. The OR-841-HDSDI offers built-in Waveform Monitor, Vectorscope, Audio Bars, Built In Speaker with audio outputs, and several diagnostic tools. This monitor is ideal for use as a camera top or field camera assist monitor. The OR-841-HDSDI is equipped with two HD/SD-SDI inputs with switched output. Diagnostic tools include our exclusive ClipGuide feature, 16 Tri-Color Audio Bar Graph meters with peak hold and numeric display of headroom and peak levels, and real-time analysis of color space conversion gamut errors. Other standard features include factory calibrated screen, easy-to-navigate onscreen menus with RotoMenu control, 9 assignable function keys, adjustable color temperature, aspect ratio settings, a variety of screen markers, blue-only mode, monochrome mode, H/V delay, and 7 assignable GPI inputs.


Orchid Logo

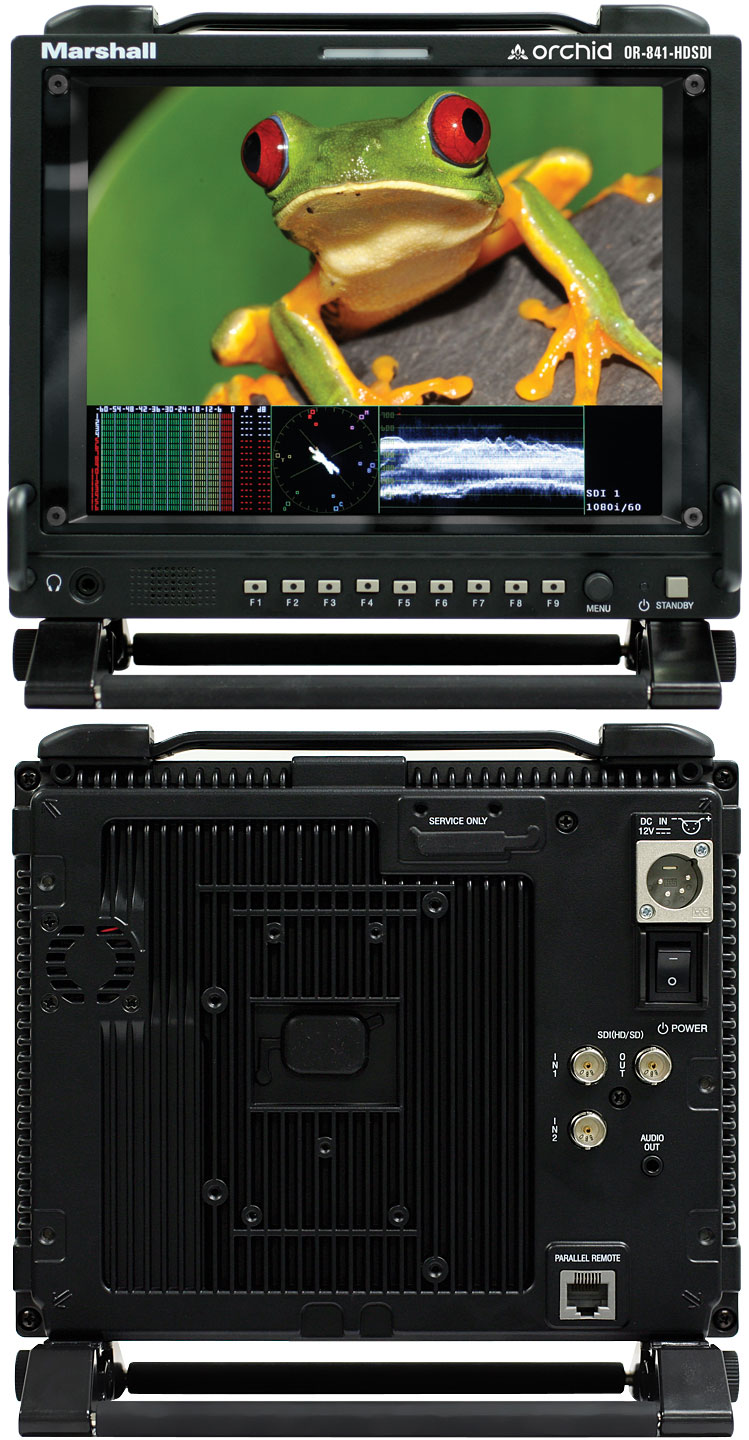

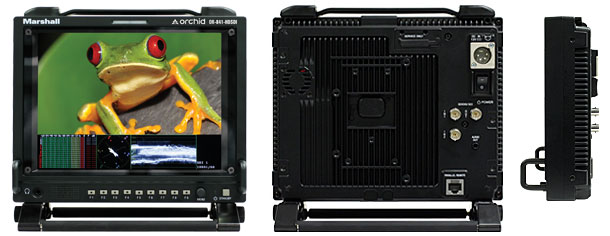

OR-841-HDSDI

High-End 8.4" Rack Mountable / Camera-Top / Portable Field Monitor

Owner's ManualSpec Sheet ORCHID Firmware Update
  • Real-Time Waveform Monitor
  • Real-Time Color Vectorscope
  • Auto White Balance Calibration
  • Sixteen 64-segment Tri-color Audio Meters
  • Tri-Color Tally Indicator
  • On-Screen Time Code
  • 7 assignable GPI inputs
  • Adjustable Color Temperature
  • Auto-Sensing Front Panel Headphone Jack
  • Auto-Sensing Rear Unbalanced Stereo Output
  • Adjustable Clipping Indicator
  • Precision Gamma Settings
  • Adjustable Color Temperature
  • Variety of Safety Markers
  • HD-SDI / SDI Inputs and Output
  • Supports 3 different Battery Adapters
  • Factory-installed Protective Screen
  • Automatic Color Calibration with ORCHID Color Probe
  • Adjustable / Detachable Stand with top handle

The OR-841-HDSDI 8.4" ORCHID® rack mountable / portable field monitor has all the features that customers have asked for and more. The OR-841-HDSDI is 4RU and has 9 user-assignable function keys as well as a rotary menu system.

The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x.

The OR-841-HDSDI will also de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. Also includes built-in front panel speaker and rear panel stereo input for audio monitoring.

The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-841-HDSDI comes standard with auto-sensing HD-SDI inputs and re-clocked output. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera.


FEATURE EXPLANATION

WAVEFORM MONITOR

WAVEFORM MONITOR

The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in various aspect ratios, positions, and transparency options. The Waveform Monitor not only monitors luminance, but can also warn the user for out-of-range conditions such as overexposure or "blacker-than-black" errors with fully user-adjustable warning limits.

REAL-TIME COLOR VECTORSCOPE

REAL-TIME COLOR VECTORSCOPE

The built-in Vectorscope allows users to monitor color gamut range in real time. It displays in full color and can also be displayed in various sizes, positions, and transparency options. The Vectorscope has adjustable gain from 1x to 5x.

CLIP GUIDE

CLIP GUIDE

The Clip Guide function operates with both the Waveform display and Monochrome/Color picture display. Both the upper and lower Clip Guide levels are user-adjustable in order to accurately display over-and-under exposures during different shooting conditions. For example, the upper Clip Guide limit may be set to 85 IRE and the lower limit to 10 IRE. With these settings, any exposures over the set limit of 85 IRE will display red on both the Waveform and picture (if selected). The same will be true for blacks under 10 IRE.

PRECISION GAMMA

PRECISION GAMMA

It is important that LCD monitors match the color and gamma characteristics of a CRT monitor. To emulate CRT gamma, the non-linear curves are corrected by software algorithms. This process is complicated because the three non-linear colors (RGB) should be corrected simultaneously. The ORCHID gamma correction overcomes this problem and ensures correct matching between panels and channels.

AUDIO LEVEL METERS

AUDIO LEVEL METERS

De-embeds and displays up to 16 channels of audio using sixteen 64-segment tri-color Audio Meters with user-adjustable reference levels. The Audio Level Meters provide numerical indicators and headroom levels, as well as peak hold function. Audio Channel Loss Warning prevents errors during monitoring.

FRONT AND REAR PANEL AUDIO OUTPUT

FRONT AND REAR PANEL AUDIO OUTPUT

Monitor any two channels at once through the front audio output jack or rear line output jack.

LARGE ON AIR TALLY

LARGE "ON AIR" TALLY

  • Follows Red tally command
  • High / Low Intensity setting
  • Easy to see from long distances


  • EXTENSIVE MENU SYSTEM

    EXTENSIVE MENU SYSTEM

  • 9 user-assignable function keys
  • Rotary dial
  • Easy menu navigation

  • WHITE BALANCE Diagram

    WHITE BALANCE

    White balance adjustment is essential in order to render colors correctly. To display colors correctly, gray scale should maintain identical color temperature. The white balance for ORCHID monitors defaults to D65 (6500K) so the user does not need to adjust white balance. LCD monitors have color-matching issues because white balance can be affected by a change in luminance level. Our unique color management system solves this problem.

    ONE BUTTON COLOR CALIBRATION

    ONE BUTTON COLOR CALIBRATION

    The ORCHID operating system includes an Automatic White Balance function that allows a "One Button" calibration procedure when used with a Konica Minolta CA-210 color analyzer. All ORCHID Series LCD panels are calibrated at the factory to ensure color conformity between screens.

    OPTIONAL ACCESSORIES

    Side accessory hood accessory Rack Mount Kit Accessory

    OR-8HA

    Side Handle

    Price: $53.00

    OR-8HO

    Hood

    Price: $211.00*

    OR-8RK

    Rack Mount Kit
    (mounts two units side-by-side)
    Price: $256.00*

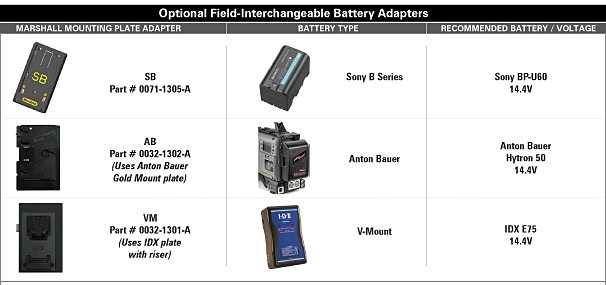

    Battery Compatibility display
    OR-841-HDSDI specifications
    Display (Viewing Area) 8.4"
    Resolution 1024 x 768
    Aspect Ratio 4:3
    Brightness (in cd/m²) 400
    Contrast Ratio 500:1
    Available Input Types HD-SDI x 2
    Available Audio Output (per screen) 2 Stereo (3.5mm - Front and Rear)
    Power Consumption 18W (1.5A)
    Power Supply DC 12V 4-Pin XLR
    Weight Approx. 4 lbs. (4.6 lbs. with Power Adapter)
    Dimensions 8.6"W x 8.2 "H x 1.7"D
    Available Battery Adapter Configurations "AB" - (Anton/Bauer) / "VM" - (V-Mount) / "SB" - (Sony B series)

    ORCHID is a registered trademark of Marshall Electronics, Inc.


    * Pricing does not reflect freight costs and applicable taxes and duties
    * Pricing, specification and features are subject to change
