Pro HD/4K Cameras

Marshall CV-PT-HEAD is a pan/tilt mount head that provides movement capability to Marshall fixed miniature POV cameras which is very useful in sportscast, newscast, reality TV, weathercast, television production, church production, live concerts and all sorts of applications where slight adjustments make a big difference in production quality.


Micro Pan/Tilt Head

Manual CV-PT-HEAD Brochure CV-PT-HEAD Instructions CV-MICRO-J2 Instructions CV-MICRO-J2 Cut Sheet Download Images

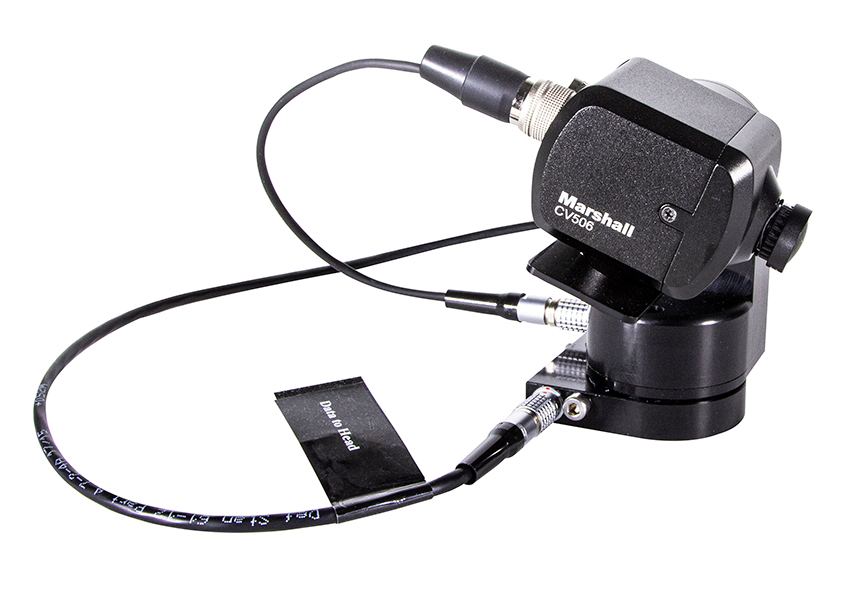

PT Head comes with patch-cable from base to camera
cable included
Marshall CV-PT-HEAD features smooth synchronous pan and tilt operation when used with Marshall miniature and compact cameras. CV-PT-HEAD also passes power and commands to the camera when used with CV-MICRO-J2, CV-QUAD-JS or other BR Remote controllers via patch-cable (included). CV-PT-HEAD is compatible with all CV500-series camera models, CV344~CV374 models as well as CV355-10X zoom camera making it a full PTZ solution.* Pricing does not reflect freight costs and applicable taxes and duties.
* All pricing, features, functionality, and other product specifications are subject to change without notice or obligation.

CV-PT-HEAD Micro Sized Setup

Micro Sized Setup

PT Head body is less than 3 1/2 inches tall and less than 2 inches wide creates one of the smallest PT footprints available with very big potential. CV-PT-HEAD comes with three mounting plate sizes to accommodate various sized cameras.

CV-PT-HEAD IP65 Weatherproof Rated Body

Durable IP65 Weatherproof Body

CV-PT-HEAD comes with an IP65 weatherproof rating which means its already dust-tight and protected against water ingress at high velocity from any angle. When paired with a Marshall weatherproof CV503-WP camera creates an excellent movable camera position that can be left out in wet and dirty environments.

CV-PT-HEAD Exceptionally Capable and Expandable

Amazingly Versatile

CV-PT-HEAD is a miniature PT camera head usable with Marshall miniature cameras. This micro pan/tilt platform is one of the smallest on the market with a sturdy weatherproof body and unique ability to be mounted inverted. Pair with a CV355-10X for a complete PTZ solution.

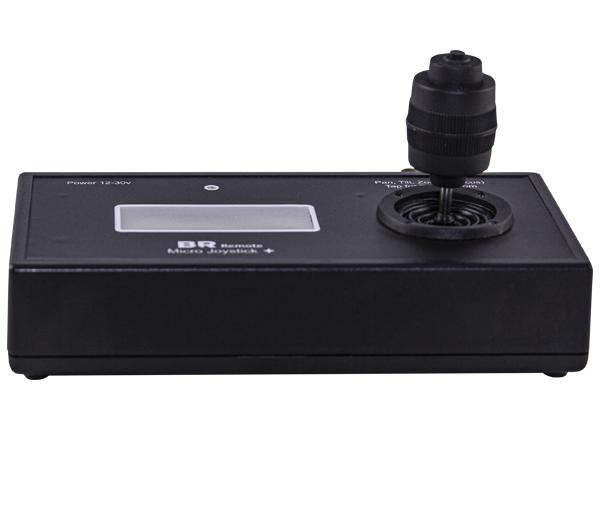

CV-MICRO-J2 Controller

For seamless plug-and-play, use the ultra-affordable CV-MICRO-J2 with full sized joystick controller (sold separately) providing great flexibility in an ultra-small package, Step-up options are available.

  • Smooth simultaneous pan & tilt movements
  • 350° horizontal pan range
  • 360° vertical tilt range
  • Durable IP65 weatherproof body
  • Standard1/4"-20 mount access from bottom
  • PT Head comes with patch-cable from base to camera
  • Mount on common camera stands or inverted (flip image)
  • PT head payload: 400 grams & 20-60mm wide camera
  • 12~35V @ 0.5A + camera (12V @ 1A)


The CV-PT-HEAD is suitable for use in Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Concerts, Confidence, Observation, Nature.
