High Performance BNC Connectors & Cable Assembly
These miniature, lightweight coaxial connectors are designed for use in Video, Multimedia and Broadcasting, Medical, Computer and Test instrumentation applications where frequent coupling and decoupling is necessary. Marshall offers a wide range of BNC's for every cable style, BNC cable assemblies and coax cables are available for any video application.
High-Performance 75W
Male

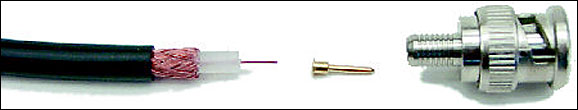

- Brass, gold plated center contact
- Teflon or polypropylene insulation
- Crimp or solder center pin
- Quick crimp strain relief
|
Part No.
|
Cable Type
|
|
BNC-1789
|
22 AWG RG-59/U, -62, -71M, -140, 210
|

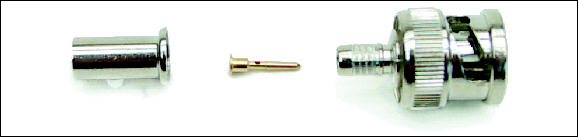

3-Piece Crimp Male
- Precision 50W connector
- Crimp or solder center contact
- Extended crimping area provides maximum cable retention
|
Part No.
|
Cable Type
|
|
CMC-88-59G
|
22 AWG, RG-59 with gold center pin
|
|
CMC-88-174
|
26 AWG, RG-174, 188
|
|
CMC-88-8218
|
W2947 Mini coax
|

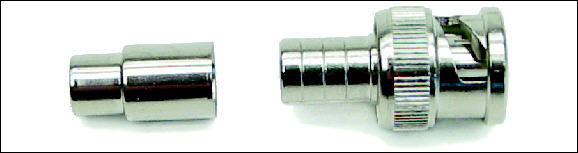

2-Piece Fastfit Crimp-on Male
- Ultra fast assembly: strip the cable, twist the center conductor
then crimp the shield!
- No need to crimp or solder the center contact
|
Part No.
|
Cable Type
|
|
CP-88-2-59
|
22 AWG RG-59, -62, Marshall W8441
|

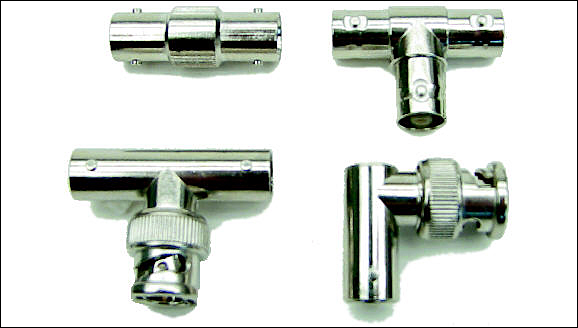

Adapters
|
Part No.
|
Description
|
|
A-2115G
|
F - F Coupler
|
|
A-2116
|
F - M - F "T" Coupler
|
|
A-2114
|
F - M Rt Angle
|
|
A-2117
|
F - F - F "T" Coupler
|

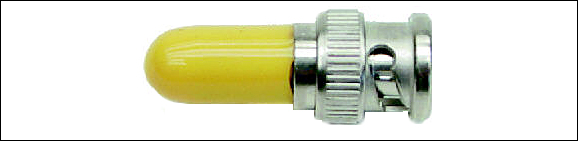

75W Terminators
|
Part No.
|
Description
|
|
A-2125T
|
5% 1 watt
|
|
A-2116
|
1% 1/2 watt
|
|
A-2117
|
0.1% 1/4 watt
|

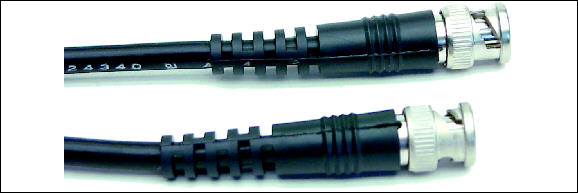

BNC Male-Male Patch Cords
- Heavy duty precision molded strain relief
- Brass center contact, silver or gold plated
- Standard colors are black cable with Custom molded colors available
|
Length
|
Standard
|
Hi Definition Superflex
|
|
|
Part No.
|
Part No.
|
|
1ft.
|
8401M
|
9401M
|
|
3ft.
|
8403M
|
9403M
|
|
6ft.
|
8406M
|
9406M
|
|
12ft.
|
8412M
|
9412M
|
|
25ft.
|
8425M
|
9425M
|
|
50ft.
|
8450M
|
9450M
|
|
75ft.
|
8475M
|
9475M
|

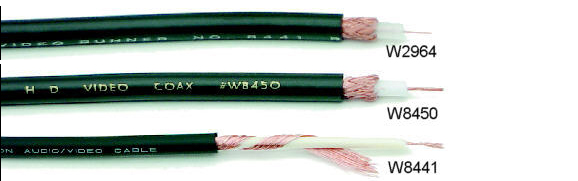

Video Coax Cable
|
W8441 - 1000
|
RG/59 22AWG Solid center braid shield, .242'
O.D.
|
|
W8450 - 1000
|
RG/59 22AWG CCS 19×34BC braid shield,
.242' O.D.
|
|
W2964 - 656
|
Miniature superflexible 24 AWG, 20×.12
OFC, served shield, .189 O.D.
|
|
W2965 - 500
|
Dual version of W9264
|
|
W8341-XX-1000
|
Miniature 27 AWG, 20×35 braid shield,
.157 O.D.
|

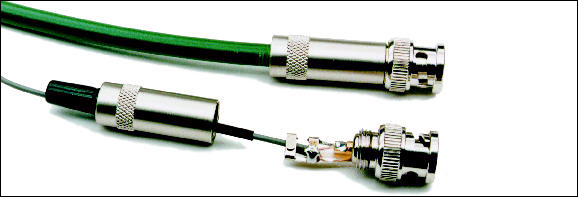

C-600
One BNC does it all - Saves time and frustration
when you can't find the cable
to fit the BNC or the BNC to fit the cable
- Accepts any cable, miniature through RG/59
- Solder center pin/crimp or solder shield
- 100% shielded screw-on metal cover
- Gold plated center pin
- Comes with optional strain relief for 0.05" to 0.2" cables available
|
