Universal Distribution Amplifiers

Marshall Broadcast Professional Universal Distribution Amplifiers. 12G Universal Distribution Amplifier provide reclocking distribution of an SDI video input signal to four SDI outputs. The input type, whether SDI, HD SDI or 3G SDI is auto detected and displayed via LED indicators.


UNIVERSAL DISTRIBUTION AMPLIFIERS

1 x 8 3G/HD/SD-SDI Reclocking Distribution Amplifier

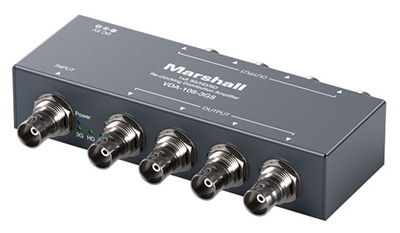

VDA-108-3GS new product
1 x 8 3G/HD/SD-SDI Reclocking Distribution Amplifier

The VDA-108-3GS is a compact and reliable distribution amplifier which accepts a single SDI input and provides eight identical outputs. All embedded data is passed transparently. Signals are reclocked and cable equalization is provided to support long cable runs. The VDA-108-3GS is useful for providing video to multiple destinations (recorders, displays, encoders) from a single video source.

  • 3G/HD/SD serial digital distribution
  • Eight separately buffered and reclocked outputs
  • Dual color LED indication of input lock and rate
  • Supported Video Formats
    • 480i59.94 "NTSC", 576i50 "PAL"
    • 720p / 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60
    • 1080i50, 59.94, and 60
    • 2048x1080p24 and 30 "2K"
  • Supports Level A and B
  • Passes all ancillary data
  • Passes all ancillary data
  • Compatible with USB power sources using 3rd party adapter cables
  • Less than 1.25 Watts fully loaded
  • Provides automatic input cable equalization up to 300m (1000ft)@SD, 150m (500ft)@HD/3G
  • Reclocking function reshapes the signal to improve transmission distance
  • Compact metal housing
$195.00
1 x 4 3G/HD/SD-SDI Reclocking Distribution Amplifier

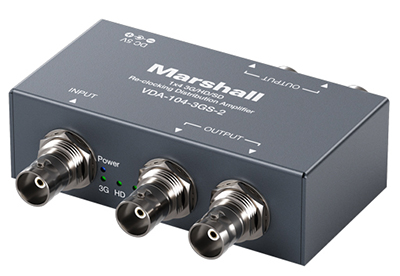

VDA-104-3GS-2 new product
1 x 4 3G/HD/SD-SDI Reclocking Distribution Amplifier

The VDA-104-3GS provides reclocking distribution of an SDI video input signal to four SDI outputs. The input type, whether SDI, HD SDI or 3G SDI is auto detected and displayed via LED indicators.

  • Supports 270Mb/s, 1.485Gb/s, and 2.97Gb/s data rates
  • Supported video formats:
  • SD: 480i59.94 "NTSC", 576i50 "PAL"
  • HD: 720p24, 25, 30, 50, 59.94, and 60
  •             1080i50, 59.94, and 60
                1080p24, 25, and 30
  • 3G: 1080p50, 59.94 and 60. Supports Level A and B
  • 2K: 2048x1080p24 and 30
  • Passes all ancillary data
  • Reclocking function reshapes the signal to improve transmission distance
  • Video format LED indication
  • Provides automatic input cable equalization up to 300m (1000ft)@SD, 150m (500ft)@HD/3G
  • Reclocking function reshapes the signal to improve transmission distance
  • Compact metal housing
$177.00

* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
