Mounting Configurations

Slide-shoe configuration

Slide-Shoe Configurations

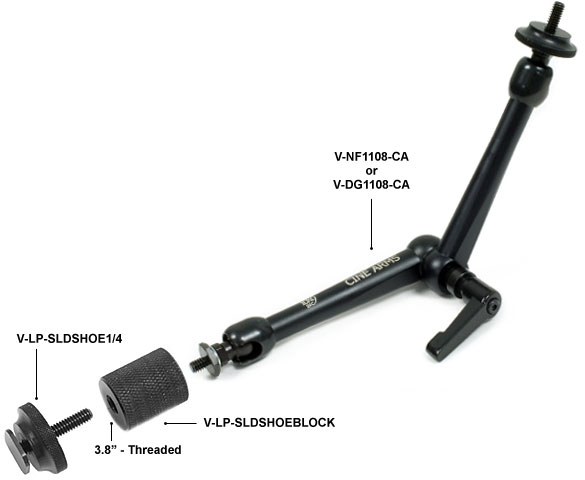

Fit the slide-shoe bolt (V-LP-SLDSHOE1/4) through the 3/8”-threaded side of the block (V-LP-SLDSHOEBLOCK) and screw in to the 1/4"-20-threaded side. Mount the V-NF1108-CA or V-DG1108-CA arm directly to the 1/4"-20-threaded side of the block. Tighten firmly to ensure slide-shoe is locked in place.

Slide-shoe configuration

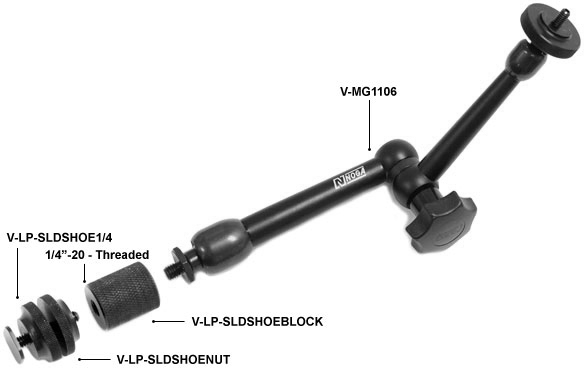

Reverse the block such that the slide-shoe bolt (V-LP-SLDSHOE1/4) attaches directly to the 1/4"-20-threaded side of the block (V-LP-SLDSHOEBLOCK) with extra spacer nut (V-LP-SLDSHOENUT). Mount the V-MG1106 arm directly to the 3/8”-threaded side of the block.
Tighten firmly to ensure slide-shoe is locked in place.
