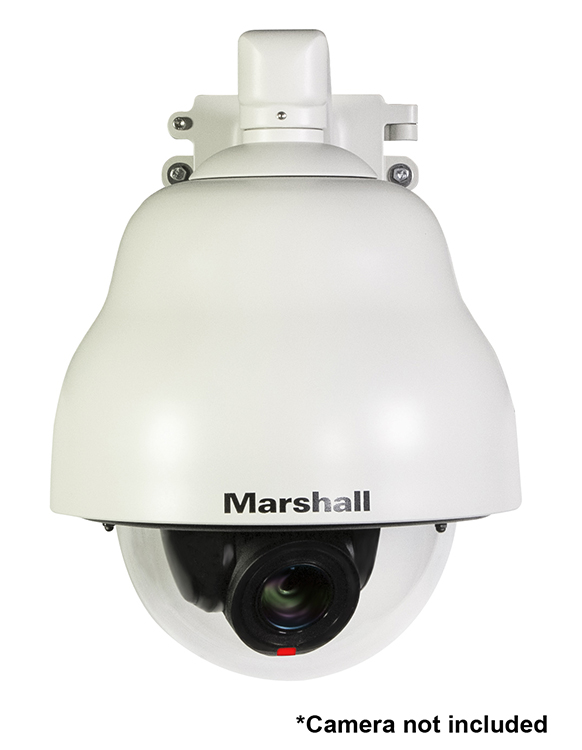

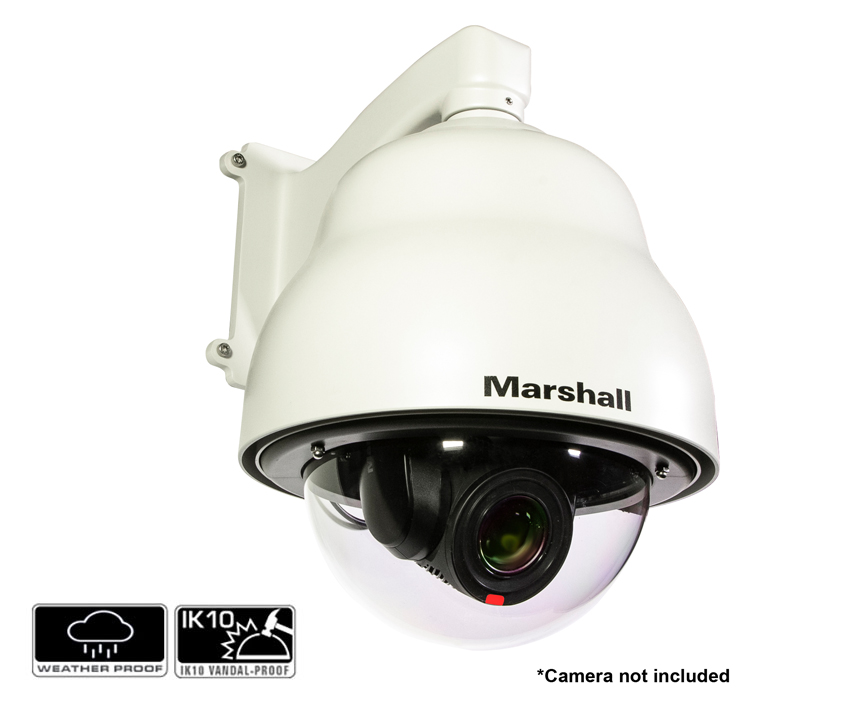

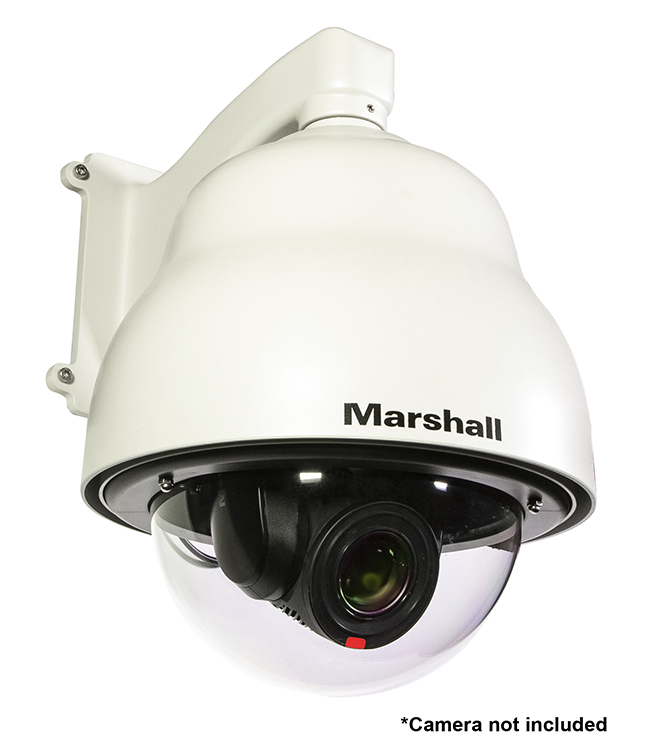

Marshall CV6XX-DH Outdoor Dome Housing for cameras enclosure is useful in outdoor applications requiring a high performance Zoom block, CS, C-Mount camera for remote observation, coach video, confidence monitoring, security, or outdoor broadcast situations.

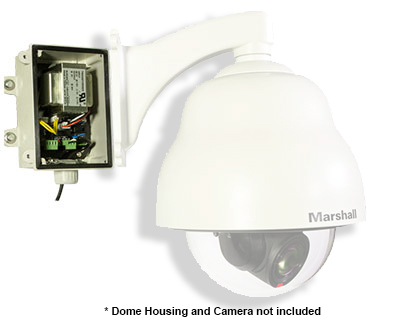

Optional Weather Proof Power Supply CV-H20-PWR



Optional arm CV6XX-DH-ARM to be used
without CV-H20-PWR for wall mounting.

• Secure weatherproof housing for CV630 and CV620 Series PTZ cameras
• IK10 Vandal proof compliance enclosure
• Die cast aluminum compliance enclosure
• Compatible Cameras:
  CV630-NDI CV630-NDIW CV630-IP CV630-IPW
  CV620-BI CV620-WI CV620-TBI CV620-TWI
• Built in Heater and Blower
• Fits Camera Size (mm): 174(W) x 185.5 (H) x 186.5mm (L)
• 9” Dome housing with 118mm transparent cover.
• Wall Mount Arm 360° Swivel - 90° Tiltable

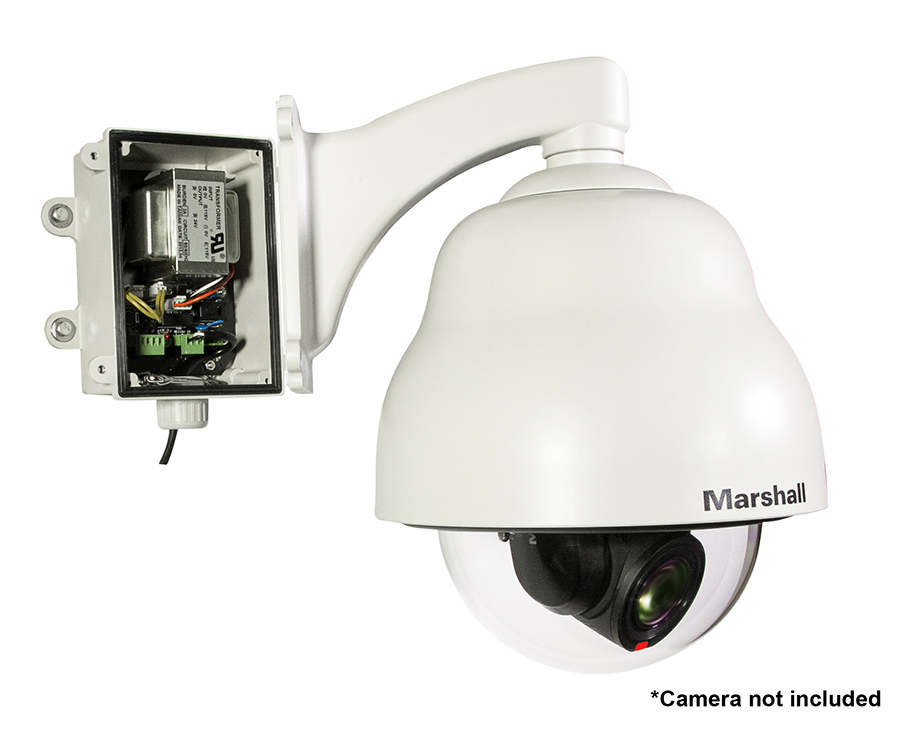

• Seamlessly connects with weatherproof CV-H20-PWR power supply 110v, 240v switchable

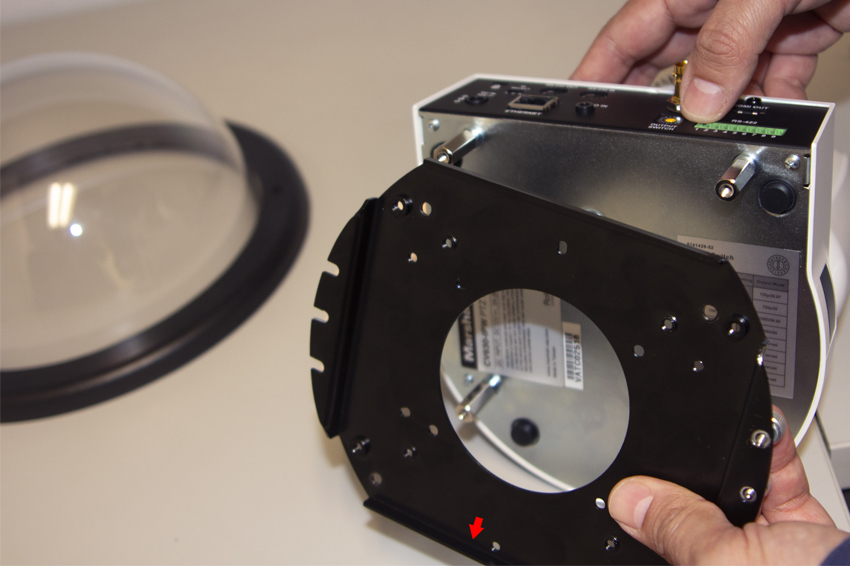

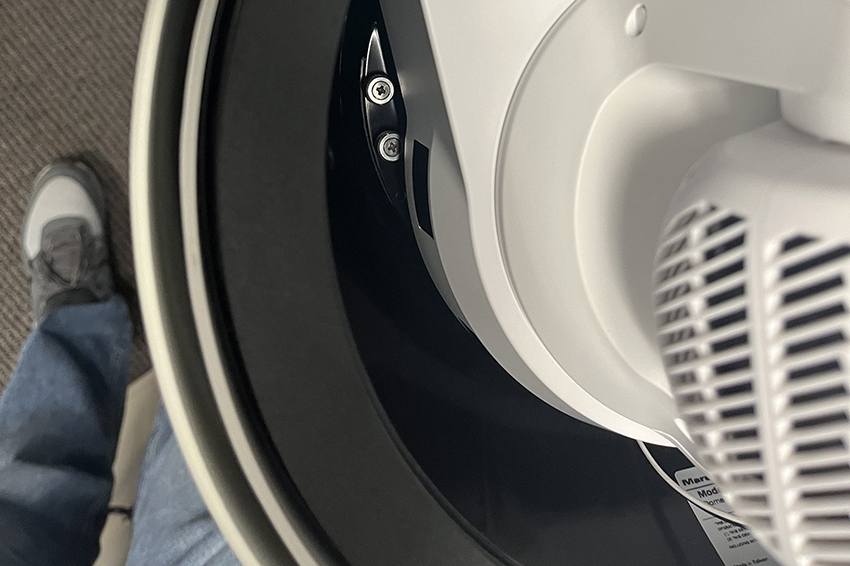

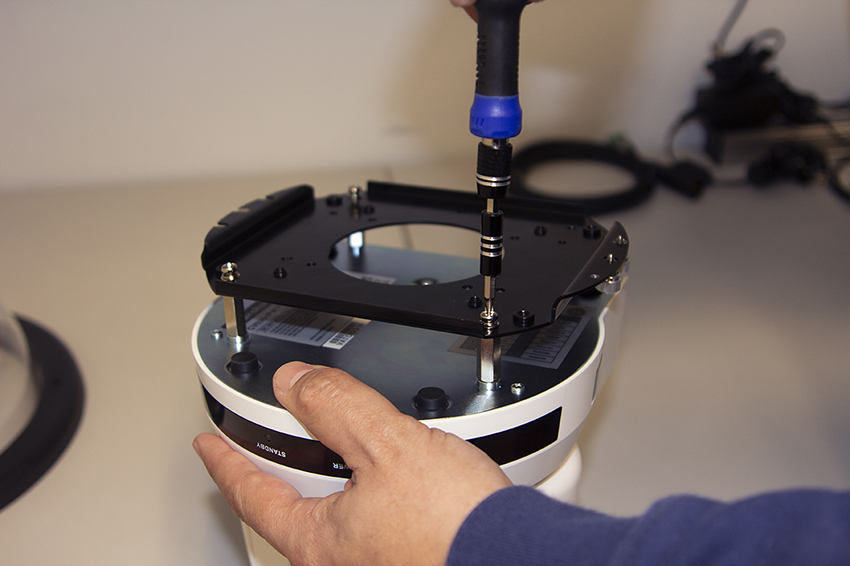

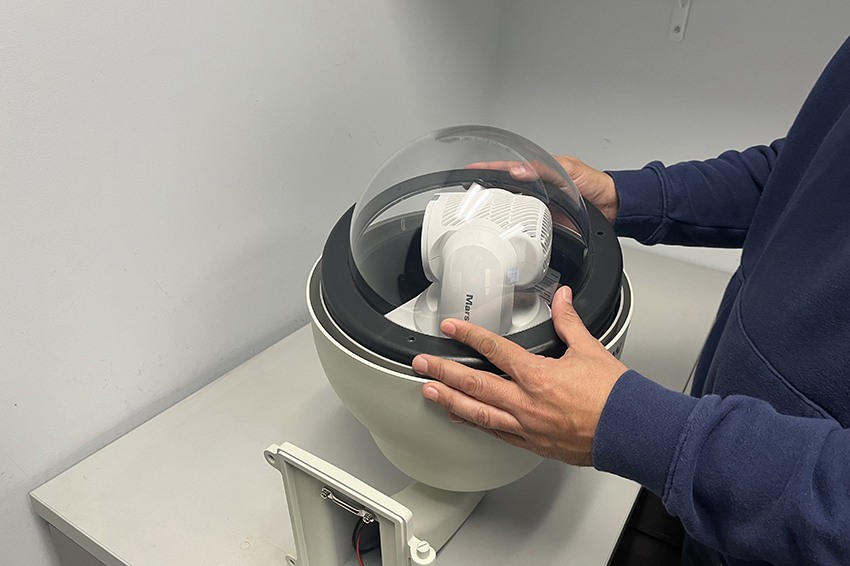

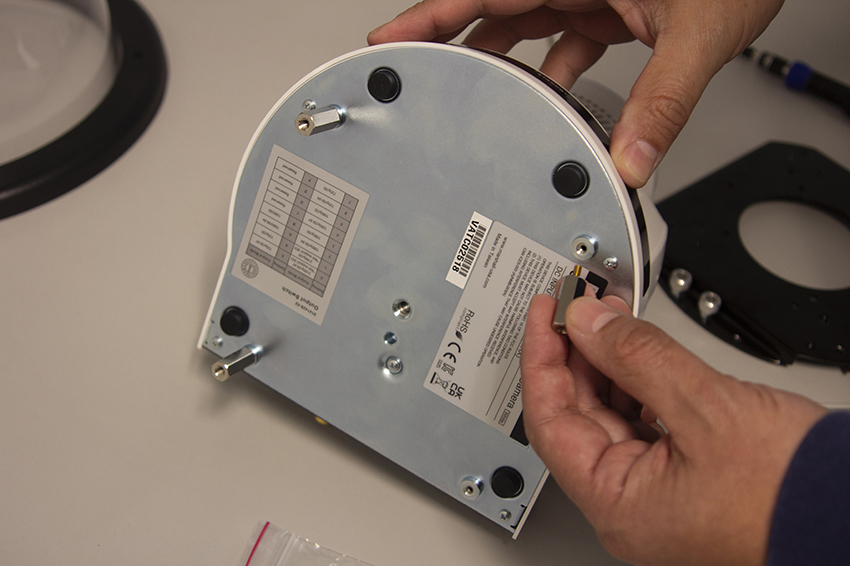

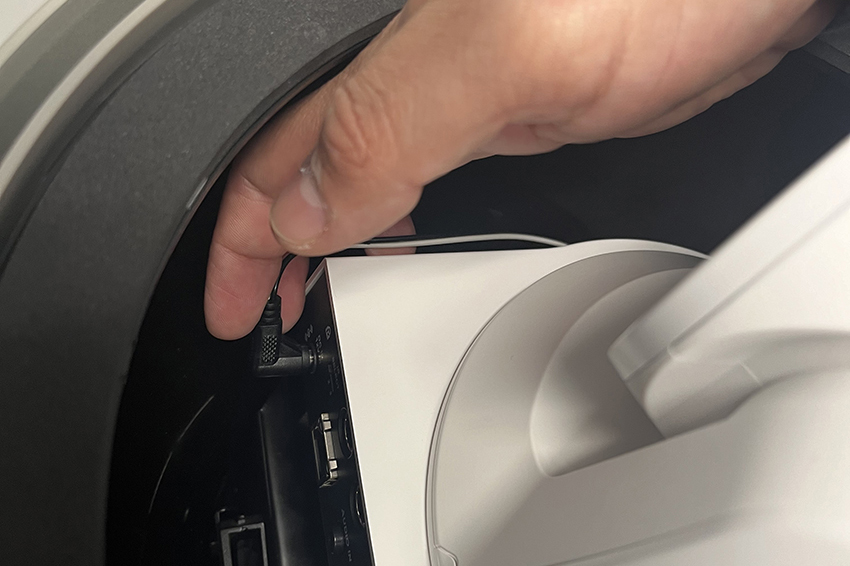

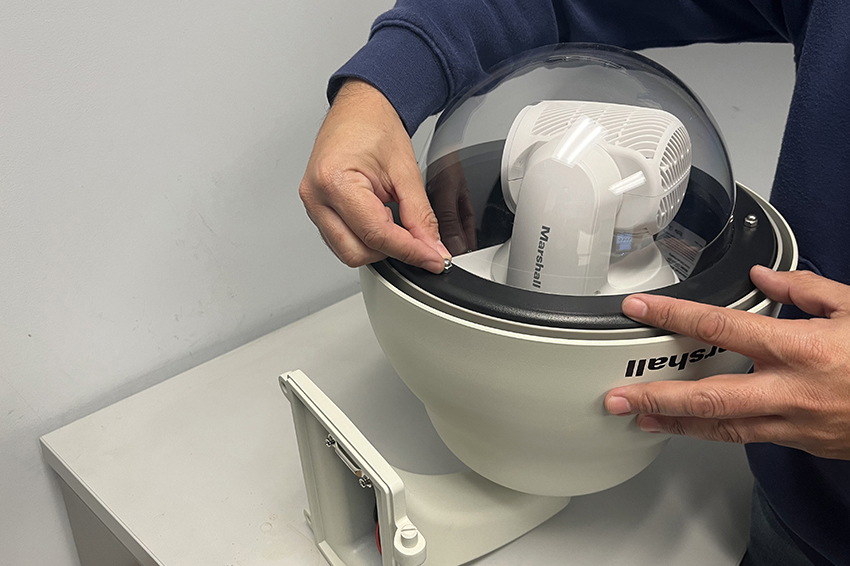

Installation Steps
