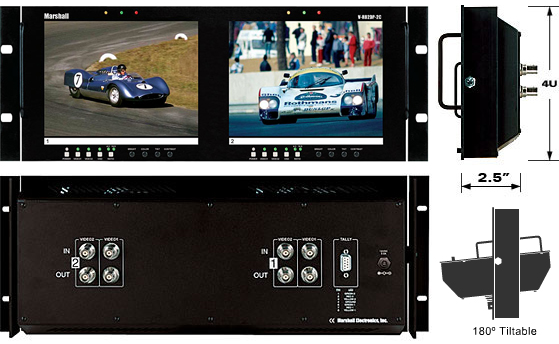

The Rack mounted and tiltable V-R82DP-2C represents leading edge technology in LCD imaging for broadcast and professional video applications featuring High Resolution, 1.2 megapixel, TFT screens with completely digital signal processing. NTSC and PAL composite video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb fi lter with exacting color space conversion. All video formats are scaled to fi t on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available.

• High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels
• 100% digital processing
• 10-bit Analog to Digital conversion
• High resolution scaling
• Wide viewing radius - 130° horizontal and vertical provides superior visibility
• 350 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
• 350:1 ratio of contrast between black and white luminance values
• 4:3 and 16:9 screen aspect ratios for DTV applications
• Direct access for all adjustments
• Easy to see three color tally indicators
• On Screen Display (OSD)
• Blue Screen for color adjustment
• Adjustment Settings Memory
• Ready to Rack Mount out-of-the-box



Standard inputs:

• Two Composite Video inputs per screen with automatic PAL/NTSC standard recognition
• Loop-through of all input signals

Our TFT-MegaPixel™ V-R82DP-2C is a direct replacement for 8 and 9-inch CRTs used in broadcast and professional video applications. Ready to rack mount in 4RU, this model saves valuable rack space, in addition to its low weight and power consumption when compared to similar CRT products. Analog signals are digitized using an advanced 10-bit process, and all screen formats are scaled to fit on-screen in the highest resolution using our proprietary program and state-of-the-art LSI.

V-R82DP-2C SPECIFICATIONS

Display (Viewing Area)	8.4 Inch diagonal (170.4mm W x 127.8mm H)
Resolution (Pixels)	800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
Dot Pitch	.213mm square pixel
Brightness (in cd/m²)	350
Contrast Rati	350:1
System	NTSC/PAL auto recognition
Inputs per Panel	2 (4) Composite per screen
Dimensions	19.12" w x 6.875" h x 2.5" d
Approx. Weight	5.4 lbs (2.4 kg)
Power Consumption	App. 36 Watt (5Amp 12 VDC Class 2 power supply included)

Applications:

Studio Monitor Wall • Remote/OB Van • EFP/ENG •Camera Shading • Fly Packs • VTR/DDR Replay • ISO Recording • Security /Surveillance
