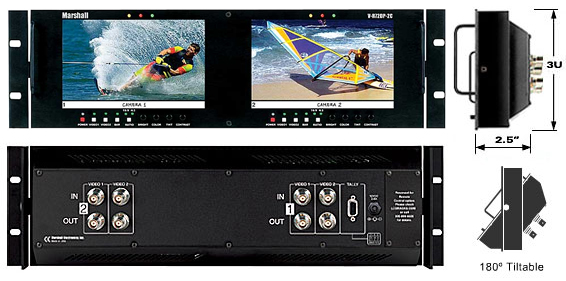

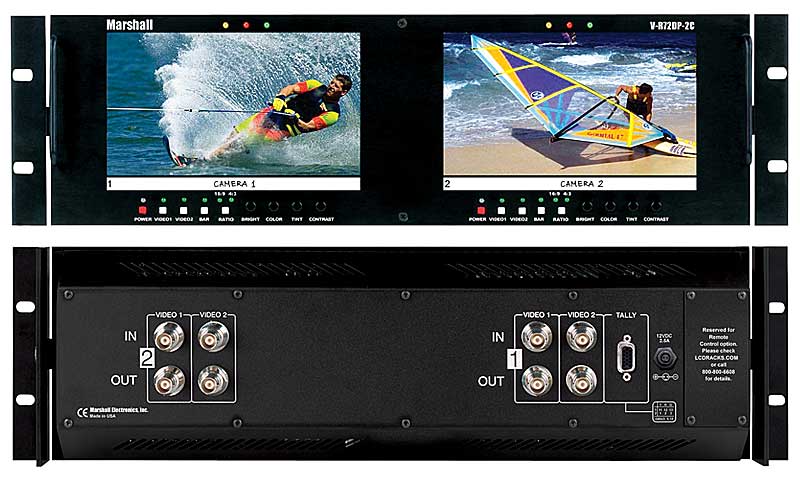

The Rack mounted and tiltable V-R72DP-2C represents leading edge technology in LCD imaging for broadcast and professional video applications featuring High Resolution, 1.2 megapixel, TFT screens with completely digital signal processing. NTSC and PAL composite video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb fi lter with exacting color space conversion. All video formats are scaled to fi t on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available.


V-R72DP-2C

Dual Screen 1.2 TFT MegaPixel Analog Composite PAL/NTSC Monitor Set

Owner's Manual (PDF)
Dual Screen TFT MegaPixel Analog Composite PAL/NTSC Monitor Set

  • High Resolution 7-inch wide screen
  • 800 x RGB x 480 Dots with 1.2 million pixels
  • 100% digital processing
  • Analog signals converted to 10 bit digital
  • High resolution scaling of all images
  • Wide viewing radius - 130 horizontal and 120 vertical provides superior visibility when the viewer is not directly in front of the screen
  • 380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light  and viewing conditions
  • 400:1 ratio of contrast between black and white luminance values
  • 4:3 and 16:9 screen aspect ratios for DTV applications
  • Automatic NTSC/PAL format detection
  • Easy to see three color tally indicators
  • Built in Color Bars
  • Blue Screen for color adjustment
  • Adjustment Settings Memory

  • Standard inputs:

  • 2 Composite Video PAL/NTSC per screen
  • Loop-through of all inputs signals

The Rack mounted and tiltable V-R72DP-2C represents leading edge technology in LCD/TFT imaging for broadcast and professional video applications. The V-R72DP-2C has the highest resolution TFT screens and completely digital signal processing. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using state of the art LSIs that incorporate 4 x 4 pixel interpolation with precision Gamma correction to product the best images available.


V-R72DP-2C SPECIFICATIONS
Display (Viewing Area) 7" (6.14" x 3.27")
Resolution (Pixels) 800 H x RGB x 480 V
Dot Pitch 0.105 mm x 0.16 mm
Brightness (in cd/m²) 380
System NTSC/PAL auto rec
Inputs per Panel Composite x 2 with loop-through
Dimensions 19.12"W x 5.14"H x 2.5"D
Approx. Weight 5 lbs
Power Consumption 12 VDC, 3.0 Amps
