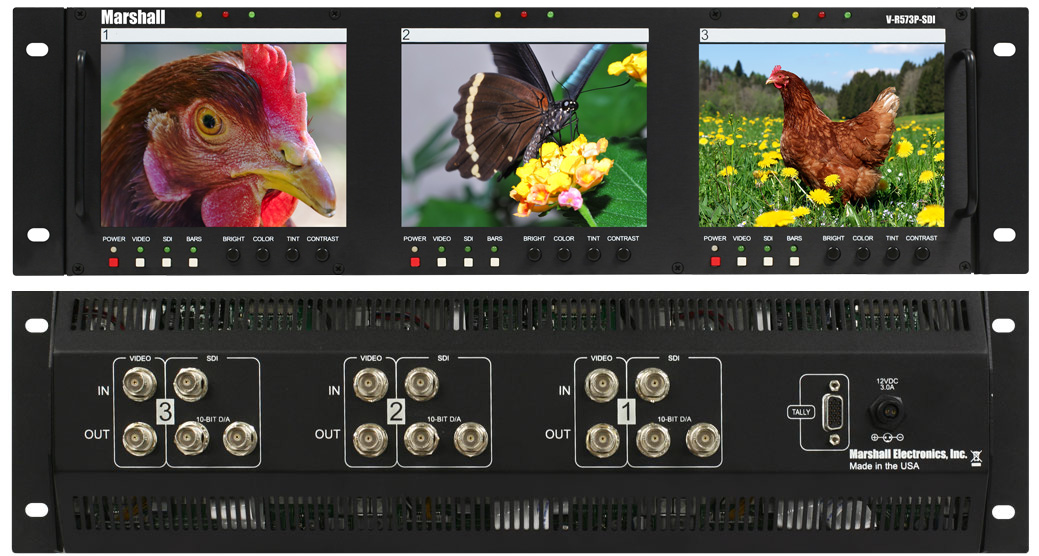

The V-R573P-SDI is a rack mounted unit that has three independently controlled 5.7" active matrixLCD panels with loop-through capability. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into a EIA standard 19" rack, three rack spaces high. Each of the three screens has individual front mounted selector buttons with LED's and color, tint, brightness and contrast controls. Each screen has two inputs (1 composite video NTSC/PAL and 1SDI) with loop-through and a built-in color bar generator.


Product No Longer Supported

V-R573P-SDI

Triple 5.7" Rack Mounted LCD Panel with Composite Video and SDI Inputs and reclocked loop-through feature

Owner's Manual (PDF)Spec Sheet (PDF)
Triple 5.7 inch Rack Mounted LCD Panel Unit with Composite Video and SDI Inputs model V-R573P-SDI

  • One Composite video input per monitor with active loop-through and 75 Ohm termination
  • One SDI (SMTPE 259M) Input per monitor with active loop-through and active clock recovery with automatic 75 Ohm termination
  • Low power consumption and heat dissipation for mobile applications
  • Individual color, tint, brightness and contrast controls for each panel
  • Three color, self-powered tally system provided for each panel
  • NTSC/PAL auto recognition
  • Built-in Color Bar Generator
  • Unique 180 degree tilt adjustment while mounted in rack
  • High Resolution 640 x 480 pixels

The V-R573P-SDI is a rack mounted unit that has three independently controlled 5.7" active matrix LCD panels. These 5.7" panels have 640 x 480 pixels producing a true high resolution image. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19" rack -- 3U high. Each screen has one composite video with active loop-through and one SDI (SMTPE 259M) input with active loop-through and active clock recovery with automatic 75 Ohm termination. Each of the three screens has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. The unit includes power supply, manual and features auto recognition for NTSC or PAL.


V-R573P-SDI specifications
Panel Number of Panels 3
Panel Size 5.7" LCD
Resolution 640 x 480
Aspect Ratio 4:3
Active Area 115.2mm x 86.2mm
Type LCD Panel
Brightness 400 cd/m²
Contrast 600:1
Color Gamut YUV, RGB
Backlight type LED
Adjustable Backlight No
Input Connectors CVBS Yes
SD-SDI Yes
Output Connectors CVBS Yes
SD-SDI Yes
Features Video Formats SD-SDI/NTSC/PAL
Loss of Input Curtain Yes
Self-Sensing Yes
Re-clocked/Re-Shaped Yes
Input Status Display Yes
Tally / GPI Tally
Controls on front Panel Yes
Pivot Angle Yes
Handles/Rack ears Yes
Power Voltage 12 VDC, 2.0 Amps
Power Switch No
Connector 2-Pin Twist-Lock
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 32°F to 104°F
Storage Temperature (C°) -4°F to120°F
Rack Unit dimensions 18.96" W x 5.2" H x 2.5" D
Weight (Main Body) 5 lbs
