The V-R1041DP-AFHD is a 10.4" high definition LCD monitor featuring our completely digital TFT-MegaPixel™ active matrix LCD platform. Weighing only 3.28 lbs, this monitor is ideal as a light-weight high resolution viewfinder or focusassist monitor.


V-R1041DP-AFHD

Standalone 10.4" HD/SD Monitor with Advanced Features

Owner's Manual (PDF)
TFT-MegaPixel 10.4-Inch HD Field Monitor with Multiformat Inputs

  • Durable metal enclosure
  • High Definition 2.4 MegaPixel screen with 1024 x 768 resolution
  • "V" Mount battery adapter included
  • Runs 4-6 hours on optional 80WH battery
  • Optical grade polycarbonate screen cover with Anti-reflective / Anti-glare coating
  • 100% digital processing
  • Analog signals converted to 10-bit digital
  • High resolution scaling of all images
  • Pixel-to-Pixel native resolution scaling
  • CRT style viewing radius -- 170° in all directions provides superior visibility when the viewer is not directly in front of the screen.
  • 300 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions.
  • 700:1 ratio of contrast between black and white luminance values
  • Zoom function
  • Optional Rack Mount Kit
  • Works with all SMPTE/ITU analog and serial digital production formats/rates
  • Easy-to-see three color tally indicators
  • Built-in Color Bars
  • Adjustment Settings Memory
  • Calibrated Color Temperature and Gamma
  • Includes ¼-20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available)
  • Includes universal voltage Class-2 power supply
  • Standard Inputs/Outputs:

  • HD-SDI (all formats)
  • SDI (ITU-R BT601 format)
  • Composite Video PAL/NTSC
  • Y/C (S-Video)
  • Component Video YPbPr
  • VGA to SXGA computer display
  • DVI-I

Optional Desktop Stand
Optional Desktop Stand
V-ST08

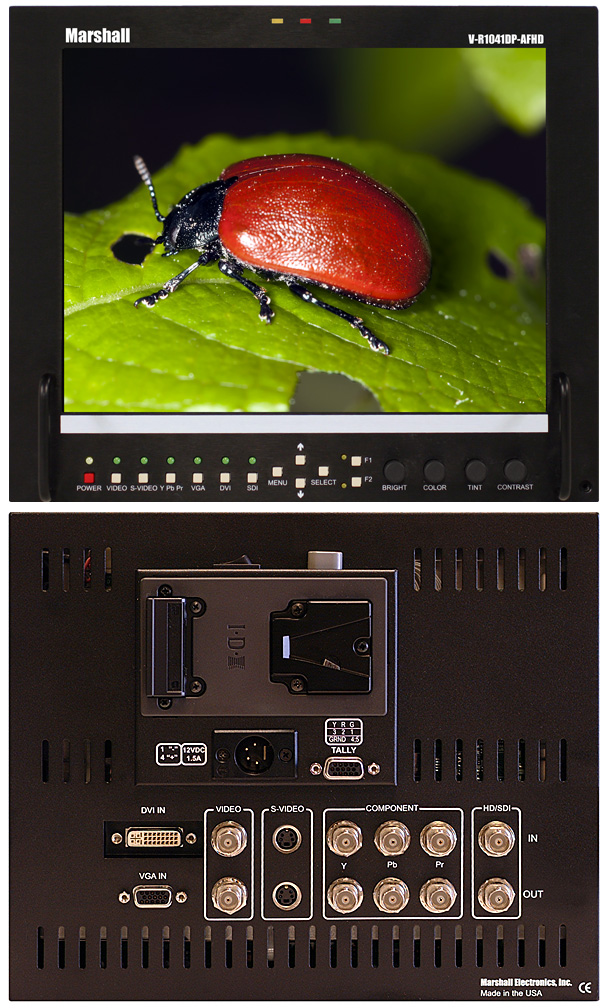

The V-R1041DP-AFHD features our completely digital TFT-MegaPixel high definition LCD screen with 2.4 million pixels, V-Mount battery adapter, 4-pin XLR power jack, and optical grade polycarbonate screen protection. Analog signals are digitized using an advanced 10-bit process with 4x oversampling and adaptive 5-line comb filter with exacting color space conversion. Video is scaled to fit onscreen in the highest resolution using a state-of-the-art LSI that incorporates 4x4 pixel interpolation with precision Gamma correction to product the best images available. Additional features include Pixel-to-Pixel native resolution scaling, setup memory, Zoom function, 6 Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions.


V-R1041DP-AFHD SPECIFICATIONS
Number of Screens 1 with Anti-glare surface treatment
Display (Viewing Area) 10.4 Inch diagonal (8.3" x 6.2") (211.2mm W x 158.4mm H)
Resolution (RGB Dots) 1024 H × RGB × 768 V (2.4 million RGB pixels) (16.7 Million colors)
Viewing Angles 170° H x 170° V
Dot Pitch 0.0685 (H) x 0.2055 (V) mm
Contrast Ratio 700:1
Brightness (in cd/m²) 300
System NTSC/PAL auto recognition for standard definition signals

APPLICATIONS:
  • Video assist
  • Talent Monitor
  • Signal confidence monitor
