Dual 10.1" 3G HD Rackmount Monitor with IMD function

Owner's ManualDownload Images

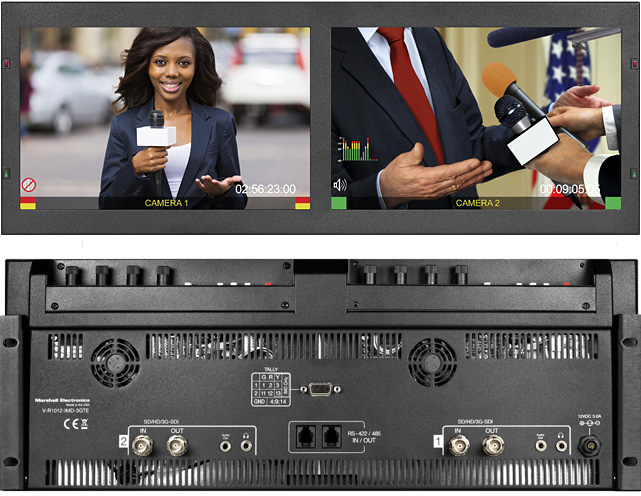

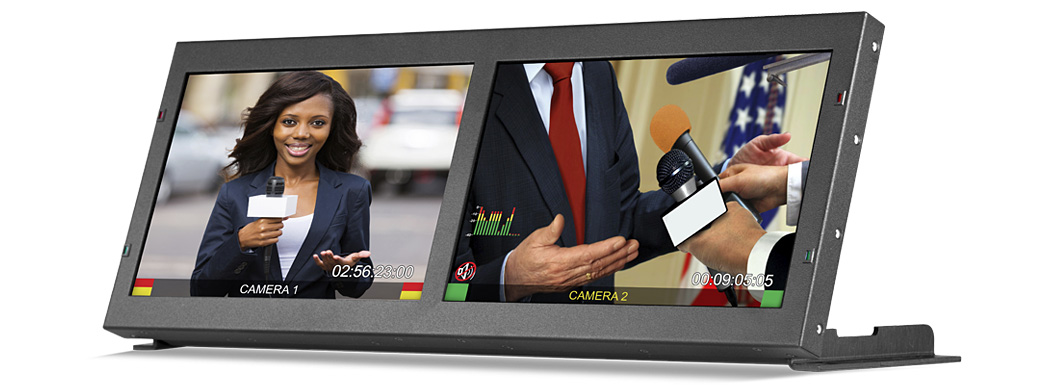

    Dual Broadcast 3G HD truck edition  Monitor with IMD function side view
    side view
  • No need for external Under Monitor Display -- "all-in-one" In-Monitor Display solution
    without added depth
  • Supports the following protocols: Image Video / NVISION / TSL / MEI
  • 1280 x 800 RGB Dots with 2.4 million pixels
  • 16.7 million colors
  • High resolution scaling / high quality deinterlacing
  • Ultra-wide viewing radius -- 170 degree horizontal and vertical provides superior visibility
  • 500 cd/m² luminance produces enhanced image quality in varying light and viewing conditions
  • 800:1 ratio of contrast between black and white luminance values
  • Three-color on-screen "soft" tally indicators (Red / Green / Amber)
  • Two LED color tally indicators (Red / Green)
  • On-Screen Audio Presence Indicator
  • On-Screen Video Time Code
  • RS-422 / 485 connection with loop-through for control communication / IMD functionality
  • Field upgradeable firmware capability via RS-422 / 485 port
  • Direct access for adjustments of brightness, contrast, and color
  • Multiple Frame Marker Overlays with Center Mark
  • Pixel-to-Pixel mode
  • Blue Gun for color adjustment
  • Adjustment Settings Memory

The V-R1012-IMD Rackmount monitor is a cost-effective, fully integrated solution designed for exceptional functionality while saving precious rack space. Dual 10.1" 1280 x 800 LCD panels with IMD (In-Monitor Display feature) support video time code, tri-color "soft" tally, and audio presence indicators with 3G/HD-SDI inputs.

V-R1012-IMD-3GTE applications:

• Live Broadcast • Broadcast Units • HD OB Truck • Closed Captioning • Confidence Monitoring • Audio Monitoring


V-R1012-IMD-3GTE specifications
Panel Number of Panels 2
Panel Size 10.1" Diagonal
Resolution 1280 x RGB x 800
Aspect Ratio 16:10
Type LCD Panel
Brightness 500 cd/m²
Contrast 800:1
Color Gamut YUV, RGB
Viewing Angles 150° x 150°
Backlight type LED
Features Compatible Input Formats SDI / HDSDI Inputs:

3G-SDI Inputs:
3G - Level A and Level B
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
Tally Yes
Closed Caption Yes
Pre-set Gamma points Yes
Self-Sensing Yes
Re-clocked/Re-Shaped Yes
Input Connectors 3G-SDI Video Input (Per Screen)
1 x BNC Female (75 Ω)
Output Connectors 3G-SDI Video Output (Active Output, Per Screen)
1 x BNC Female (75 Ω)
Audio Outputs Embedded Audio SDI Yes
Headphones Yes
Input Status Display Yes
Audio OSD Audio Bars Yes
Channels Yes
Control Inputs Tally / GPI Yes
RS-485/422 w/ Loop-Through Yes
Ethernet No
Handles/Rack Ears Yes
Power Voltage 12 VDC
Consumption 3.0A @ 12VDC (36 W)
Power Switch Yes
Connector 2-Pin Twist Lock
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 57° F to 104° F (15° C to 40° C)
Storage Temperature (C°) 14°F to122°F (-10° C to 50° C)
Unit dimensions 18.94" W x 6.95" H x 1.74" D
Weight (Main Body) 6.5 lbs
