False Color filter, Aspect ratio settings, blue-only mode, and monochrome mode are a few of the advanced features which make the V-MD503 and V-MD434 at home in any broadcast environment. Pixel-to-Pixel mode also allows native display of any incoming image format.


V-MD503

Triple 2RU 5" High Resolution LCD Rack Mount Monitor with Modular Inputs/Outputs

Owner's Manual (PDF) Spec Sheet (PDF)

Marshall Electronics proudly presents the MD series of rack mount monitors that offer a flexible modular solution to system integration. These new rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

The V-MD503 offers three high resolution 800 x 480 LCDs in one single configuration. along with excellent viewing angles. The V-MD503 includes Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, two user-definable function buttons, and more. A variety of modules will become available including the availability of 3G/HD/SDI with loop-through, Fiber-Optic input/output modules, and more.

Marshall's new MD monitors integrate Telecast Fiber System's TeleCube™ Fiber-Optic HD/SDI transmission input/output modules. These new fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.


V-MD503 specifications
Panel Number of Panels 3
Panel Size 5” Diagonal
Resolution 800 x RGB x 480
Aspect Ratio 15:9 Native
Active Area 108.0 x 64.8 mm
Type LCD Panel
Brightness 300 cd/m²
Contrast 600:1
Color Gamut YUV,RGB
Viewing Angles (CR>=10) 85° x 85°
Backlight type LED
Adjustable Backlight Yes
Features Video Formats 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
IMD Functions Yes
Tally Yes
False Color Yes
Peaking Filter No
HDMI CSC Auto With HDMI Module
HDMI Ratio Auto With HDMI Module
Pixel to Pixel Yes
Pre-set Gamma points No
Self-Sensing Yes
Modular Input Slot 1 Per panel
Re-clocked/Re-Shaped Yes
Video Input Connectors CVBS No
YPbPr No
SD-SDI Optional Module
HD-SDI Optional Module
3G-SDI Optional Module
HDMI Optional Module
DVI-I Optional Module
Optical Optional Module
Video Output Connectors CVBS No
YpbPr No
SD-SDI Optional Module
HD-SDI Optional Module
3G-SDI Optional Module
HDMI No
Embedded Audio from SDI Yes
Control Inputs Input Status Display Yes
Tally / GPI Tally
RS-485/422 w/ Loop Through No
Ethernet Yes
Controls on front Panel Yes
User-Defined Function Buttons Yes
RotoMenu™ Control No
Pivot Angle Yes
Handles/Rack Ears Yes
Power Voltage 12 VDC
Consumption 21 W
Power Switch Yes
Connector 2-Pin Twist-Lock
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 32°F to 120°F
Storage Temperature (C°) -4°F to120°F
Rack Unit dimensions 19.12” x 3.4” x 1.73”
Weight (Main Body) 2.52 lbs
Protective screen No

Network Control

V-MD series rack LAN port built-in web serverEach V-MD series rack includes a LAN port with a built-in web server. This allows the operator to visually monitor and control any or all V-MD series units that are connected to the LAN. Any function that is addressable from the front panel of a V-MD series monitor can be accessed via any Firefox® web browser -- even on a wireless device.** The rear panel LAN 100 port connects the unit to the LAN.

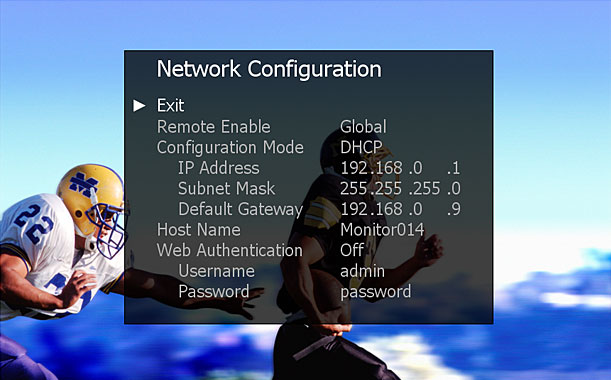

Once connected, the user simply locates the IP address of any one of the units connected to the LAN. This is accomplished by going to the MAIN MENU of any of the connected units and selecting the NETWORK CONFIGURATION submenu. This will then display the IP address of that unit. V-MD units are shipped with the DHCP mode enabled.

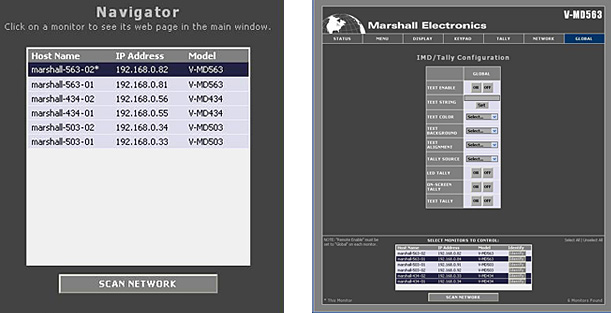

MD Network Control IP Address on screen sampleSimply type this IP address into the address bar of your browser and the home page for that unit will appear. It is possible to poll your LAN for all other MD units connected by accessing the NETWORK tab from the Top Menu.

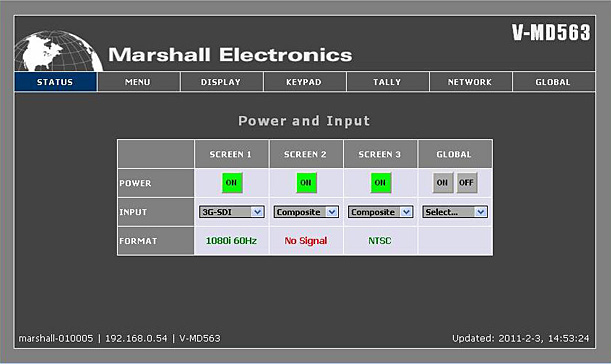

MD Network Control Power and InputThe user can then control multiple networked MD monitors at once using a single browser page. The user may select which monitor(s) they wish to control and send commands to those particular monitors. The browser provides real-time status of any connected monitor, ensuring consistent signals / feeds and so forth.

False Color Filter

Color filter scale

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people).


Filter display samples
OVEREXPOSED
Overexposed objects will display as RED
UNDEREXPOSED
Underexposed objects show as
DEEP-BLUE to DARK-BLUE
PROPERLY EXPOSED
Properly exposed objects will display elements of GREEN and PINK

IMD and Tally

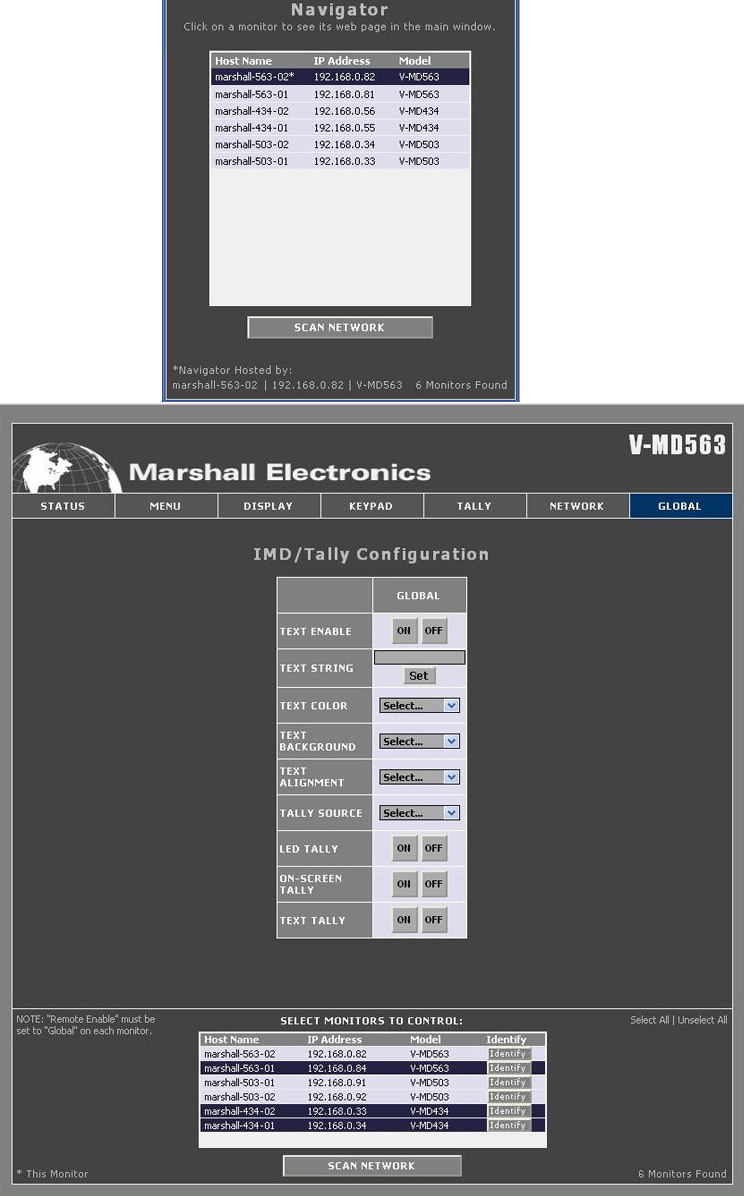

Use the "Text Enable" function to turn the MD Text feature ON. This will cause the "Text String" to appear on the lower portion of the screen. This provides the user with a 16 character on-screen text string. The color, background (opacity), and alignment of text can also be managed by the operator. This same menu allows control of Tally Source. Tally lights (both LED and on-screen) can be enabled/disabled and also set to match "Text String" color.


Optional Input Modules

MD-3GSDI-B

MD-3GSDI-B

3G-SDI/HD/SDI Input Module with Loop-Through
Price: $419.00
MD-HDSDIx2-B

MD-HDSDIx2-B

Two-channel HD-SDI Input Module with switched output
Price: $539.00
MD-HDIx2-B

MD-HDIx2-B

Two-channel HDMI
Input Module
Price: $219.00
MD-DVII-B

MD-DVII-B

DVI-I Input
Module
Price: $219.00

Optional Optical Module with TeleCube™ Inputs / Outputs

Optional Optical Module with TeleCube

MD-TC-B

TeleCube™ Input/Output
Base Module
Price: $369.00

TC-RxO

Optical Receiver Cube with ST connector
Price: $309.00

TC-RxE

Electrical Receiver Cube with BNC connector
Price: $189.00

TC-TxO

Optical Transmitter
Cube (FP Laser @ 1310nm) ST Connector
Price: $369.00

TC-TxE

Electrical Transmitter
Cube with BNC connector
Price: $149.00


  • 19.4 Mbps to 3 Gbps
  • Cool, efficient, reliable
  • Quick, easy installation
  • Supports embedded audio
  • Compatible with SMPTE 310M, 292M, 259M, 297M, 424M
  • Tight Optical Tolerances
  • Long Distance versions
  • CWDM laser TX options
  • Very Low system jitter
  • 10dB Return Loss @3GHz

* Input modules are optional and available at additional cost. More input modules to be offered in the future.

* Pricing does not reflect freight costs and applicable taxes and duties
* Pricing, specification and features are subject to change
