27 inch 2560 x 1440 Resolution 4K/2K Compatible Monitor supporting input formats up to 4096 x 2160. Four independent 3G-SDI inputs for viewing in a quad view mode. Ultra-wide gamut 10-bit panel is calibrated using Spectra Cal CalMan 5.2 software. QV-2710-3G can accept an HD, 2K or 4K signal. Quad-Viewer Monitor features an all-digital TFT-MegaPixel active matrix LCD system. Three different quad layouts are available and the side-by-side mode allows any two consecutive channels to be viewed on the screen at one time. In-Monitor Display allows on-screen text and tally indication.

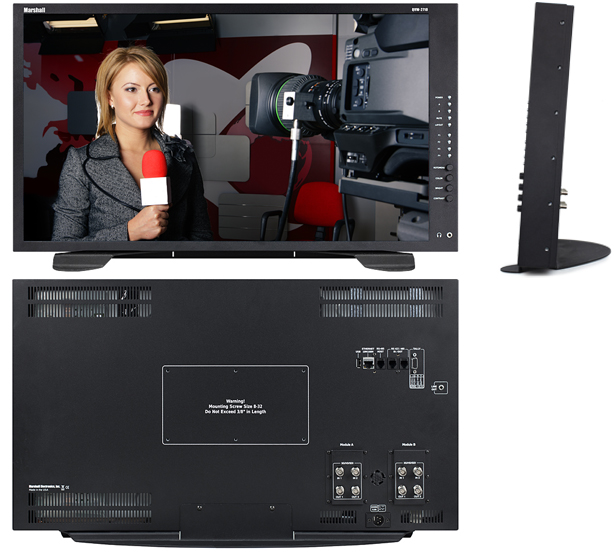

QVW-2710-3G

27" 2560 x 1440 Resolution 4K/2K Compatible Monitor supporting input formats up to 4096 x 2160

Owner's ManualQVW-2710-3G Spec SheetDownload ImagesFirmware Upgrade (ZIP)
  • modular design IMD
Optional Desktop Stand
Included Desktop Stand
V-ST23-32

The QVW-2710-3G has four independent 3G-SDI inputs to enable users to view full 4K (4096 x 2160) or UHD (3048 x 2160) formats. The wide gamut 10-bit panel is easily calibrated using Spectra Cal CalMan 5.2 software or equivalent. A Pixel-to-Pixel function allows viewing each quarter of the screen in full, original, resolution. Additionally, the QVW-2710-3G may be used as a quad-view display with each input coming from a different source.

The On-Screen Display shows embedded time code, embedded audio presence indicator and closed caption presence indicator for 608/708 captions. Stereo audio can be monitored for the selected SDI input through a front panel headphone jack as well as through a rear panel Line Out jack for use with an external amplifier. The QVW-2710-3G supports audio bars and markers. In addition, it has USB and Ethernet ports and an RS-422/485 port with pass-through.

Additional features include color temperature adjustment, aspect ratio settings, blue-only mode, and monochrome mode. Pixel-to-Pixel mode allows native display of any incoming image format. Users can set four function buttons to their desired settings for quick access and adjustment.


Applications:

• 4K/2K compatible monitor supporting input formats up to 4096 x 2160
• Control room confidence monitoring of 4 separate HD SDI signals
• Master Control monitor for critical evaluation of program output

Quad-Viewer

Allows viewing of 4 inputs on the screen at once. Each input source is scaled and positioned in real-time so that all 4 inputs can be seen. Besides the standard Quad layout, there are 3 other layouts (including Full Screen) to choose from:

quad-viewer configurations

QVW-2710-3G specifications
Panel Number of Panels 1
Panel Size 26.96"
Resolution 2560 x 1440
Aspect Ratio 16:9
Type LCD Panel
Brightness 350 cd/m²
Contrast 1000:1
Color Gamut YUV, RGB
Viewing Angles (CR>=10) 178° x 178°
Backlight type LED
Features Video Formats QVW-2710-3G: 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
Headphone Jack Yes
Audio Bars Yes
IMD Functions Yes
Tally OSD Yes
Blue-Only Mode Yes
Closed Caption Yes
Pixel to Pixel Yes
Pre-set Gamma points Yes
Self-Sensing Yes
Modular Input Slot 2
Re-clocked/Re-Shaped Yes
Video Inputs QVW-2710-3G 4K Formats: 4096 x 2160, 3840 x 2160
SD-SDI
HD-SDI
3G-SDI
3GSDI x 4 with active loop-through
Video Outputs QVW-2710-3G SD-SDI
3G-SDI
HD-SDI
Control Features Tally / GPI Yes
RS-485/422 w/ Loop-Through Yes
Ethernet Yes
Controls on front Panel Yes
User-Defined Function Buttons Yes
RotoMenu™ Control Yes
Handles/Rack Ears No
Power Voltage 24 VDC
Consumption 6 AMP@ 24VDC
Power Switch Yes
Connector 4-Pin XLR
Compliance Compliance CE approved
Environmental Operating Temperature (C°) 0° C - 35° C
Storage Temperature (C°) -10° - 50° C
Rack Unit dimensions 26" W x 14.60" H x 2.20" D
Weight (Main Body) 18 Lbs
Vesa Mount Pattern 200mm
* Input resolutions greater than 1920 x 1080 are scaled to fit the display's native resolution. Best scaling performance occurs with "progressive" vs. "PsF" input.
