Marshall's 3D-241-HDSDI is a 24-inch 1920 x 1200 LCD monitor designed for professional Stereoscopic 3D (S3D) applications. This monitor is only 2-1/4 inches (57mm) deep and uses advanced engineering to deliver natural, flicker-free 3D images by utilizing a circular polarizing filter method when used with battery-free (passive) glasses. The circular polarizing system used employs a 3D Arisawa Xpol® optical filter applied to the surface of the display. The 3D-241-HDSDI also has 4 HD-SDI inputs which provide the ability to monitor two S3D (right eye / left eye) HD-SDI signals. By using circular polarized glasses, the user can simultaneously view multiple 3D monitors in a production or controlroom environment. This monitor also supports IMD (In-Monitor Display) and Tally functions through RS-422/RS-485 connections.


3D-241-HDSDI

Full Resolution 24" Stereoscopic
3D LCD Monitor with HD-SDI

Owner's Manual (PDF) Spec Sheet (PDF)
Full Resolution 24 inch Stereoscopic 3D LCD Monitor with HDSDI

  • 1920 x 1200 LCD panel
  • High quality 3D display with circular polarizing technology
  • 4 HD-SDI inputs for simultaneous monitoring two S3D (right eye / left eye) camera rigs
  • 3D, 2D side-by-side, and difference map display options
  • Excellent color reproduction
  • The polarizing filter used provides a stable, flicker-free visual experience
  • Uses (passive) polarized glasses to watch 3D content
  • Supports IMD (In-Monitor Display) functionality
  • RS-422 / 485 connection with loop-through for control communication / IMD functionality
  • Supports the following IMD protocols: Image Video / NVISION / TSL / MEI

Marshall's new 3D-241-HDSDI is a 24-inch 1920 x 1200 LCD monitor designed for professional 3D applications. This monitor is only 2-1/4 inches (57mm) deep and uses advanced engineering to deliver natural, flicker-free 3D images by adopting a circular polarizing filter method when used with battery-free glasses. The circular polarizing system used employs a 3D Xpol® optical filter applied to the surface of the display. The 3D-241-HDSDI also has 4 HD-SDI inputs which provide the ability to monitor two 3D (right eye / left eye) HD-SDI signals. By using circular polarized glasses, the user can simultaneously view multiple 3D monitors in a production or multimedia environment. This monitor also supports IMD (In-Monitor Display) functions through RS-422/RS-485 connections (Quad-View mode).

multiple 3D rigs

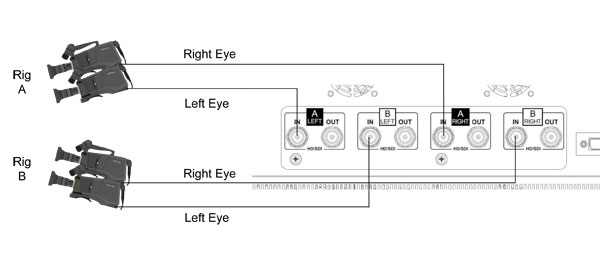

Two 3D camera rigs can be connected to the 3D-241-HDSDI simultaneously

When setting up a 3D camera rig it is important to be able to see various aspects of the stereo image to confirm proper alignment.
The 3D-241 HD-SDI includes several views to assist the rig operator in setup and operation during production.


Dual Channel Camera A & Camera B

3D monitor four screen view
Dual Channel View showing both Camera A, Left Eye / Right Eye at the top of the frame and Camera B Left Eye / Right Eye at the bottom of the frame.

Dual Channel Camera A & Camera B

3D monitor Single Channel Camera A or Camera B
Dual Channel View showing Camera A Stereoscopic 3D on the left
and Camera B Stereoscopic 3D on the Right.

Single Channel Camera A or Camera B

3D monitor Single Channel Camera A or Camera B
Single Camera view showing Left Eye on the Left and Right Eye
on the Right Single Channel Camera A or Camera B.

Single Channel Camera A or Camera B

3D monitor 3 screen view
Single Channel View of Left Eye and Right on the bottom of the frame with Left / Right Stereoscopic 3D image at the top.
Single Channel Camera A or Camera B

Single Channel Camera A or Camera B

3D monitor 3 screen view
Single Channel View of Left Eye and Right on the bottom of the frame with Left / Right Blended image at the top.

Single Channel Camera A or Camera B

3D screen monitor view with alpha channel
Single Channel View of Left Eye and Right on the bottom of the frame with Embossed Alpha channel image at the top.

Camera A or Camera B

3D full size view
Full Frame Stereoscopic 3D or Full Frame Blended view.

Embossed Alpha Channel View

3D alpha channel full view
Full Frame Embossed or Luminance Difference View shows the difference between Left Eye and Right Eye.

Vertical Viewing Angle

vertical view diagram
3D Stereoscopic LCDs using polarized filters must be viewed at the correct position to minimize left eye / right eye crosstalk.
3D glasses
Unique Left Eye Blue / Right Eye Red curtain color mode allows the user to easily locate the correct viewing angle for optimum performance.


Included Accessories

circular polarized 3D glasse

GL-C45

Circular Polarized 3D glasses.
2 pairs included


Optional Accessories

Rugged Road Case with wheels and pull-up handle

V-241-CASE

Rugged Road Case with wheels and pull-up handle

Oppenheimer Yoke

V-Y241

Oppenheimer Yoke for 3D-241-HDSDI and QV241-HDSDI

Table Base for Oppenheimer and Marshall 5/8 inch yoke mounts

V-YTB

Table Base for Oppenheimer and Marshall 5/8" yoke mounts

circular polarized 3D glasses

GL-C45

Circular Polarized 3D glasses

3D-241-HDSDI specifications
Panel Number of Panels 1
Panel Size 24.1” Diagonal
Resolution 1920 x RGB x 1200
Aspect Ratio 16:10
Active Area 518.4 x 324.0 mm
Type LCD Panel
Brightness 400 cd/m²
Contrast 1000:1
Color Gamut YUV, RGB
Viewing Angles 178° x 178°
Backlight type LED
Adjustable Backlight No
Features

Video Formats 1080p/1080i/720p/625i/525i
Loss of Input Curtain Yes
Color Temperature D65, D55 and D93
3D, 2D side-by-side, difference Yes
IMD Functions Yes
Tally Yes
Pixel to Pixel Yes
Closed Caption Yes
Pre-set Gamma points Yes
Self-Sensing Yes
Embedded Audio with SDI Yes
Input Connectors SD-SDI Yes
HD-SDI Yes
DVI-I Yes
Output Connectors SD-SDI Yes
HD-SDI Yes
Control Inputs
Tally / GPI Tally
RS-485/422 w/ Loop-Through Yes
Ethernet No
Controls on Front Yes
User-Defined Function Buttons Yes
RotoMenu™ Control Yes
Handles/Rack Ears No
Power Voltage 24 VDC
Consumption 5.5A @ 24VDC (132 W)
Power Switch Yes
Connector 4-Pin XLR Connector
Compliance Compliance CE approved
Environmental

Operating Temperature (C°) 32°F to 104°F
Storage Temperature (C°) -4°F to120°F
Unit dimensions 21.86” x 15.09” x 2.21”
Weight (Main Body) 15.5 lbs
Vesa Mount Pattern 75 mm and 200 mm
