Broadcast Micro 2MP HDSDI POV camera with 1/3-inch 2.1 Megapixel CMOS Sensor. 1-inch x 1-inch camera body. White Balance, Exposure, Gamma, Red/Blue Gain


CV150

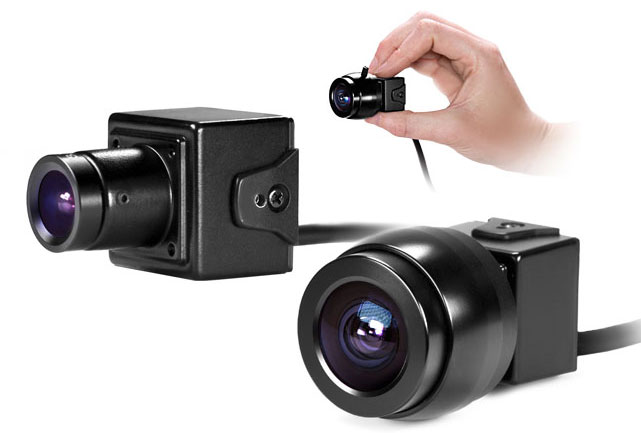

Micro 2MP HDSDI (3G) POV Cameras with Interchangeable lenses

CV150-CSB / CV150-MB:

1080i-59.94/29.97, 1080p-59.94/29.97,
720p-59.94/29.97fps

CV150-CS / CV150-M:

1080i-60/50, 1080p-60/50/30/25,
720p-60/50/30/25fps

Owner's Manual

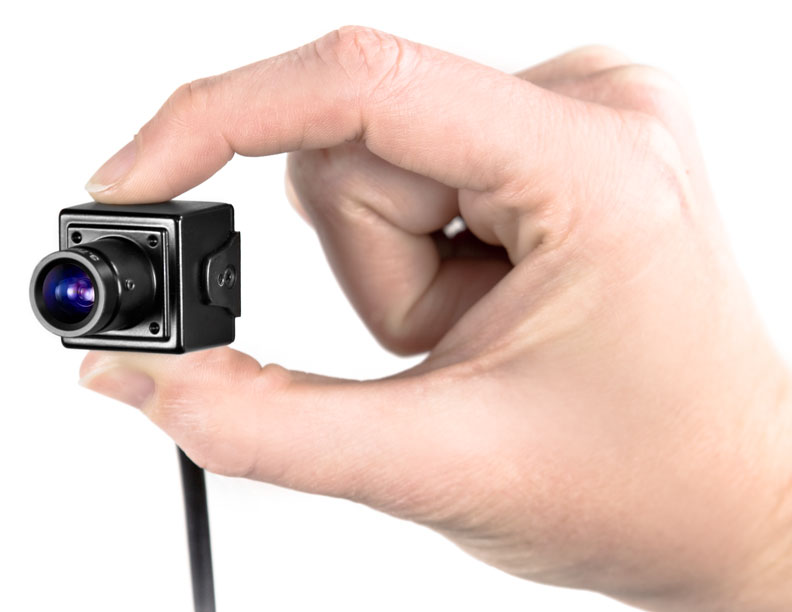

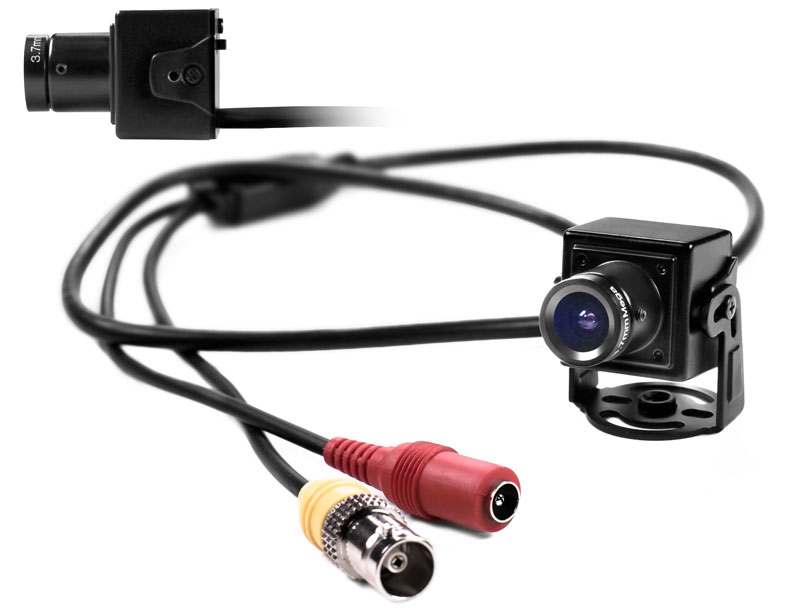

CV150-M POV compact miniature camera with M mount

CV150-M/MB

CV150-M - 60/50fps
CV150-MB - 59.94fps

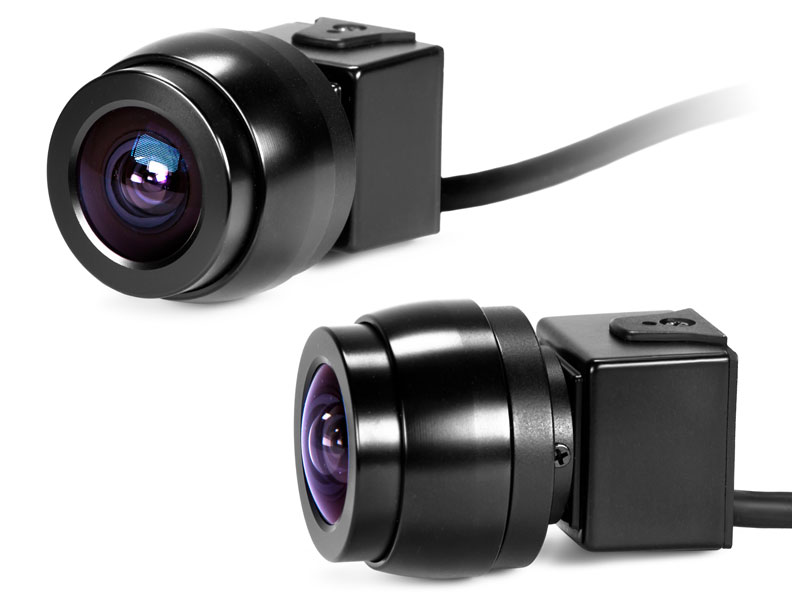

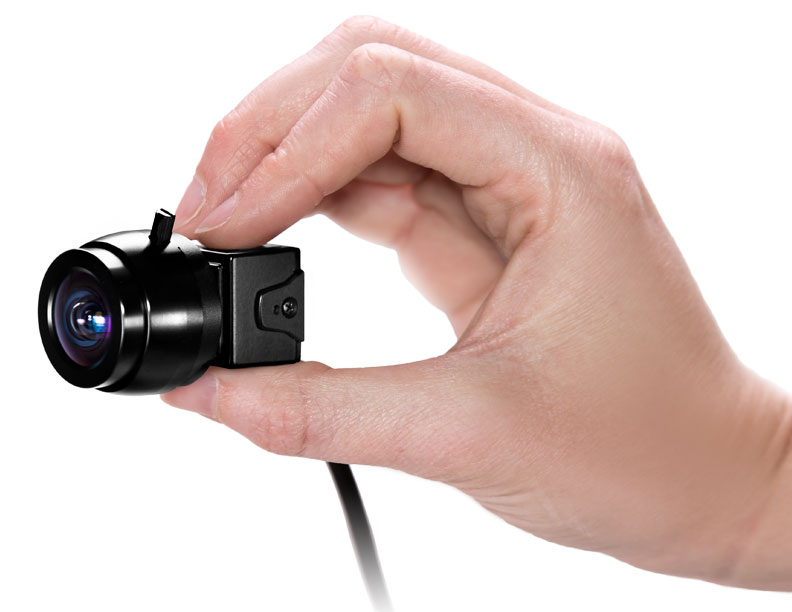

CV150-CS POV compact broadcast camera with CS mount

CV150-CS/CSB

CV150-CS - 60/50fps
CV150-CSB - 59.94fps

CV150-PH POV camera with 4.3mm Pinhole Lens

CV150-PH

4.3mm Pinhole Lens
60/50/30/25fps

  • 1/3-inch 2.1 Megapixel CMOS Sensor
  • Interchangeable Lenses (M12/CS/C mount)
  • CV150-CSB / CV150-MB: 1080i-59.94/29.97, 1080p-59.94/29.97,
    720p-59.94/29.97fps
  • CV150-CS / CV150-M: 1080i-60/50, 1080p-60/50/30/25,
    720p-60/50/30/25fps
  • Less than 1-inch x 1-inch camera body
  • HD-SDI/3G-SDI (BNC) output
  • 0.1Lux (F1.2 50 IRE, AGC Max) / 0.01Lux (DSSx4)
  • White Balance, Exposure, Gamma, Red/Blue Gain
  • Wide Dynamic Range (ACCE), DNR (2D+3D), Digital Defog
  • Advanced RGB Interpolator for HD Resolution
  • On Screen Display (OSD Joystick on rear camera panel)

CV150 Applications:

• Broadcast Television • Professional Sports • College Sports • OB Vans/Trucks • Concert & Studio Music Video • Reality TV • Performing Arts • Culinary Shows • Car TV Shows • Hidden Camera Shows • International Racing Circuits • Off-road Racing • Horse Racing • House of Worship • POV Video Shots

CV150 specifications
Item# Lens Mount Resolution Frame-rates
CV150-M 3.7mm M12 MP Lens (interchangeable) 1920x1080i, 1920x1080p, 1280x1080p 60, 50, 30, 25 fps
CV150-MB 3.7mm M12 MP Lens (interchangeable) 1920x1080i, 1920x1080p, 1280x1080p 59.94, 29.97 fps
CV150-CS CS Mount (lens sold separately) 1920x1080i, 1920x1080p, 1280x1080p 60, 50, 30, 25 fps
CV150-CSB CS Mount (lens sold separately) 1920x1080i, 1920x1080p, 1280x1080p 59.94, 29.97 fps

Available Lenses for CV150-CS/CSB
Item# Lens Mount
V-4604-CS 4mm F2.0 CS Mount
V-4606-CS-IRC 6mm F2.0 CS Mount with IR Filter
V-4608-CS-IRC 8mm F2.0 CS Mount with IR Filter
V-4612-CS-IRC 12mm F2.0 CS Mount with IR Filter
Mini Camera Stands and Mounts accessories

1/4"-20 Mounts

1/4"-20 Compact Camera Stands & Mounts,
Clamps, Articulating arms and more...
