V-LCD70W-SH - 7 " lightweight portable field - video assist monitor with sunhood. Perfect for DSLR or video camera tops. Supports onversion between HDMI and SDI inputs, waveform and audio metering, make it perfect for field production applications. Full HD resolution supports wide range of aspect ratios.


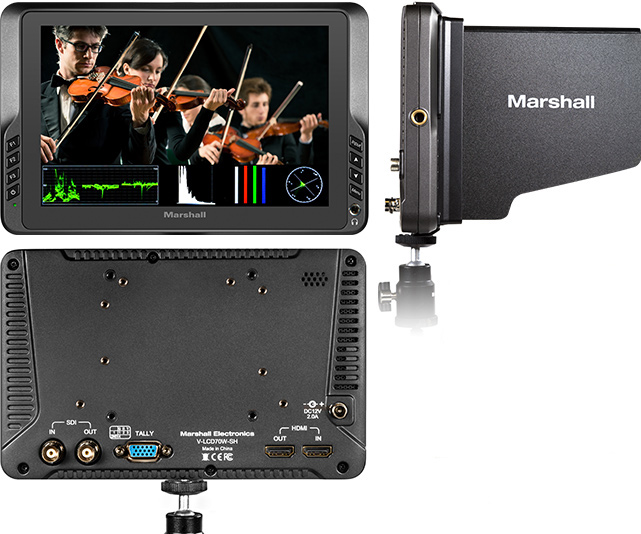

V-LCD70W-SH

7" Full HD+ 1920 x 1200 Lightweight Camera-Top Monitor with HDMI & SDI Inputs

Owner's Manual Spec SheetDownload Images
Video

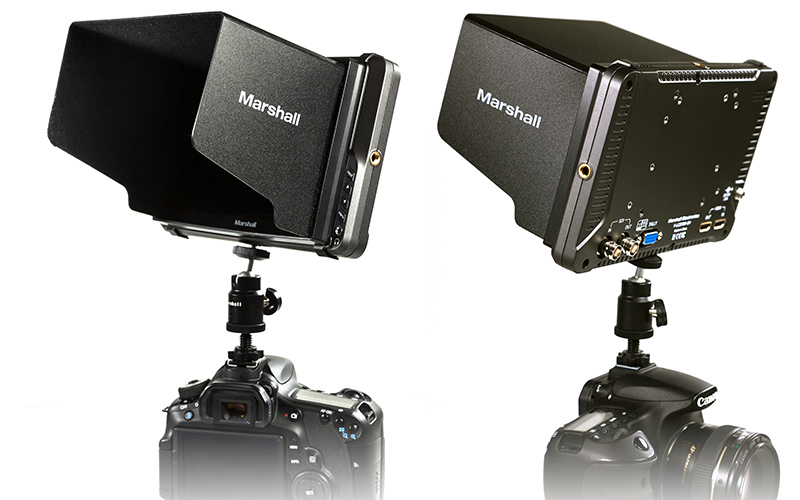

Assist Monitor on top of Canon DSLR
  • Convenient, straight-forward design
  • Intuitive controls and menus

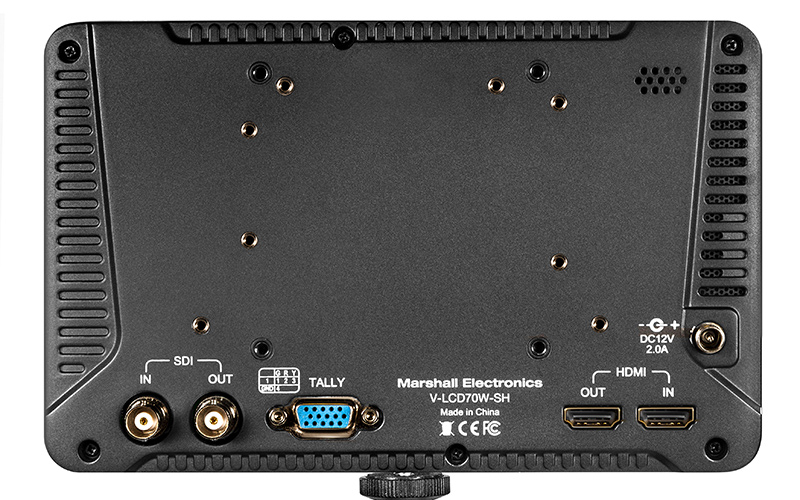

  • Both SDI and HDMI inputs with loop out
  • Light weight for comfortable use on camera top
  • Two color (Red/Green) tally light built-in

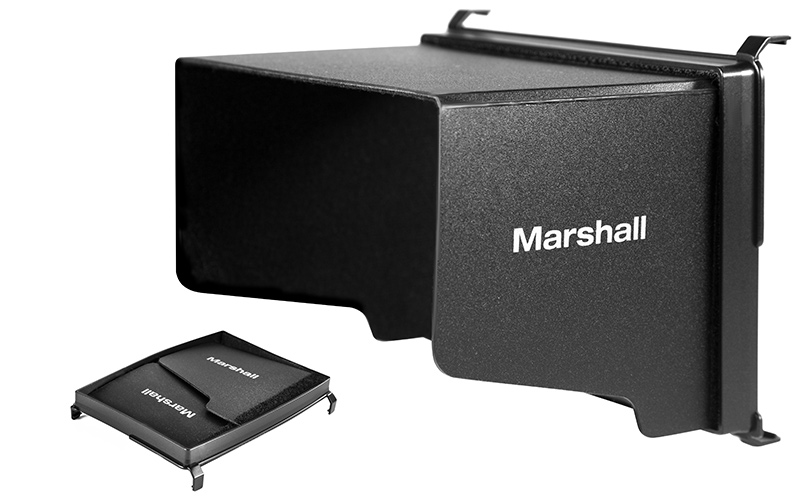

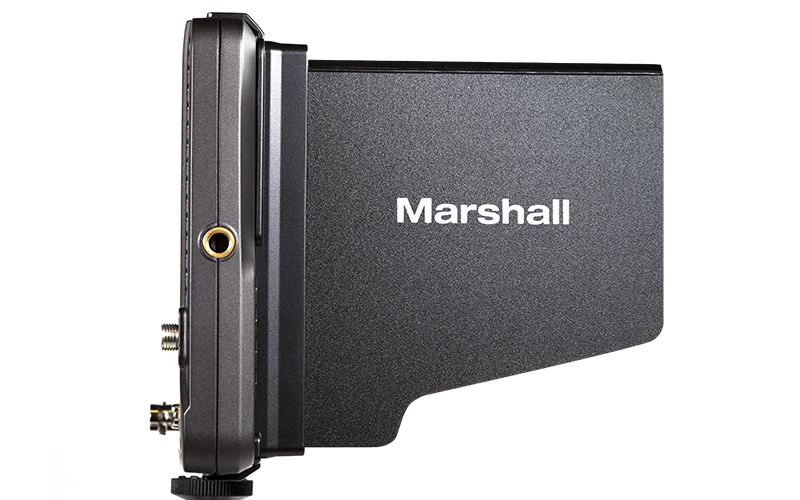

  • Sun Hood & Power adapter included
  • 1/4" threaded mounts on 4 sides plus VESA mount

  • The Marshall V-LCD70W-SH packs convenience and power in one light weight package. Optimized for DSLR or video camera tops at only 1.2 lbs (544 grams). Built-in features like conversion between HDMI and SDI inputs, waveform and audio metering, make it perfect for field production applications. Full HD+ resolution (1920 x 1200) supports wide range of aspect ratios.

      Special features including:

    • Convert between HDMI and SDI Inputs
    • On-screen Waveform, Color Vectors, Histogram
    • On-screen Audio Bar Display (16 channels)
    • DSLR Modes

    • * Batteries and battery charger are generic and considered equivalent to original manufacturer's equipment.

    False Color Filter

    Color filter scale

    The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

    To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people).


    Filter display samples
    OVEREXPOSED
    Overexposed objects will display as RED
    UNDEREXPOSED
    Underexposed objects show as
    DEEP-BLUE to DARK-BLUE
    PROPERLY EXPOSED
    Properly exposed objects will display elements of GREEN and PINK

    Peaking Filter

    The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, all color will be removed from the display and a black-and-white image will remain. The internal processor will display RED color on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have RED colored edges. This indicates that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has RED colored edges. Please note that this feature is most effective when the subject is properly exposed and contains enough contrast to be processed.

    Focus filter samples

    Quick Change Camera-Top Battery System

    Quick Change Camera-Top Battery System
    quick change base battery plate

    Base Plate

    Part# 0032-1308-A Price: $15.00

    No Tools Required

    Easily change the battery plate on your camera-top monitor using Marshall's Quick Change Camera-Top Battery System. The system consists of a base plate that mounts onto the back of the monitor and accepts different types of battery plates. The base plate and battery plate disengage with the twist of a single screw. No tools are required. Simply turn the screw to remove one battery plate and replace it with another.

    This system is perfect for rental houses, schools, and production studios where multiple cameras may be used with one monitor. When a user switches cameras, the battery plate on the monitor can be replaced in seconds. Marshall's Quick Change Battery System is designed save valuable time when switching easily between different pieces of equipment.

    Base Plate (Part# 0032-1308-A) is supplied with: V-LCD56MD, V-LCD70MD, V-LCD90MD, M-CT710, V-LCD71MD and V-LCD70-AFHD

    Dual universal  battery assembly for Canon and Nicon

    Dual DSLR

    Marshall Product # Description Price
    BP-LPE6-DUAL Canon E6 Dual uni battery assembly
    $39.00*
    BP-NEL15-DUAL Nikon EL15 Dual uni battery assembly
    $34.95*
    BP-NEL 3-DUAL Nikon EL3 Dual uni battery assembly
    $34.95*
    * Batteries are not included
    Marshall Camera-top monitor battery assembly for Panasonic and JVC

    Camcorder Batteries

    Marshall Product # Description Price
    7-CGS-D54-PM Panasonic CGA-D54 battery assembly M-LCD / M-CT7
    7-NP-F970-SL Sony NP-F970 battery assembly M-LCD / M-CT7
    7-NP-QM91-SM Sony NP-QM91 battery assembly M-LCD / M-CT7
    7-VW-VBG6-PV Panasonic VW-VBG6 battery assembly M-LCD / M-CT7
    7-BN-V438U-JM JVC BN-V438U battery assembly M-LCD / M-CT7
    7-BP970G-CM Canon BP-970G battery assembly M-LCD / M-CT7
    * Batteries are not included
    Anton Bauer Mount Battery Adapter

    Anton Bauer Mount Battery Adapter

    Marshall Product #   Price
    0032-1302-A1
    Anton Bauer Mount Battery Adapter
    $100.00*
    V-Mount Battery Adapter

    V-Mount Battery Adapter

    Marshall Product #   Price
    0032-1301-A1
    V-Mount Battery Adapter
    $100.00*
    • M-SM03
      Camera 1/4" Hot Shoe Mount. Attaches monitor to camera. Supports up to 7" monitors.
    • V-Y59U Yoke
      Universal Yoke Style Small Monitor Support Mount
    • CVM-8
      MINI Heavy Duty Pro Stand-Clamp (1/4"-20)
    • M-SC7
      Soft carrying case for 7" monitors. Contains a removable, padded section to strap, secure and protect your monitor

    V-LCD70W-SH specifications
    Panel Number of Panels 1
    Panel Size 7.0” Diagonal
    Resolution 1920 x 1200
    Aspect Ratio 16:10
    Active Display Area 94.5 (H) x 151.2 (V) mm
    Brightness 450 cd/m²
    Contrast 1000:1
    Color Gamut YUV, RGB
    Viewing Angles (CR>=10) 170° x 170° (H/V)
    Backlight type LED
    Adjustable Backlight Yes
    Features Compatible Input Formats 3G-HD-SDI Input
    525i/59.94, 60, 625i/50
    720p/25, 29.97, 30, 50, 59.94, 60
    1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
    1080i/50, 59.94, 60
    3G - Level A
    1080p/ 60, 59.94, 50
    HDMI Input
    480p59.94, 576p50
    720p/25, 29.97, 30, 50, 59.94, 60
    1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
    1080p/ 50, 59.94, 60
    1080i/50, 59.94, 60
    HDMI / SDI Conversions
    480i59.94, 576i50
    720p/25, 29.97, 30, 50, 59.94, 60
    1080p/23.98, 23.98sF, 24, 24sF, 25, 29.97, 30
    1080p/ 50, 59.94, 60
    1080i/50, 59.94, 60
    Color Temperature 5500K, 6500K, 7500K, 9300K, User
    Image Flip Yes
    False Color Yes
    Peaking Filter Yes
    Pixel to Pixel Yes
    Modular Input Slot No
    HDMI (1.4) Yes, with loop out or conversion to SDI
    3GSDI (HDSDI, SDI) Yes, with loop out or conversion to HDMI
    Input Status Display Yes
    Ethernet No
    Controls on front Panel Yes
    User-Defined Function Buttons Yes x 3
    Handles No
    Power Voltage 12 VDC
    Consumption 1.1A, 13W Max
    Power Switch Yes
    Connector Coaxial, center positive with locking ring
    Compliance Compliance FCC, CE approved
    Environmental Operating Temperature -20°C to 60°C
    Storage Temperature -30°C to 70°C
    Unit dimensions 4.9" x 7.7" x 1.11"
    Weight (Main Body) 1.20 lbs (Without Batteries)
    Mounting 1/4"-20 Mounting screw hole
    Protective screen Yes
    Available Battery Adapter Configurations User-Replaceable Battery Adapters
    "CM" - (Canon), "JM" - (JVC), "PM" - (Panasonic), "PV" - (Panasonic), "SB" - (Sony B series), "SL" - (Sony L series), "SM" - (Sony M series), "AB" - (Anton/Bauer), "VM" - (V-Mount)
