M-CT5 is a lightweight 5-inch 800 x 480 Portable Camera-Top LCD Field Monitor with HDMI that is perfect for photographers and videographers.


M-CT5

5" Portable Camera-Top Field Monitor

Owner's Manual (PDF)

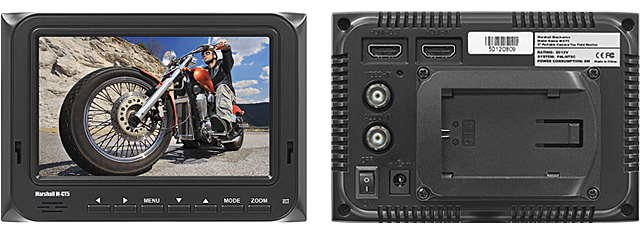

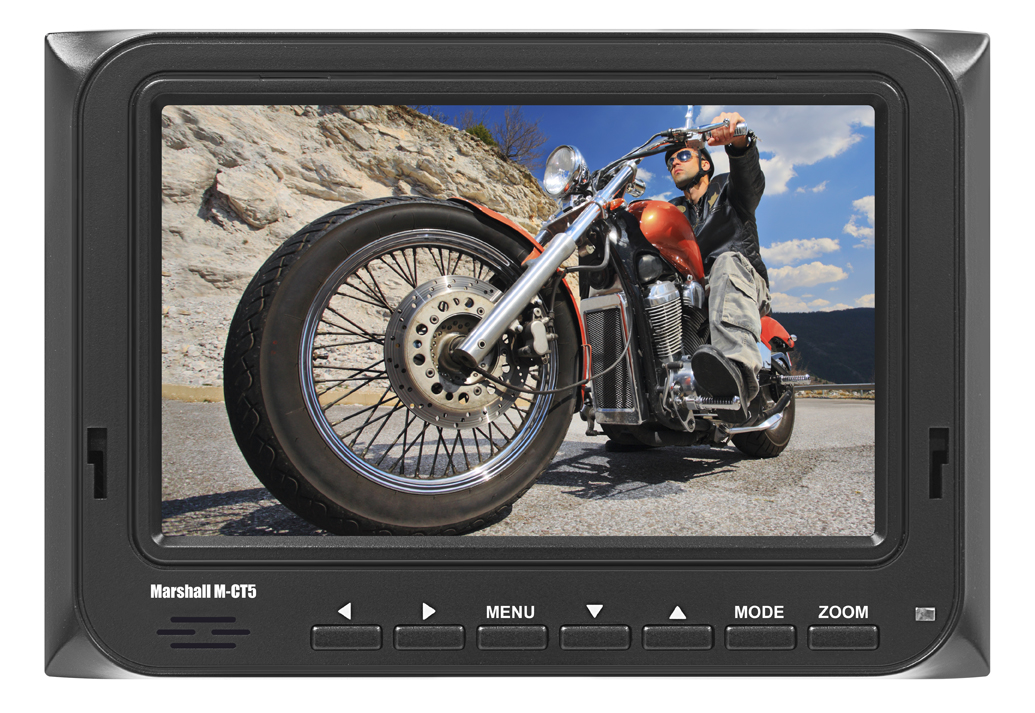

M-CT5 - 5 inch High Resolution Portable Camera-Top Field Monitor

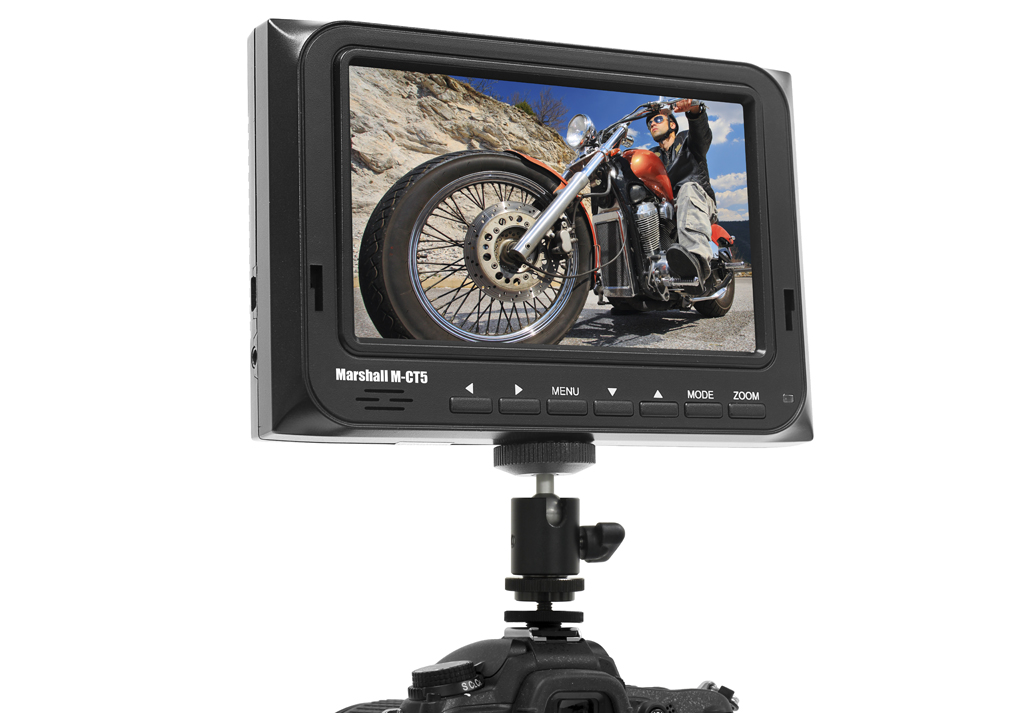

  • 5-inch LCD display attaches directly to DSLR or HD video cameras
  • A must-have tool for photographers and videographers
  • Focus clearly on shots and take the guesswork out of framing
  • Converts tiny built-in camera screen to easy-to-view display
  • Shoot hard-to-reach places without ladders, stools or hazardous climbing

  • The M-CT5 monitor kit provides a lightweight 5-inch 800 x 480 LCD monitor with HDMI that is perfect for photographers and videographers looking for a simple, inexpensive monitoring solution. This unit offers a composite video input and audio input, along with HDMI in and out.

    A variety of features include a 3.5mm stereo headphone jack, front speaker for audio monitoring, Auto Aspect Ratio Detect, Zoom, Image Flip/Flop and full Color Adjustment, and battery saver switch.

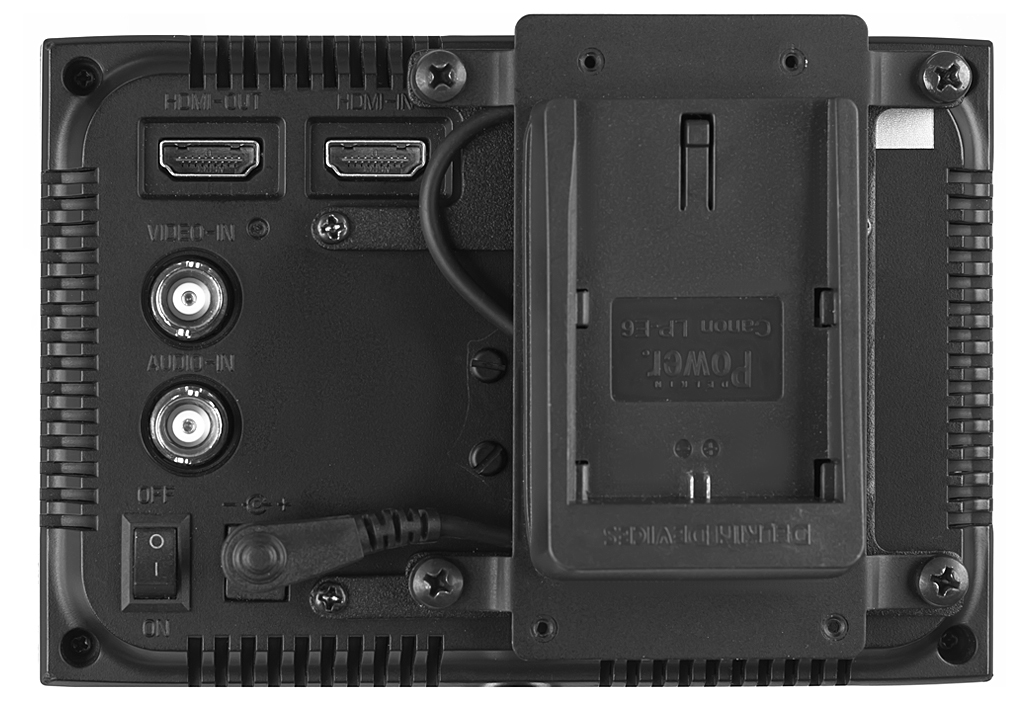

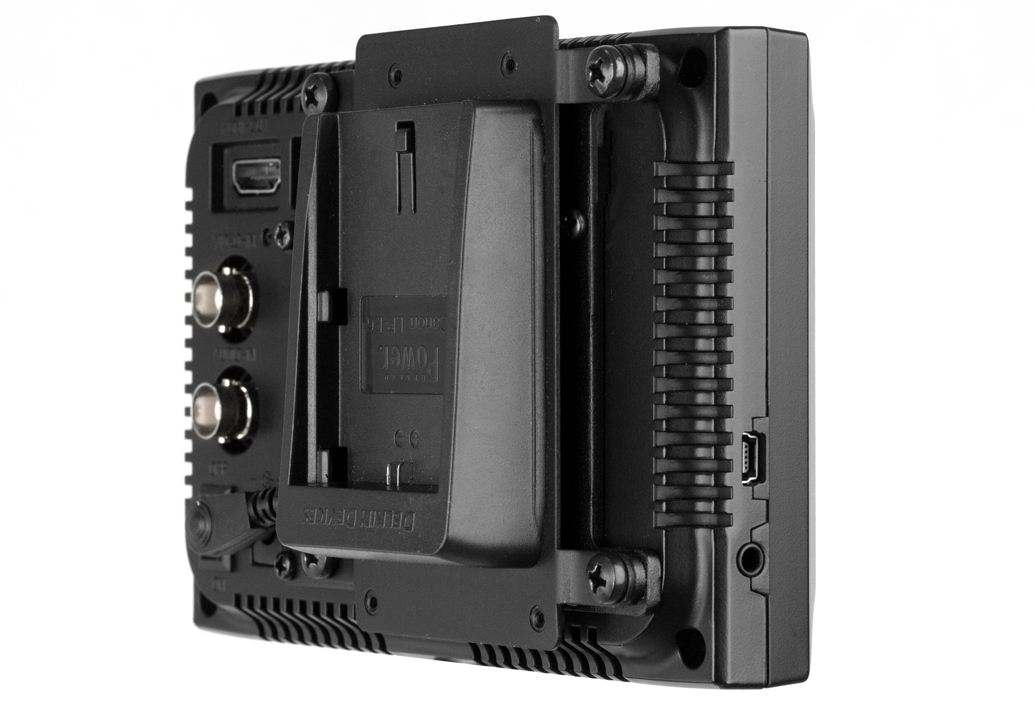

    Users also have the ability to power this monitor using a standard Canon LPE6 DSLR battery. This feature allows the monitor to be powered using an existing DSLR battery for mobile on-the-go monitoring. Accessories provided include a mini-HDMI to HDMI cable, standard HDMI cable, BNC to RCA connector, cigarette lighter adapter, AC/DC power supply, hot shoe camera mount adapter, battery plate, DSLR battery and battery charger.

    Accessories provided include a mini-HDMI to HDMI cable, standard HDMI cable, A/V cable, cigarette lighter adapter, AC/DC power supply, hot shoe camera mount adapter, remote, battery plate*, DSLR battery* and battery charger.*

    * Batteries and battery charger are generic and considered equivalent to original manufacturer's equipment.


    M-CT5 specifications
    Type TFT- LCD Color Monitor
    Resolution (Pixels) Up to 1920(H) x 1440(V)
    Pixels 800 x 480
    Aspect Ratio 16:9
    Brightness (cd/m²) 350
    Contrast Ratio 500:1
    Viewing Angle 75°/70° (L/R), 50°/70° (U/D)
    Audio Output 2W Speaker, 3.5mm Stereo Jack
    Input Signal HDMI, Video, Audio
    Signal Out HDMI (optional)
    Backlight LED
    Voltage 6V-24V
    Power Consumption 7W
    Dimensions 146mm(L) x 100mm(H) x 46mm(W)

    Included Accessories:

    • Standard Mini HDMI to HDMI cable
    • HDMI to HDMI cable
    • Hot shoe mount
    • LP-E6 Canon equivalent battery
    • Battery Charger
    • User manual

    Optional Accessories:

    • BNC to RCA adapter
    • V-PS12V-2A-R/A-L - 12V/2.0A US power adapter w/ R/A cable locking plug
    • BNC cable

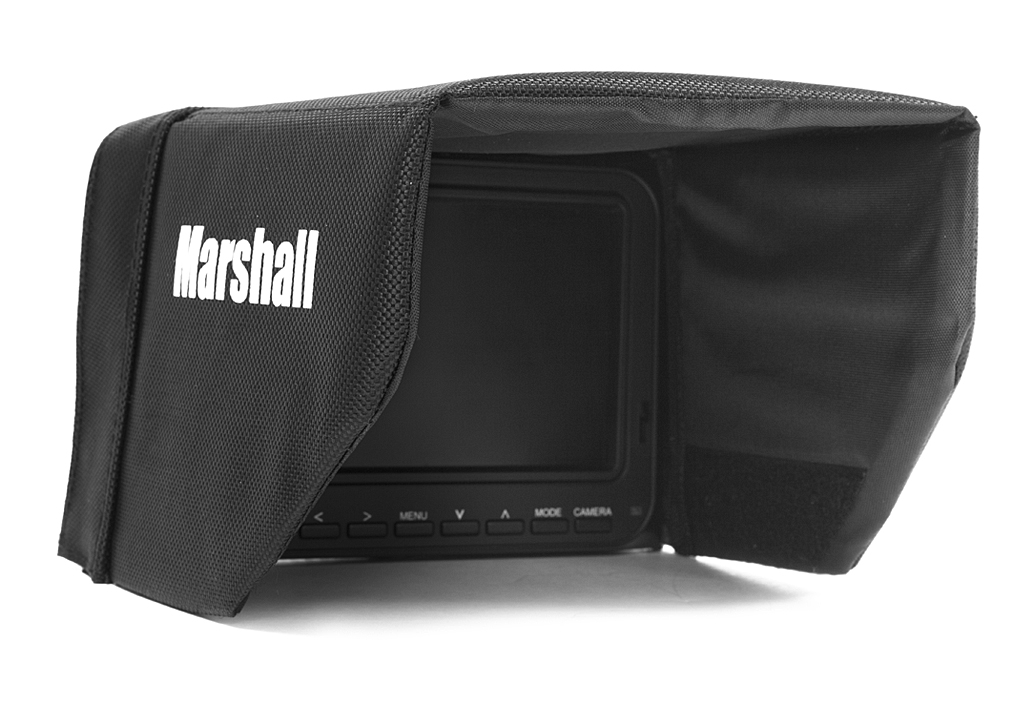

    • Sunhood
