Pro HD/4K Cameras

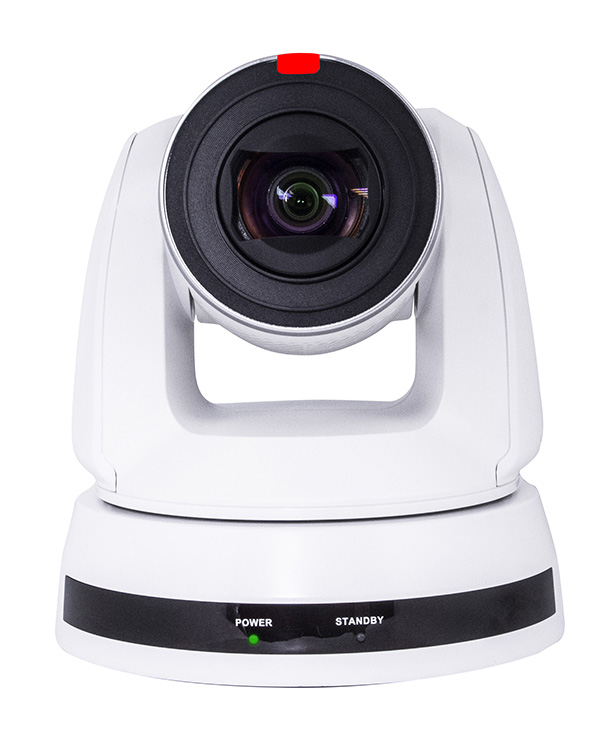

The Marshall CV630-IP PTZ Camera is a professional PTZ camera offering broadcast-quality video output over HDMI, 3GSDI, or Ethernet (H.265/H.264 streaming). Robust image settings and PTZ control can be adjusted over networked cable, RS-232, or RS-422 with support for common camera control protocols.


CV630-IP (Black)
CV630-IPW (White)

30X IP PTZ UHD Camera

Quick Setup of VS-PTC-200 controller with CV630-IP PTZ camera RS232 to CAT Cable Connectors RS-232/422 Wire Diagrams RS232 Command List IP Setup Instructions Wall Mount Installation Crestron Control Modules Extron Control Drivers Download Latest Firmware Video Management Software NDI HX Upgrade Instructions Download Images


The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.
V-R241-4Ks beautiful 24-inch UHD panel has a wide viewing angle and displays

High Performance Video Output

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

V-R241-4Ks beautiful 24-inch UHD panel has a wide viewing angle and displays

Versatile Camera Positioning

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

V-R241-4Ks beautiful 24-inch UHD panel has a wide viewing angle and displays

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embedable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

V-R241-4Ks beautiful 24-inch UHD panel has a wide viewing angle and displays

Flexible Control Options

The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.



Applications:

The CV630-IP is suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications
