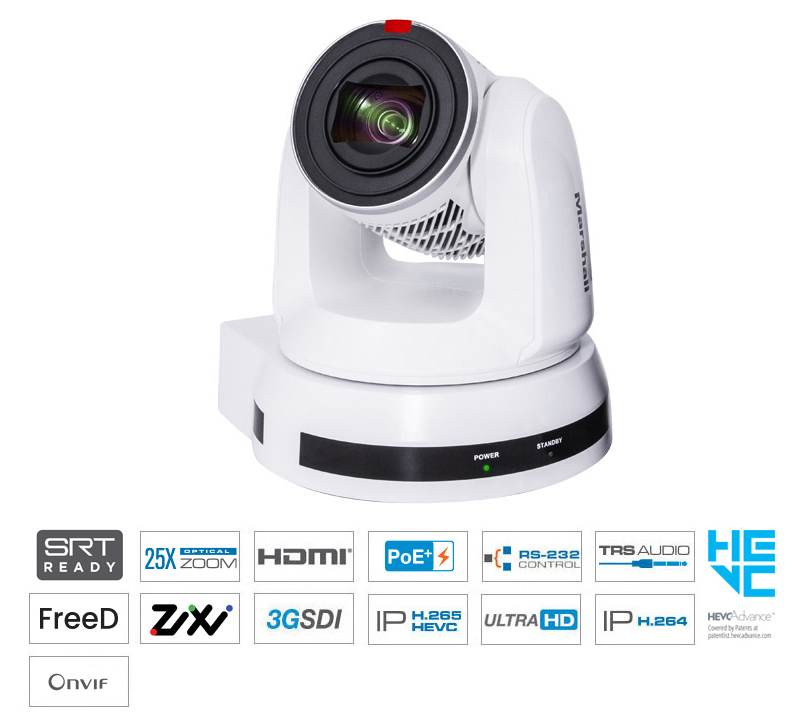

The Marshall CV630-IP PTZ Camera is a professional PTZ camera offering broadcast-quality video output over HDMI, 3GSDI, or Ethernet (H.265/H.264 streaming). Robust image settings and PTZ control can be adjusted over networked cable, RS-232, or RS-422 with support for common camera control protocols.


CV630-IP / CV630-IPW

30x UHD30 IP (HEVC) PTZ Camera

Spec Sheet Multiple Control Setup Illustration Quick IP Camera Setup Facebook Live Setup Download Manual Quick Setup of VS-PTC-200 controller with CV630-IP PTZ camera RS232 to CAT Cable Connectors RS-232/422 Wire Diagrams RS232/RS422 Command List Crestron IP Control Modules Extron Control Drivers Download Latest Firmware Video Management Software Marshall Q-SYS Packaged Installation OBS Studio Plugin & Dock Instructions Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Windows Marshall OBS Plugin and Dockable Controller Ver.2.0.8 Mac PC Windows Camera Control Software for USB & IP Mac iOS Camera Control Software for USB & IP CGI Command List Download ZIXI Firmware (only upload to camera if using Zixi platform) Download Images
The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.


High Performance Video Output

At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.

CV630-IP is a versatile camera with a 30x optical zoom

Versatile Camera Positioning

The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.

CV630-IP has several streaming outputs

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

VS-PTC-IP is a PTZ camera controller for CV630-IP camera

Flexible Control Options

The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.

Additionally, the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control.

  • 8MP 1/2.5" sensor
  • 30x Optical Zoom (4.6~135mm) near 70-degrees AOV at widest
  • 3GSDI, HDMI, and IP simultaneous outputs
  • Simultaneous pan, tilt, and zoom
  • H.265 (HEVC) and H.264 (triple-stream) networked outputs
  • IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
  • 3840x2160p, 1920x1080p, and 1280x720p
  • Stereo audio input (mic or line level) embedding
  • PoE+ (IEEE802.3at), video, and control over a single Ethernet cable
  • 340° pan, 120° tilt, and 30X zoom range
  • Front tally light
  • Free-D protocol support and CGI protocol commands


Applications:

The CV630-IP is suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications
CV630-IP / CV630-IPW Specifications
Sensor 1/2.5" 8MP CMOS
Lens 30x optical zoom
Angle of view (H) 68~3.5°
Minimum working distance 1.5m (Tele/Wide)
Motor
Pan   +/-170° (Max speed: 100°/sec.)
Tilt   -30 °~+90° (Max speed: 100°/sec.)
Minimum °/step 0.062° ±5%
Interface
Power 1. Connector: EIAJ-04
12 V (10.8 to 13.0 V DC)
2. POE+ (802.3at)
Output HDMI/3G-SDI/Ethernet
Control RS-232/RS-422/Ethernet
OSD English/Chinese
Ouput resolution "Resultion : 4K*/1080p/720p
Frame Rate : 59.94/50/29.97/25
*4K 29.97/25"
Video Compression HEVC/H.264
Multiple Video Stream Main :HEVC 4K 30fps
Second :H.264 1080p 30fps
Third : H.264 640x360 30fps
Audio in x1
Audio Compression Format AAC/G.711
IR Select Switch x1
Output Switch x1
Infrared signal output Yes
Preset groups 256
Function
Electronic shutter 1/1 to 1/10,000 s
Flip / Mirror Yes
White balance Auto / Manual
Gain Auto / Manual
AE control Auto / Manual
Brightness control Yes
Backlight compensation On / Off
Flicker cancel Sync with output mode
Focusing system Auto, One-push AF, Manual
Noise Reduction Yes
Protocols VISCA, PELCO D, VISCAIP, ONVIF
Storage temperature –20°C to +60°C (-4°F to 140°F)
Operating temperature 0°C to 40°C (32°F to 104°F)
Power consumption <30W
Form Factor
Color Black/White
Dimension(WxHxD) 174x190x187 mm
Weight 2.0Kg
