The Marshall CV226 All-Weather HD Lipstick Camera captures crisp HD color video with professional adjustment and control in a compact cylindrical body. Suitable for indoor and outdoor use, the CV226 can withstand dust, dirt, rain, mud, and snow with exceptional low-light performance for professional sports production, live events, reality TV, and more.


Marshall CV226

All-Weather HD Lipstick Camera

Download Images

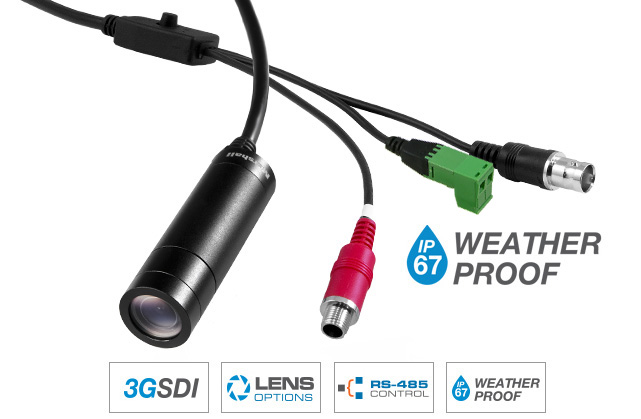

The Marshall CV226 All-Weather Lipstick Camera captures crisp HD color video with professional adjustment and control in a compact lipstick shaped body only 19.5mm in diameter and 62.5mm long. The CV226 is built for rugged outdoor or dirty environments where dust, dirt, rain, mud, or snow become a factor.


CV226 Versatile Mounting Solutions

Miniature Camera Size

The Marshall CV226 can be positioned in very discreet locations with the ability to withstand dirty, dusty, and wet environments. Despite its compact form factor, the CV226 produces reliable crystal clear video over full-size 3G/HD-SDI (BNC) in Progressive or Interlaced resolutions up to 1920x1080. As shown with the optional CVM-6 accessory mount.

CV226 Improved Cable Durability

Improved Sensors and Design

The Marshall CV226 utilizes the latest Marshall sensor and processor technology with a step-up in video performance and very low noise threshold, even in low-light conditions. Additionally, the CV226 contains a more durable and flexible RG6 coaxial breakout cable to withstand heavy use and bend rotation.

CV226 on Lipstick Mount Holder

Versatile Placement & Mounting

The Marshall CV226 includes a standard 1/4"-20 mount socket for use with tripods, gooseneck, and other camera mounting hardware. For enhanced flexibility, combine with the Marshall CVM-6 Adhesive Camera Mount Kit and lipstick clip.

CV226 Flexible Control Options

Flexible Control & Framerate Options

Easily select between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps at 1080p, 1080i, and 720p resolutions. For remote matching and adjustment, the CV226 supports RS485 Visca control, allowing precision picture adjustments to be performed from control rooms, OB vans, and or broadcast trucks.

  • Full-sized 3G/HDSDI (BNC) output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • 10-foot (3 meter) breakout cable with BNC (3GSDI), RS485 remote adjust, and locking 12V power
  • Interchangeable M12 lens with IP67 cap includes stock 3.6mm lens (72°H. AOV)
  • IP67-rated weatherproof housing; submerge in water up to 10-feet for several hours
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjustable through RS485 (Visca) or OSD menu joystick
  • CV-RCP-V2 Touchscreen RCP compatible and free Camera Control Software option
  • Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more


Applications:

The CV226 is suitable for use in indoor and outdoor applications including live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and more

Compatible HD Prime Lens Options (M12):

Part Number Description & Horizontal AOV
CV-4702.3-3MP 2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
CV-4702.8-3MP-IR 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100°
CV-4703.6-3MP 3.6mm, F2.0 3MP M12 lens (stock); Horiz AOV = 72°
CV-4706-3MP-IR 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48°
CV-4708.0-3MP 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
CV-4712.0-3MP 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33°
CV-4716.0-2MP 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25°


Compatible 5MP Prime Lens Options (M12):

Part Number Description & Horizontal AOV
V-553.9-5MP-VIS-IR M12 3.9mm F2.0 5MP M12 Lens - 80° (1/3"), 96° (1/2.5"), 125° (1/1.7")
V-555.0-5MP-VIS-IR M12 5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7")
V-557.6-5MP-VIS-IR M12 7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7")


Compatible HD Varifocal Lens Options (M12):

Part Number Description & Horizontal AOV
CV-2812-3MP 2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 108~30°
CV-0622-5MP 6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16°
*Horizontal Angle-of-View (AOV) in degrees are approximate and vary according to exact sensor size and design.
**If camera model contains IP67 weatherproof cap, there may be some limitation as to which lenses will allow cap to fit back on camera.
CV226 specifications
Imaging Sensor 2.5 Megapixel 1/2.86" sensor (4:2:2 color)
Total Pixels 1981 (H) x 1288 (V) / 2,551,528 (Pixels)
Active Pixels 1944 (H) x 1212 (V) / 2,356,128 (Pixels)
Pixel Size 2.75 (H) μm x 3,222 (V) μm
Scanning System 16:9 Progressive Scan
Video Output 3G/HD-SDI
Resolutions-Framerates 1920x1080p-60/59/50/30/29/25/24/23.98, 1920x1080i-60/59/50, 1280x720p-60/59/50/30/29/25/
Horizontal TV More than 1000 TVL
Lens Mount 3.6mm F2.0 M12 Mount - interchangeable w/o cap
Electric Shutter Manual (1/30 or 1/25~1/30,000 sec)
Auto White Balance AUTO/AUTO EXT/ PRESET / Manual (Red-Gain, Blue-Gain)
Mirror Image Mirror, Horizontal or Vertical Flip
Operating / Storage Temp -10°C~50°C (-20 °F~70°F)
Operating Humidity IP67 rated; ability to submerge in water up to 45 minutes at a time
Power Supply 12V DC 1.0A
Power 12V DC (7VDC to 15VDC) Max 6W
Dimensions 19.5 (W) x 19.5 (H) x 62.5 (D)mm
Weight Approx. 195g/0.42Lbs with cable
Mini Camera Stands and Mounts accessories

1/4"-20 Mounts

1/4"-20 Compact Camera Stands & Mounts, Clamps, Articulating arms and more...

Read more
Touchscreen RCP Camera Control

CV-RCP-V2

Touchscreen RCP Camera Control
Remote adjust & match cameras via RS485

Read more
Touchscreen RCP Camera Control

CV-USB-RS485

USB to RS485/422 Adapter for use with Marshall Windows Camera Control Software.

Call for Price


Full-HD IP67 Lipstick Camera

Camera Control Application

  1. Download Camera Control Software HERE
  2. Use USB to RS485/RS422 Converter (CV-USB-RS485)
  3. Use cat5 or 24AWG twisted-pair wire (sold separately)
  4. Connect cable from RS485(+) terminal on Camera to T/R (+) on USB/RS485 converter
  5. Connect cable from RS485(-) terminal on Camera to T/R (-) on USB/RS485 converter
  6. Plug USB cable from USB/RS485 converter into USB port on Laptop or Computer (note ComPort#)
  7. Open up CamControl Program and match Serial Port to corresponding ComPort# used
  8. Select Baudrate in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > BAUDRATE
  9. Select Camera Address in CamControl Program and match it in Camera OSD Menu under DISPLAY CONTROL > CAM ID
  10. Select Open in CamControl Program
  11. Test connection by pushing MENU in lower right of CamControl Program - OSD Menu should come up on video signal
  12. Commands can also be sent without using OSD Menu
