BNC Series
Soldering Plugs

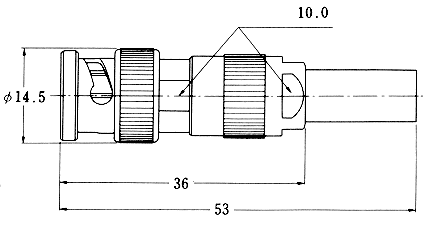

BNC777-P
Part No. |
A mm |
Cable |
Remark |
BNC259-P2 |
42 |
RG-58/U |
|
BNC777-P |
36 |
3C-2V, 5C-2V |
75W Type |
Crimping Plugs
BNC753-P
Part No. |
A mm |
Cable |
Crimp Tool |
Remark |
BNC549-P |
31 |
RG-58/U |
DCC-T0097/T0098 |
|
BNC753-P |
31 |
3C-2V |
CWB-T0105/T0106 |
75W Type |
BNC755-P |
33 |
5C-2V |
Crimp Tool
CWB-T0105/T0106
Self Terminating Receptacles
Feature
- These receptacles hold termination and switch internally.
- When the plug is removed, the receptacle termination closes to maintain
the internal circuit electrical current automatically.
- When the plug is inserted, the receptacle termination opens allowing
internal circuit to be terminated by external circuit.
- These receptacles also maintain internal circuit protection.
Specifications
Withstanding voltage: AC300V (rms)
Insulation resistance: DC100V, 1000MW max.
Contact resistance: DC3V 1A max. 3MW max.
Built in resistance: 75W 1/8W.
Front Mount Receptacle
BNC312-TBR

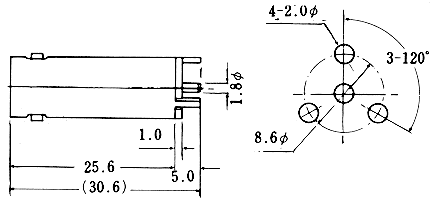

Print Circuit Receptacle
BNC315-TR
|
